Nsi L20N-38 2/0 Awg Copper Compression Lug 3/8 inches Bolt Size w/1 inches Spacing

Product Description

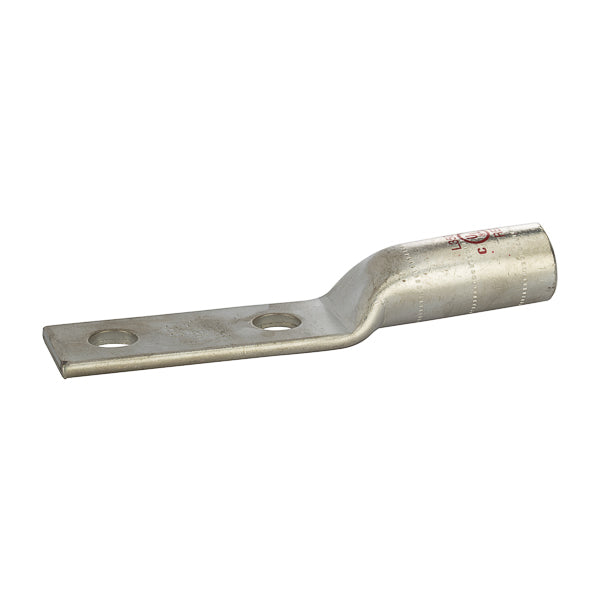

The NSI L20N-38 is a 2/0 AWG copper compression lug with a 3/8" bolt size and 1" spacing. This lug features a 2-hole stud and a long barrel. It is tin plated to provide corrosion resistance and low contact resistance and marked with die index and color coded.

• UL Listed
• Allows easy inspection of the termination to assure complete cable insertion
• Produced from high conductivity copper tubing

Product Highlights

The NSI L20N-38 copper compression lug is ideal for electrical connections requiring secure and corrosion-resistant termination.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: L20N-38

Technical Specifications

• Material: Tin Plated Copper
• Conductor Size: 2/0 AWG
• Stud Size: 3/8 in
• Barrel Type: Long
• Voltage Rating: 600 V
• Temperature Rating: 90 deg C
• Mounting Hole Size: 3/8 in
• Overall Length: 3.43 in
• Type: 2-Hole
• Series: LN Series
• Conductor Type: Stranded
• Barrel Size: 0.44 in ID x 0.56 in OD x 1.38 in L
• Tongue Size: 1.81 in L x 0.81 in W x 0.12 in THK
• UL Listing: Yes
• Number of Ports: 1
• Termination Type: Compression
• Contact Material: Copper
