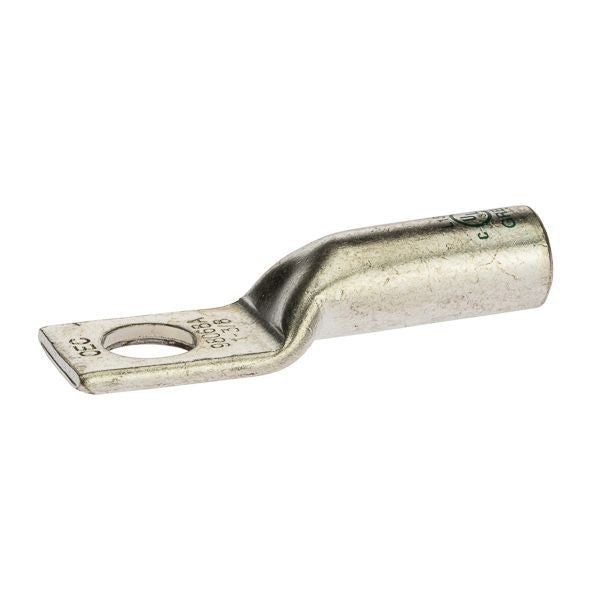

Nsi L138 L Series Compression Lug 1 Awg 3/8 Bolt Size

Product Description

The NSI L138 L Series compression lug terminates high-current wires safely. Constructed from high conductivity copper tubing and tin plated to provide corrosion resistance and low contact resistance. This lug is marked with die index and color coded for ease of use.

• Produced from high conductivity copper tubing
• Tin plated to provide corrosion and low contact resistance
• Marked with die index and color coded

Product Highlights

The NSI L138 compression lug is suitable for terminate, splice and tap power connector applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: L138
• Country of Origin: IN

Technical Specifications

• Brand: NSI Industries
• Part Number: L138
• Material: Copper
• Finish: Tin Plated
• GTIN: 662381034052
• UPC: 662381034052
• EAN: 662381034052
• UNSPSC: 39121405
• Origin Country: IN
• Certifications: cULus
• Ul Standard: UL 486A-486B, UL 467 (8 AWG – 3/0 AWG)
• Barrel Inside Diameter: 0.36
• Barrel Outside Diameter: 0.47
• Ul File No: E155027
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded
• Tang Thickness: 0.11
• Tang Length: 0.81
• Temp Rating: 90C
• Hole Count: 1
• Wire Range: 1 AWG
• Assortment: Copper Compression Terminations
• Expanded Wire Range: 1 AWG – 6 AWG
• Die Color Code: Green
• Mounting Bolt Size: 3/8
• Barrel Length: 1
• Series: L Series
• Stud Size: 3/8 in
• Temperature Rating: 90 deg C
• Type: 1-Hole
• Voltage Rating: 600 VAC
• Conductor Size: 1 AWG
• Application: Terminate, Splice and Tap Power Connector Applications
• Tongue Size: 0.811 in L x 0.673 in W x 0.106 in THK
• Overall Length: 1.1 in
• Mounting Hole Size: 3/8 in
• Barrel Size: 0.358 in ID x 0.469 in OD x 1.102 in L
• Color: Green
