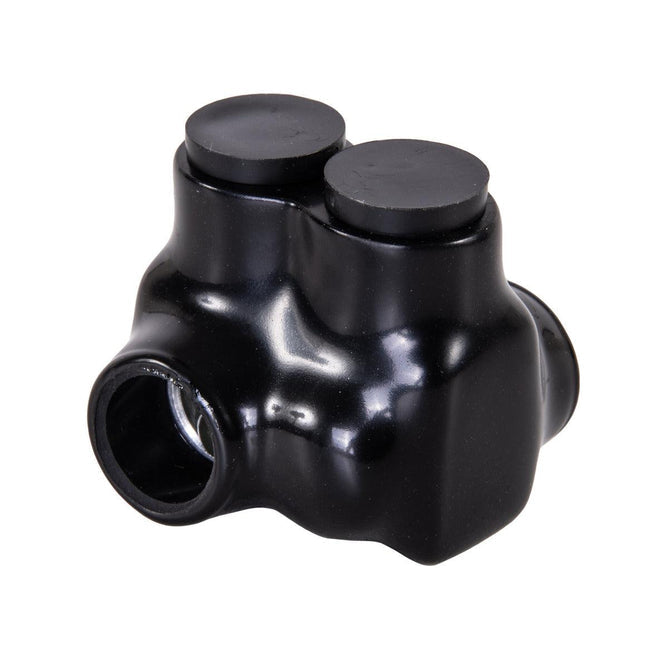

NSI ITO-1/0 ITO Offset Double Sided Entry Insulated Multi-Tap Connector 600 VAC 1/0-14 AWG Copper/Aluminum

Product Description

The NSI ITO-1/0 is an offset double-sided entry insulated multi-tap connector designed for use with copper and aluminum conductors ranging from fourteen to one aught AWG. This connector meets the safety requirements specified by UL 486B and is ideal for wire termination.

• Insulated tap connectors suitable for connecting two wires
• Removable access plugs close unused entry ports
• Dual rated for copper and aluminum cables

Product Highlights

This connector is designed for easy and professional connections in various wiring applications. Its robust construction ensures high performance under challenging conditions.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: ITO-1/0

Technical Specifications

• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Dimensions: 1.62 inches length x 1.75 inches width x 1.75 inches height
• Material: Plastisol
• Conductor Type: Aluminum/Copper
• Conductor Sizes Supported: 14 to 1/0 AWG
• Installation Torque: 35 lb-in
• Number of Ports: 2
