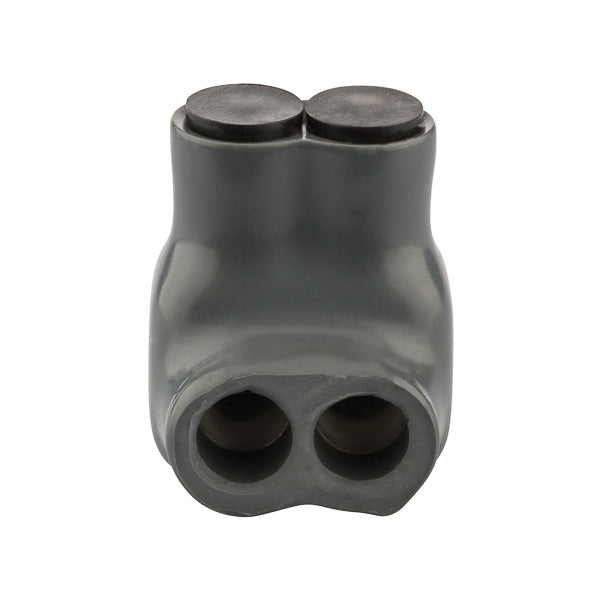

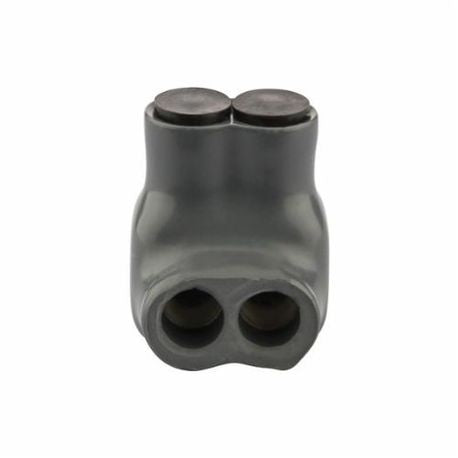

NSI ITG-6 ITG Insulated Multi-Tap Connector 600 VAC 1 each

Product Description

The NSI ITG-6 is an insulated multi-tap connector suitable for copper conductors, with a voltage rating of six hundred volts alternating current (VAC). This product allows for the connection and termination of fine stranded, flexible, and ultra-flexible copper cables, making it ideal for maintenance and repair applications.

• Designed for conductors ranging from fourteen to six American Wire Gauge (AWG).
• Features a durable plastisol insulation for mechanical protection.
• Operates effectively in temperatures between minus forty-five and ninety degrees Celsius.

Product Highlights

This connector facilitates easy connections and disconnections, ensuring reliable performance in various wiring applications.

Product Information

Standard Information

• Brand: NSI
• MPN: ITG-6

Technical Specifications

• Conductor Size: 14 to 6 AWG (Class B, C, D) / 14 to 6 AWG (Class K, M, I)
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Material: Plastisol
• Dimensions: 1.13 inches L x 1.24 inches W x 1.37 inches H
• Series: ITG
• Conductor Type: Copper
• Specifications: 1 Pole, 2 Conductor, B, C, D, K, M, I Wire Type, 1/8 inch Hex
