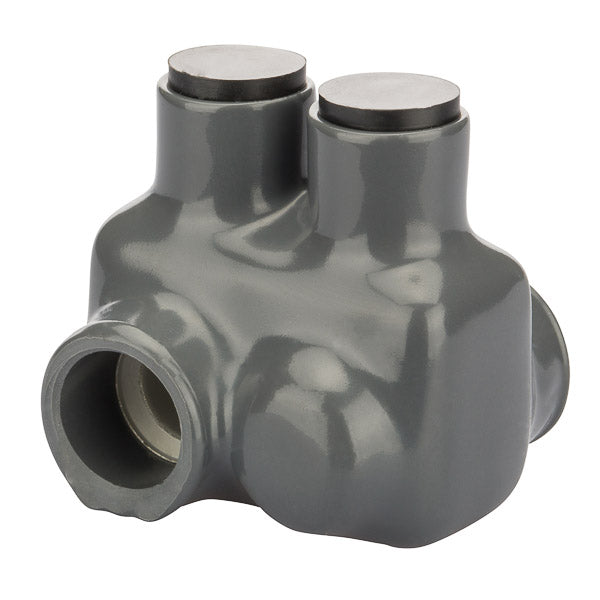

NSI ITG-3/0 ITG Insulated Multi-Tap Connector 4 to 3/0 AWG (Class B, C, D)/2 to 2/0 AWG (Class K, M, I)

Product Description

The NSI ITG-3/0 is an insulated multi-tap connector designed for connecting copper conductors ranging from four to three-aught AWG (Class B, C, D) and two to two-aught AWG (Class K, M, I). This connector is suitable for motor applications and features an integral sleeve that protects fine strands of cable while reducing stress on conductors. It allows users to connect and disconnect cables easily.

• Insulated with dielectric strength plastisol for tough mechanical protection.
• Removable access plugs over the hex screws protect against contamination.
• Reusable and eliminates the need for cover and taping.

Product Highlights

Use this connector for secure and reliable electrical connections in various applications, especially where maintenance or repairs are needed.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Conductor Size: 4 to 3/0 AWG (Class B, C, D)/2 to 2/0 AWG (Class K, M, I)
• Material: Plastisol
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Dimensions: 1.85 in L x 1.6 in W x 1.81 in H
• Conductor Type: Copper
• Specifications: 1 Pole, 2 Conductors, B, C, D, K, M, I Wire Type, 3/16 in Hex
• Resistance: Abrasion, Chemical
