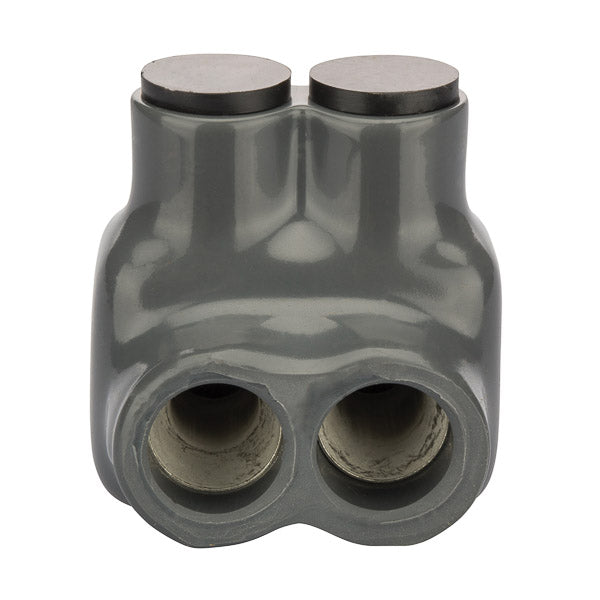

NSI ITG-1 - NSI Polaris ITG-1 ITG Insulated Multi-Tap Connector, 10 to 1 AWG (Class B, C, D)/10 to 2 AWG (Class K, M, I) Copper Conductor, Plastisol

Product Description

The NSI ITG-1 is a multi-tap insulated connector designed for connecting flexible copper conductors ranging from ten to one gauge and ten to two gauge. It features a durable plastisol finish for mechanical protection. This product is essential for motor applications and offers a reliable solution for wire connections.

• Suitable for fine stranded and ultra-flexible copper cables
• Operates within a temperature range of negative forty-five to ninety degrees Celsius
• Rated for six hundred volts AC

Product Highlights

The NSI ITG-1 connector simplifies maintenance and repair tasks by allowing for quick connects and disconnects while protecting fine strands from stress.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Brand: NSI

Technical Specifications

• Conductor Size: 10 to 1 AWG (Class B, C, D) / 10 to 2 AWG (Class K, M, I)
• Material: Plastisol
• Voltage Rating: 600 VAC
• Dimensions: 1.6 in L x 1.55 in W x 1.75 in H
• Temperature Rating: -45 to 90 deg C
• Conductor Type: Copper
• Specifications: 1 Pole, 2 Conductor, B, C, D, K, M, I Wire Type, 3/16 in Hex
