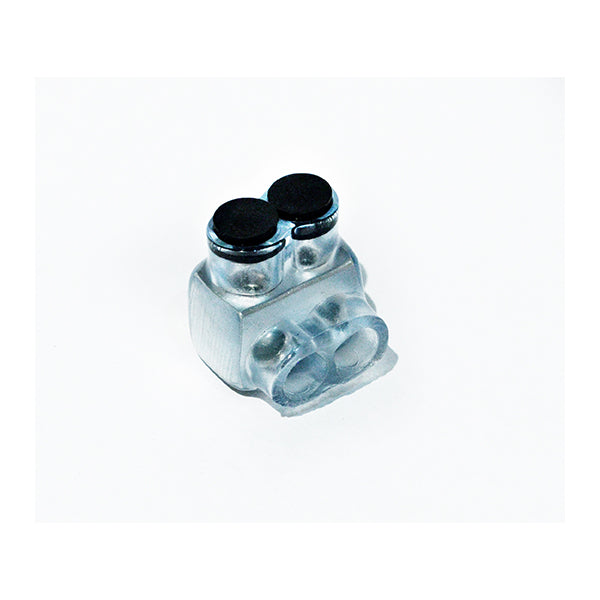

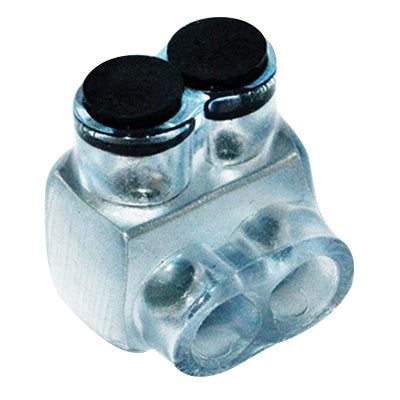

NSI IT-4C IT Series Insulated Tap Connector 600 Volt (2-Port 14-4 AWG)

Product Description

The NSI IT-4C is an insulated tap connector designed for dual-rated applications. This connector accommodates two conductors ranging from fourteen to four AWG, making it suitable for various wiring needs. It features a single sided entry and is made from durable plastisol, ensuring reliable performance under conditions rated up to six hundred volts.

• Dual-rated for copper and aluminum conductors
• Temperature rated for ninety degrees Celsius
• Compact dimensions measuring one point twelve inches in length and one point eighteen inches in width

Product Highlights

This connector is ideal for wire terminations in dry locations and is designed for easy installation with a slotted hex tool. It is also cULus listed for added assurance of its quality.

Product Information

Standard Information

• Manufacturer: NSI
• Part Number: IT-4C

Technical Specifications

• Conductor Size: 14 to 4 AWG
• Voltage Rating: 600 V
• Temperature Rating: 90 deg C
• Material: Plastisol
• Dimensions: 1.12 in L x 1.18 in W x 1.38 in H
• Number of Ports: 2
• Type: Dual Rated Single Sided Entry
• Installation Torque: 45 lb-inches
