NSI IT-350 IT Series Double Sided Entry Insulated Multi-Tap Connector, 6 AWG to 350 kcmil Aluminum/Copper Conductor, Plastisol

Product Description

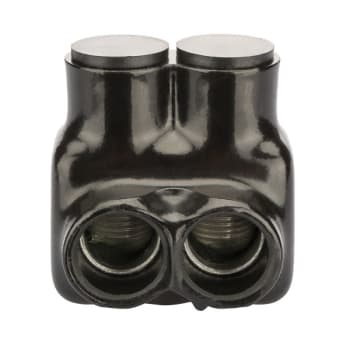

The NSI Polaris IT-350 is a reliable insulated multi-tap connector. It connects 6 AWG to 350 kcmil aluminum or copper conductors. This connector features dual-sided cable entry for easy installation.

• Compatible with aluminum and copper cables
• Rated for voltages up to 600 volts
• Made from durable plastisol material

Product Highlights

This product is engineered for in-line splicing and wire terminations. It contains removable access plugs for unutilized entry ports. This connector is not suitable for fine-stranded wire.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries
• Part Number: IT-350

Technical Specifications

• Conductor Size: 350 MCM - 6 AWG
• Dimensions: 2.47 inches Length x 2.5 inches Width x 2.44 inches Height
• Temperature Rating: -45 to 90 degrees Celsius
• Voltage Rating: 600 VAC
• Material: Plastisol
• Number of Ports: 2
• Installation Torque: 400 lb-Inch
• Standards: UL 486B Listed, cULus Certified
