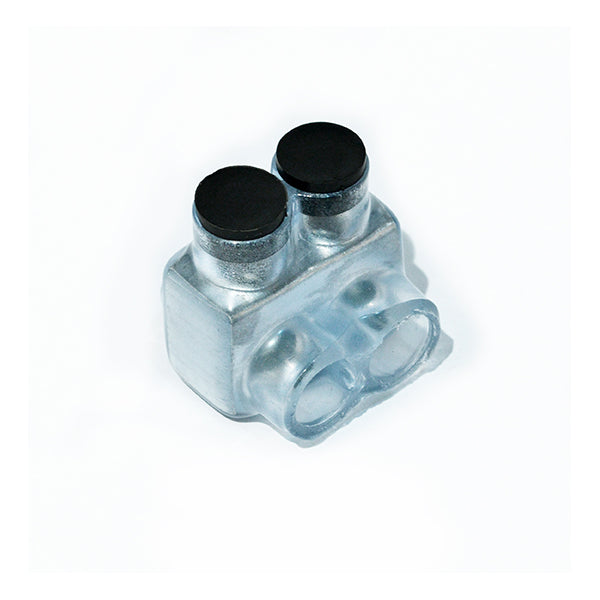

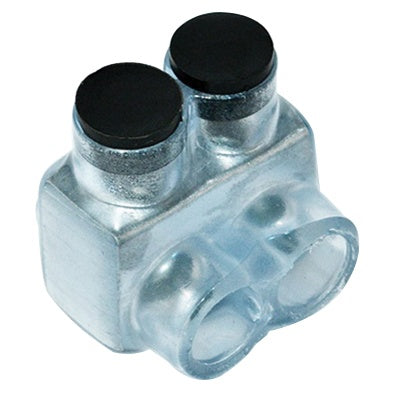

NSI IT-1/0C IT Series Dual Rated Single Sided Entry Pre-Insulated Connector

Product Description

The NSI IT-1/0C is a dual-rated, single-sided entry pre-insulated connector designed for copper and aluminum conductors ranging from fourteen to one aught AWG. It can handle voltages up to six hundred volts, making it suitable for various electrical applications.

• Suitable for connecting two wires
• Handles conductor sizes from 14 to 1/0 AWG
• Rated for temperatures up to ninety degrees Celsius

Product Highlights

This pre-insulated connector features a hex size of three-sixteenths of an inch and utilizes plastisol material for insulation. Its design ensures reliable performance in dry locations.

Product Information

Standard Information

• Manufacturer: NSI
• MPN: IT-1/0C

Technical Specifications

• Dimensions: 1.62 inches L x 1.62 inches W x 1.75 inches H
• Voltage Rating: 600 V
• Temperature Rating: 90 degrees C
• Conductor Size: 14 to 1/0 AWG
• Material: Plastisol
• Conductor Type: Copper/Aluminum
• Installation Torque: 180 lb-Inch
• Number of Ports: 2
