NSI ISW-4 Insulated Connector 600 VAC (Each)

Product Description

The NSI ISW-4 Insulated Connector is designed for use with 4 to 6 AWG conductors. It has a voltage rating of 600 VAC and features a torque of 45 inch-pounds. The connector is suitable for both indoor and outdoor applications, and it provides a secure connection without the need for additional taping or heat shrink. This connector can operate effectively in temperatures ranging from negative forty-five to ninety degrees Celsius.

• Compatible with 4 to 6 AWG conductors
• Rated for 600 VAC and 45 inch-pound torque
• Temperature range of -45 to 90 degrees Celsius

Product Highlights

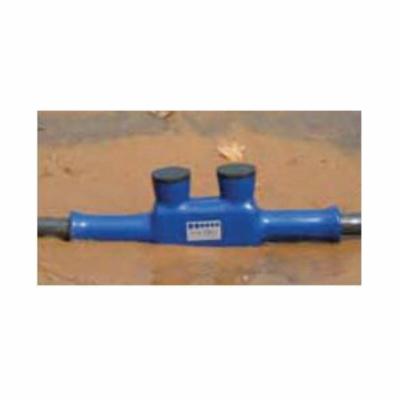

This connector features high strength dielectric plastisol insulation and is molded for a precise fit, allowing for direct burial connections. Removable access plugs over the hex screws facilitate easy adjustments.

Product Information

Standard Information

• Brand: NSI
• MPN: ISW-4

Technical Specifications

• Dimensions: 6.375 in L x 0.813 in W x 1.5 in H
• Series: ISW
• Engineering Specifications: 45 in-lb Torque, Slotted Hex, 13/16 in L Strip, 0.244 to 0.412 in Dia Insulation Wire
• Temperature Rating: -45 to 90 deg C
• Voltage Rating: 600 VAC
• Conductor Size: 4 to 6 AWG
• Color: Blue
