NSI ISR-250C NSI Polaris Vision Tap ISR-250C 600V (Each)

Product Description

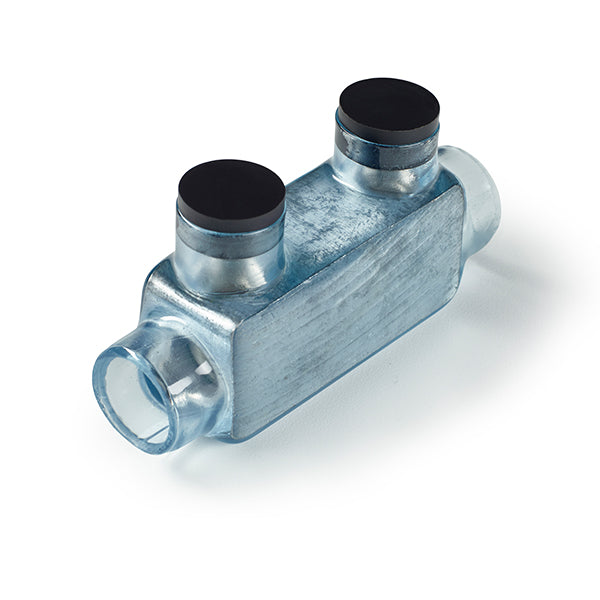

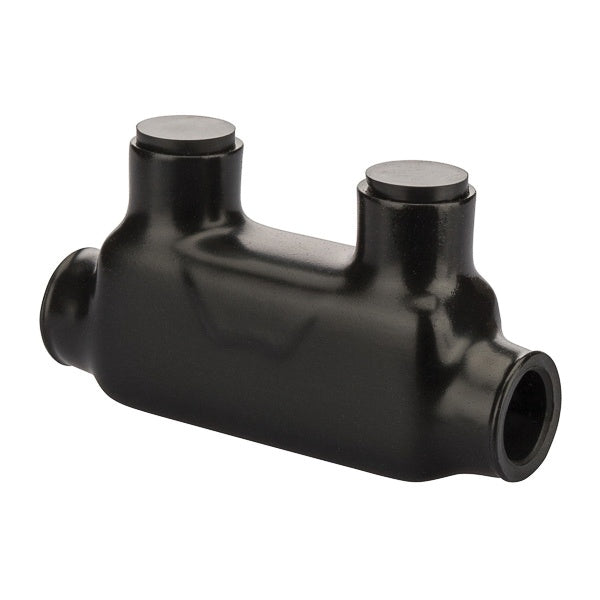

The NSI Polaris Vision Tap ISR-250C is a pre-insulated connector with a voltage rating of six hundred volts. It is designed for dual-rated splicing and reduction, accommodating conductor sizes from six AWG to two hundred fifty kcmil. This connector supports copper and aluminum wires. The product is suitable for dry locations, providing reliable wire connection and termination.

• Supports conductor sizes from 6 AWG to 250 kcmil
• Voltage rating of 600 V
• Constructed from durable plastisol material

Product Highlights

The Polaris Vision Tap is ideal for connecting wires in electrical applications, ensuring secure connections with resistance to abrasion and chemicals.

Product Information

Standard Information

• Manufacturer: NSI
• Part Number: ISR-250C

Technical Specifications

• Type: Dual Rated Splicer/Reducer
• Voltage Rating: 600 V
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Copper/Aluminum
• Dimensions: 4 in L x 1.19 in W x 1.9 in H
• Temperature Rating: 90 deg C
• Material: Plastisol
• Torque Rating: 360 lb-Inch
