Product Description

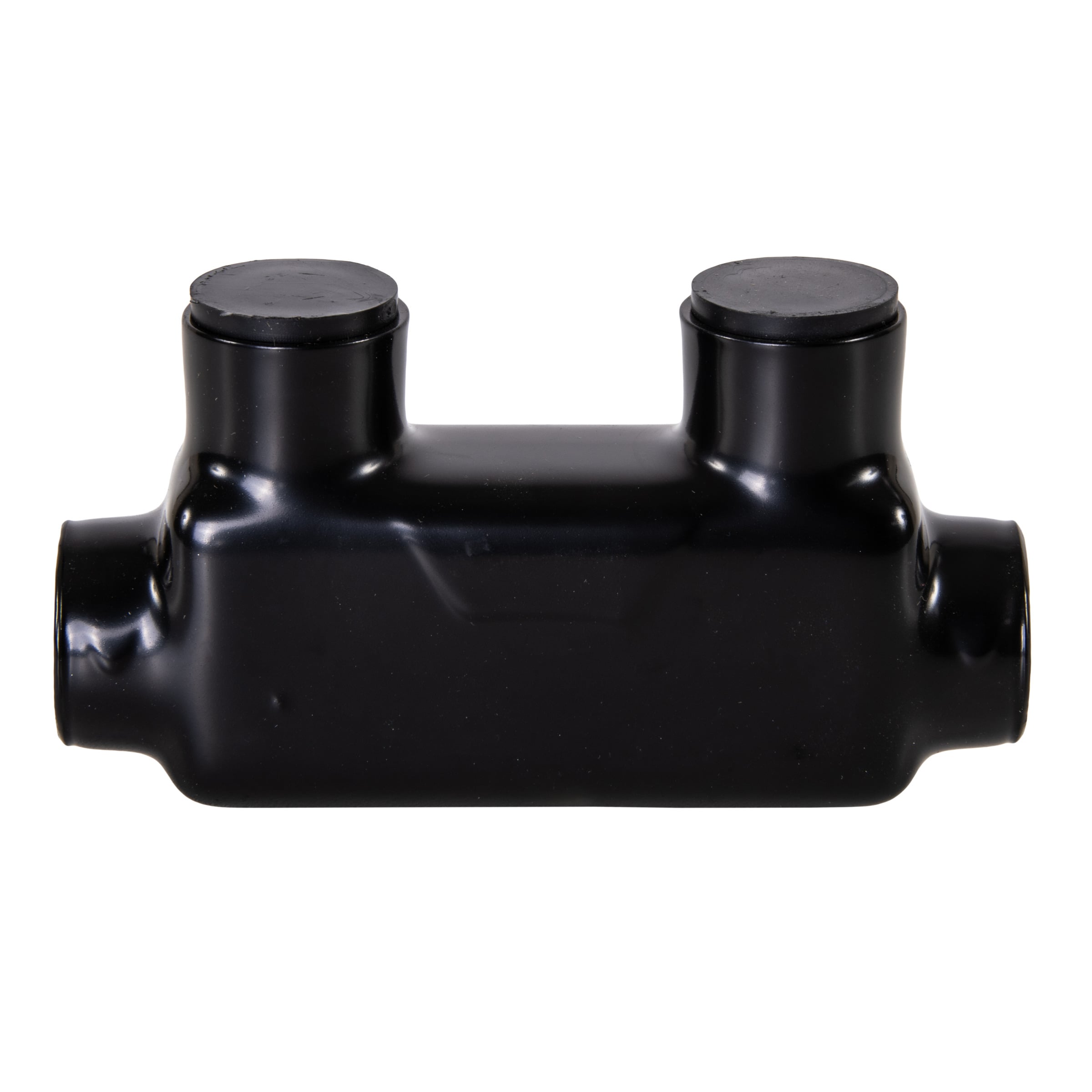

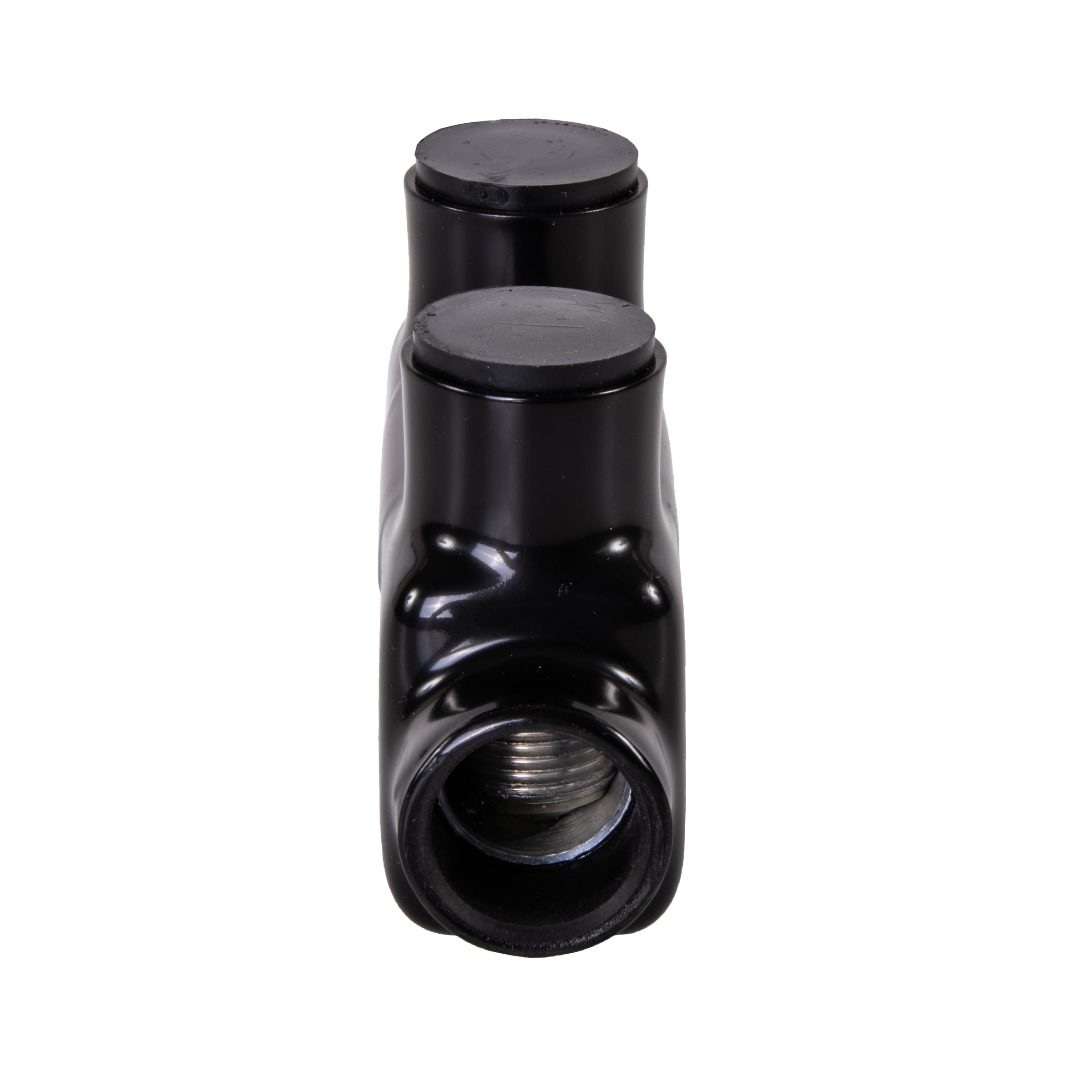

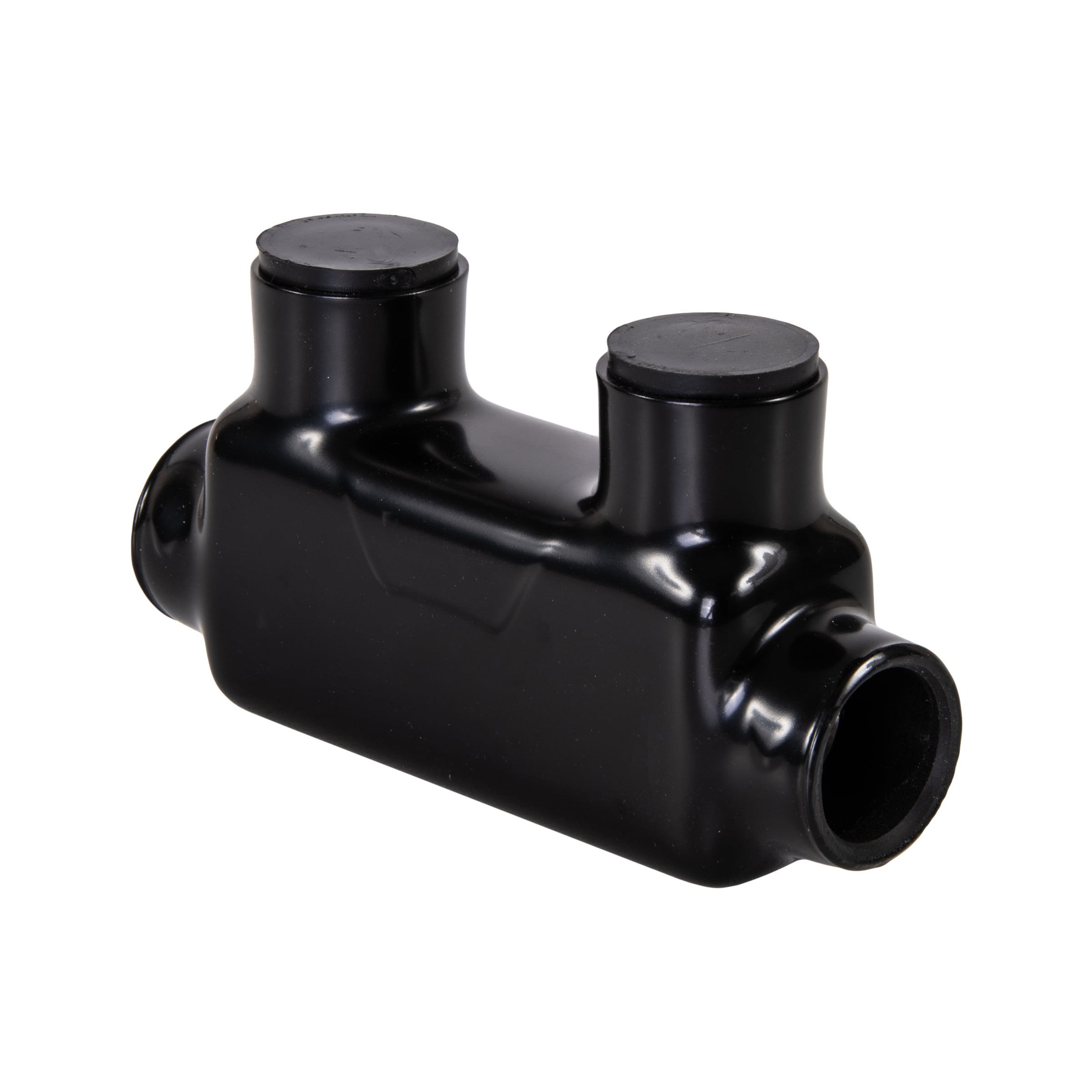

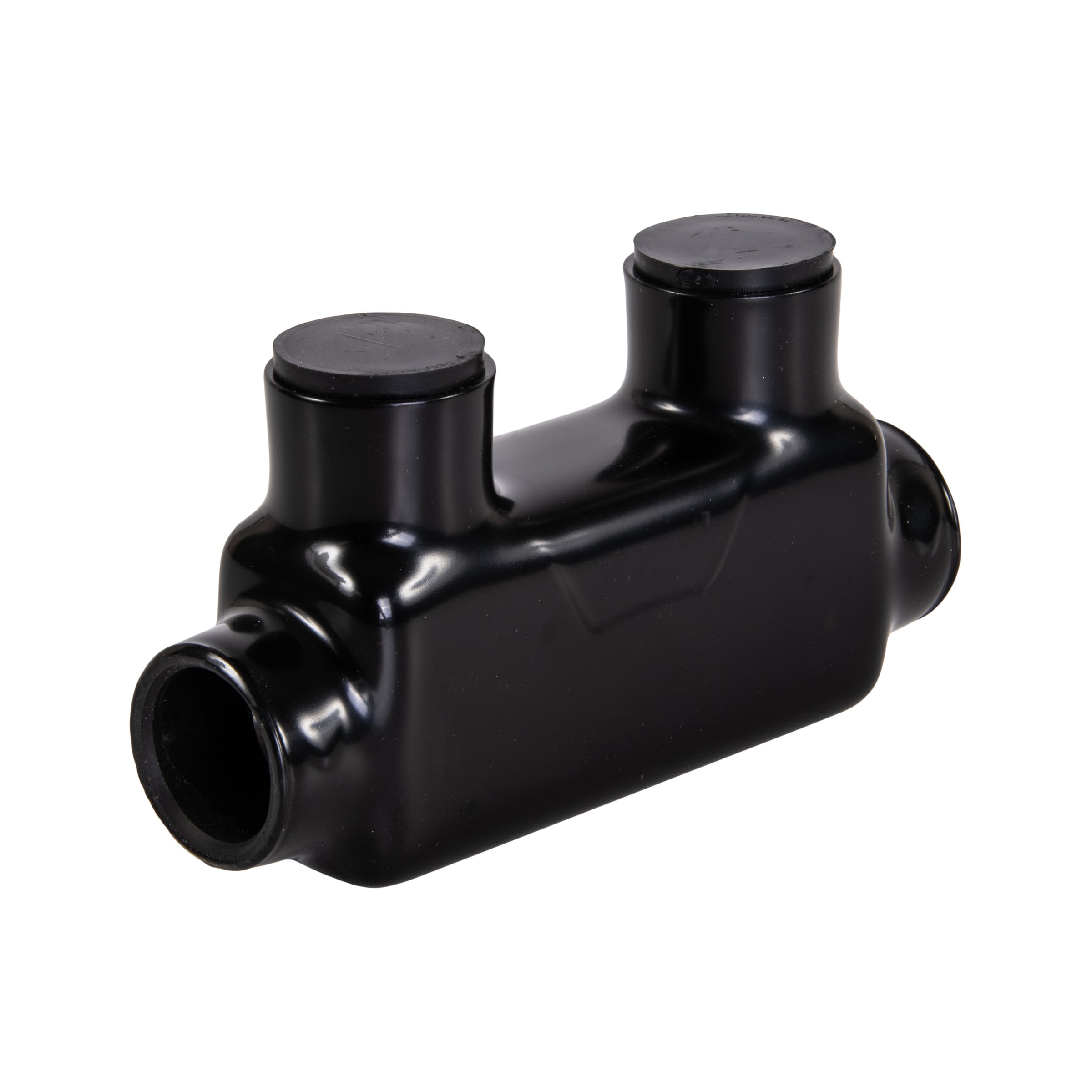

The NSI ISR-250B Polaris™ pre-insulated connector is a dual-rated splicer/reducer for copper or aluminum conductors. It accommodates 6 AWG to 250 kcmil conductors and is rated for 600V. This 1-pole, 2-conductor connector features a Class B, C wire and a 5/16 in hex/wrench. It is temperature rated to 90 deg C.
- Suitable for connecting two wires
- Abrasion and chemical-resistant
- UV-rated
- Dual rated for use with copper/aluminum cables 600 V
Product Highlights
The Polaris ISR-250B connector offers a reliable splicing solution with its durable construction and pre-filled oxide inhibitor, ensuring optimal connectivity and corrosion prevention.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer Part Number: ISR-250B
-
Country of Origin: US
Technical Specifications
-
Series: ISR
-
Type: Dual Rated Splicer/Reducer
-
Specifications: 1-Pole, 2-Conductor, Class B, C Wire, 5/16 in Hex/Wrench
-
Temperature Rating: 90 deg C
-
Voltage Rating: 600 V
-
Conductor Size: 6 AWG to 250 kcmil
-
Conductor Type: Copper/Aluminum
-
Material: Plastisol
-
Connector Type: Quick Connect
-
Terminal: Screw Terminal
-
Maximum Voltage: 600 Volts
-
Connector Gender: Male
-
Contact Material: Copper
-
Insulation Material Type: Plastisol
-
Material Type: 6061-T6 aluminum alloy; Insulated with high dielectric strength plastisol
-
Specification Met: UL
-
Gauge: 6.0
-
Stud Size: 5/16 inch
-
BRAND: Polaris
-
MANUFACTURER: NSI Industries
-
SKU: ISR-250B
-
PRODUCT CATEGORY: Insulated Connectors
-
PRODUCT GROUP: Power Connectors and Grounding
-
PRODUCT NUMBER: ISR-250B
-
TITLE: 2-Port Black Multi-Tap Pre-Insulated Connector, 250 MCM - 6 AWG, Bag
-
PRODUCT LINE: Insulated Mechanical Connectors
-
PRODUCT SERIES: ISR Series
-
UPC: 66238195402
-
WIRE/CABLE CLASS: Class B, Class C
-
FINISH: Plastisol Insulated
-
COUNTRY OF ORIGIN: US
-
UL Standard: UL 486A/B
-
UL File #: E186991
-
APPLICATION: Splice
-
TYPE: In-Line Splicer Reducer
-
NUMBER OF CONDUCTORS/CIRCUITS/TERMINALS: 2
-
WIRE RANGE ACSR - MAIN: end
-
CONDUCTOR - AL SIZE RANGE: 250 MCM - 6 AWG
-
CONDUCTOR - CU SIZE RANGE: 250 MCM - 6 AWG
-
PRODUCT HEIGHT (IN): 2.29
-
PRODUCT LENGTH (IN): 3.95
-
PRODUCT WIDTH (IN): 1.21
-
ALUMINUM CONDUCTOR MAX AMP: 230
-
COPPER CONDUCTOR MAX AMP: 290
-
GTIN: 662381954022
-
PRODUCT GROUP SUB-BRAND: Polaris Black
-
PRODUCT LINE (L4): Insulated Mechanical Connectors
-
PRODUCT ASSORTMENT: Black UV Coated Pre-Insulated Connectors
-
PRIMARY PARENT CATEGORY: Insulated Mechanical Connectors
-
PRODUCT CATEGORY (L3): Insulated Connectors
-
PRODUCT FAMILY (L1): Connectivity
-
UNSPSC: 39121409
-
SCREW MATERIAL: No
-
BARREL PEEP HOLE: No
-
STUD/TERMINAL SIZE: 90C, AL9CU
-
MODES: No
-
CUSTOM: No
-
ENVIRONMENTAL TEMPERATURE: Cold Temperature rated to -45C
-
HEX WRENCH SIZE (IN): 16-May
-
MAX TORQUE VALUE (IN/LBS): 360
-
NO. OF 1/0 AWG - 14 AWG CIRCUITS: 2
-
WIRE RANGE - DIESEL LOCOMOTIVE: Class B, Class C
