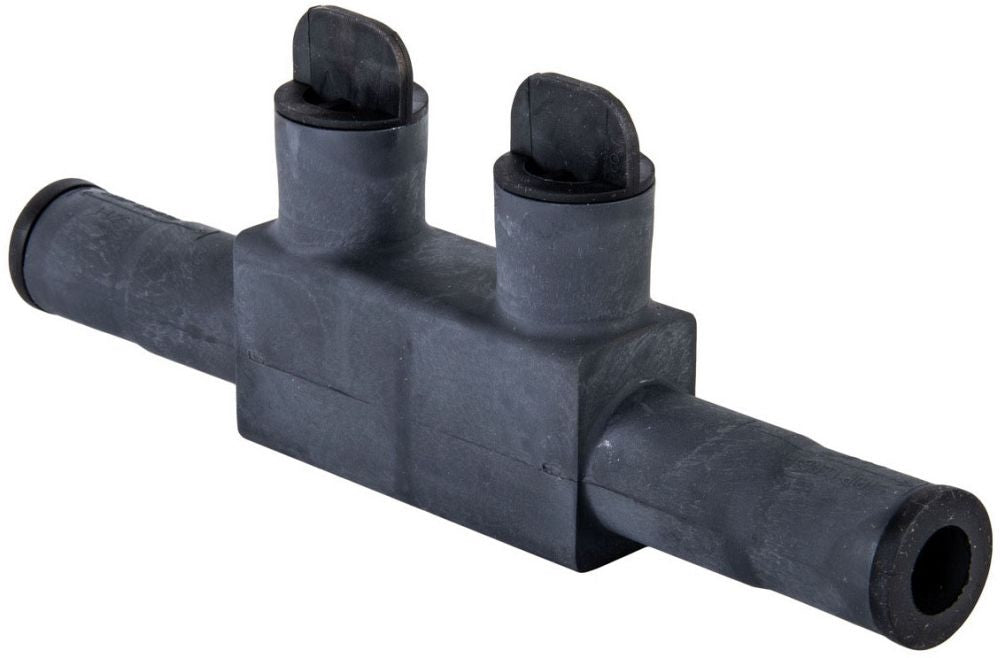

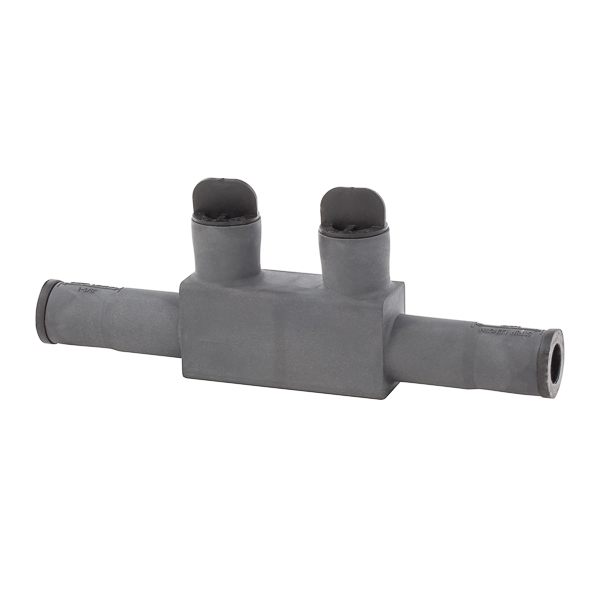

NSI ISPBS350 POLARIS EDGE Splice, 350 MCM-6 AWG

Product Description

NSI Industries ISPBS350 is a portable splice connector designed for various applications. This item provides secure electrical connections for up to two conductors sized from twelve AWG to three hundred fifty MCM. It is suitable for indoor and outdoor use, making it versatile for projects in varied environments.

• Rated for voltage up to six hundred volts.
• Manufactured from high-strength aluminum alloy for durability.
• Suitable for copper and aluminum wire connections.

Product Highlights

This connector's radial tipped set screws minimize conductor damage while providing a reliable connection.

Product Information

Standard Information

• Manufacturer: NSI Industries
• Part Number: ISPBS350

Technical Specifications

• Conductor Size: 2 AWG to 350 kcmil
• Minimum Conductor Size: 12 AWG
• Voltage Rating: 600V
• Material: Aluminum Alloy
• Indoor/Outdoor Use: Yes
• Number of Ports: 2
• Dimensions: 1.25 inches x 8.83 inches x 3.38 inches
• Approval: UL 486D, ANSI C119.1
