Product Description

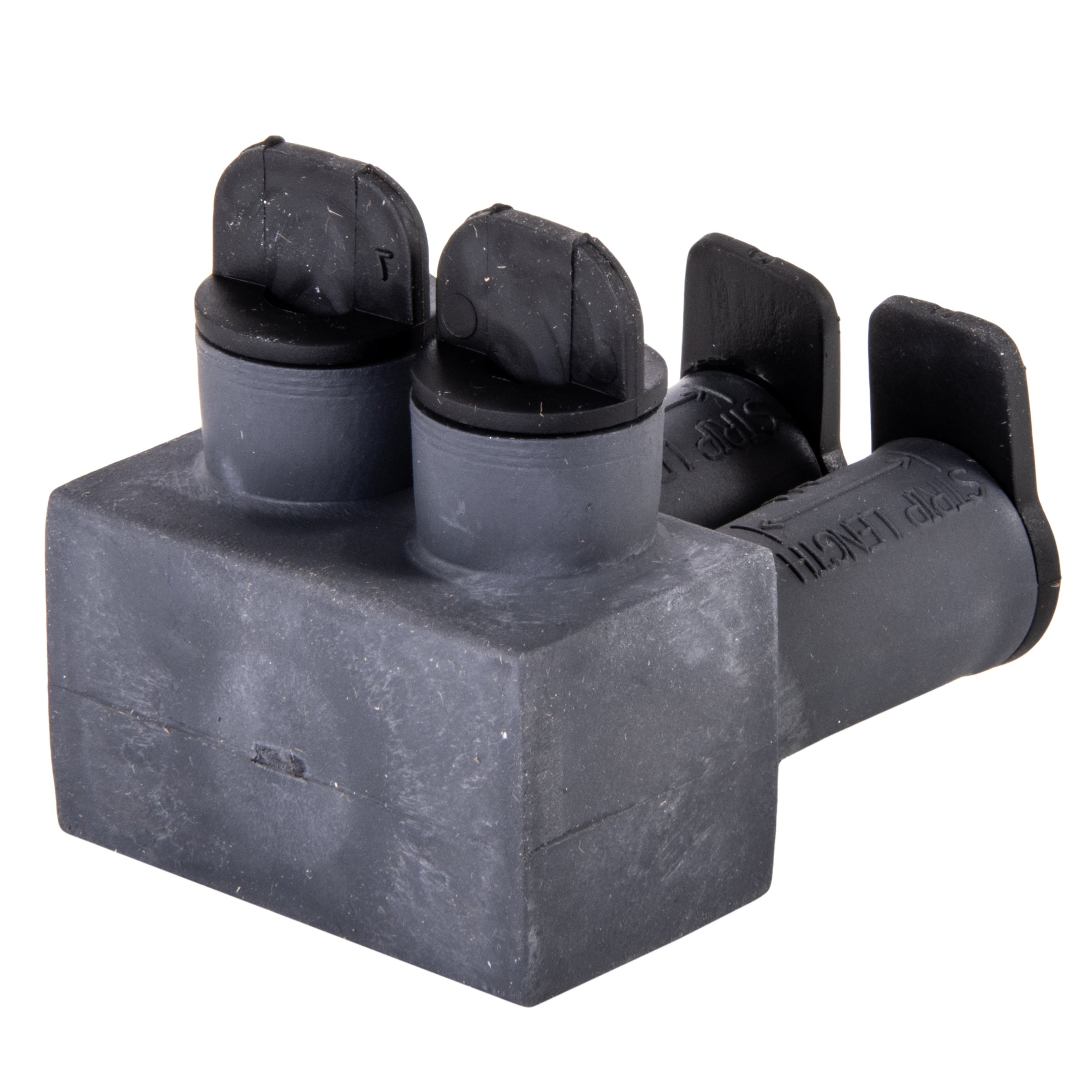

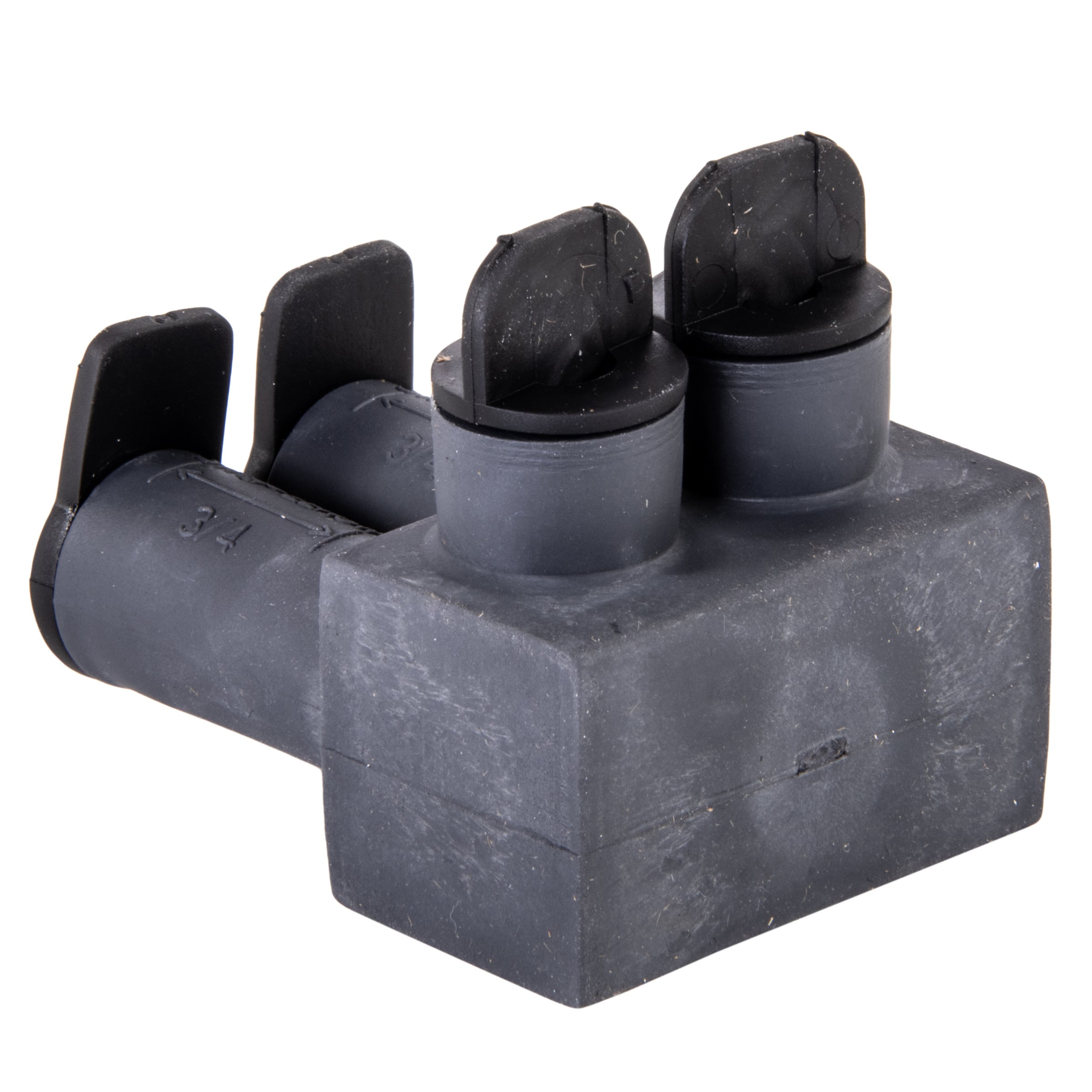

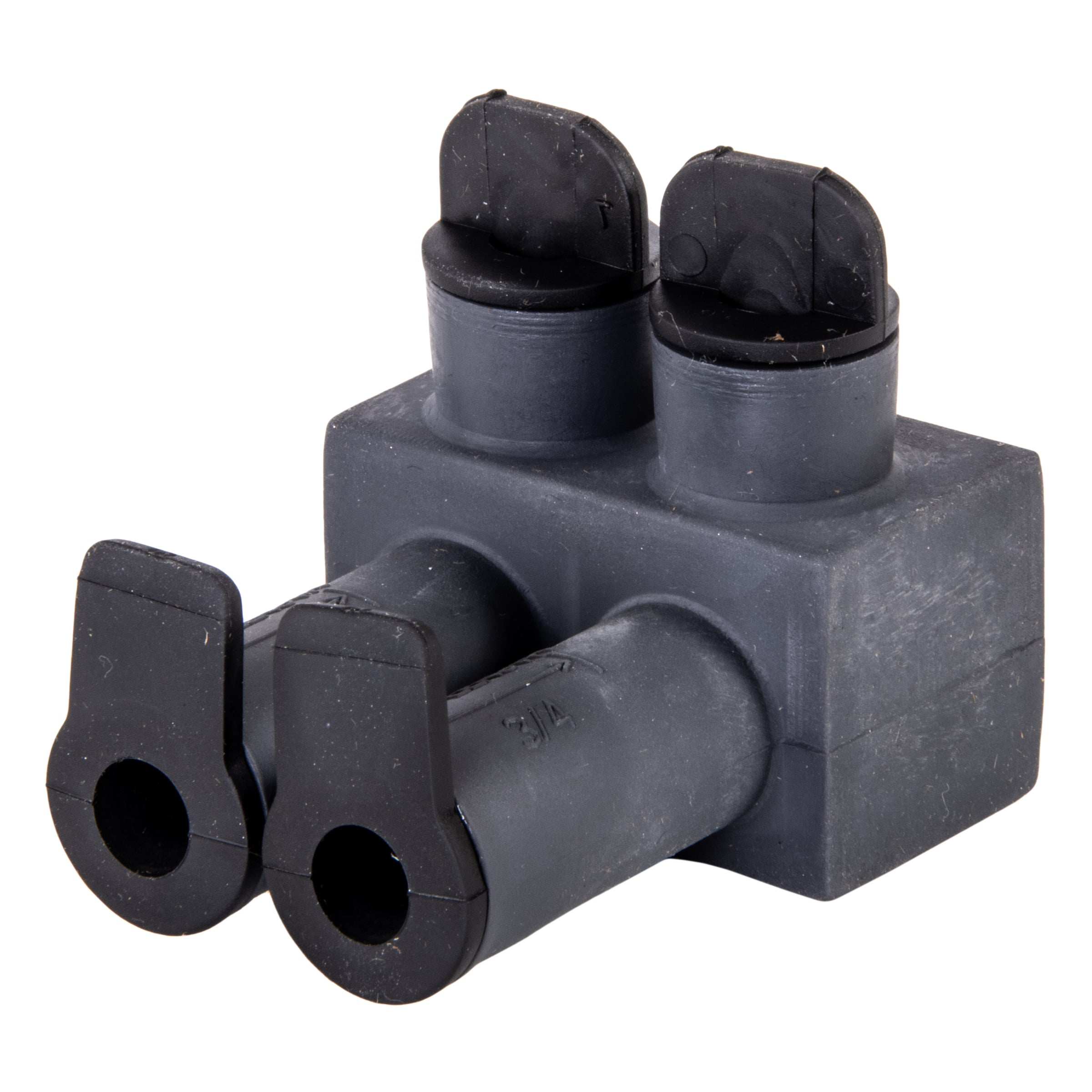

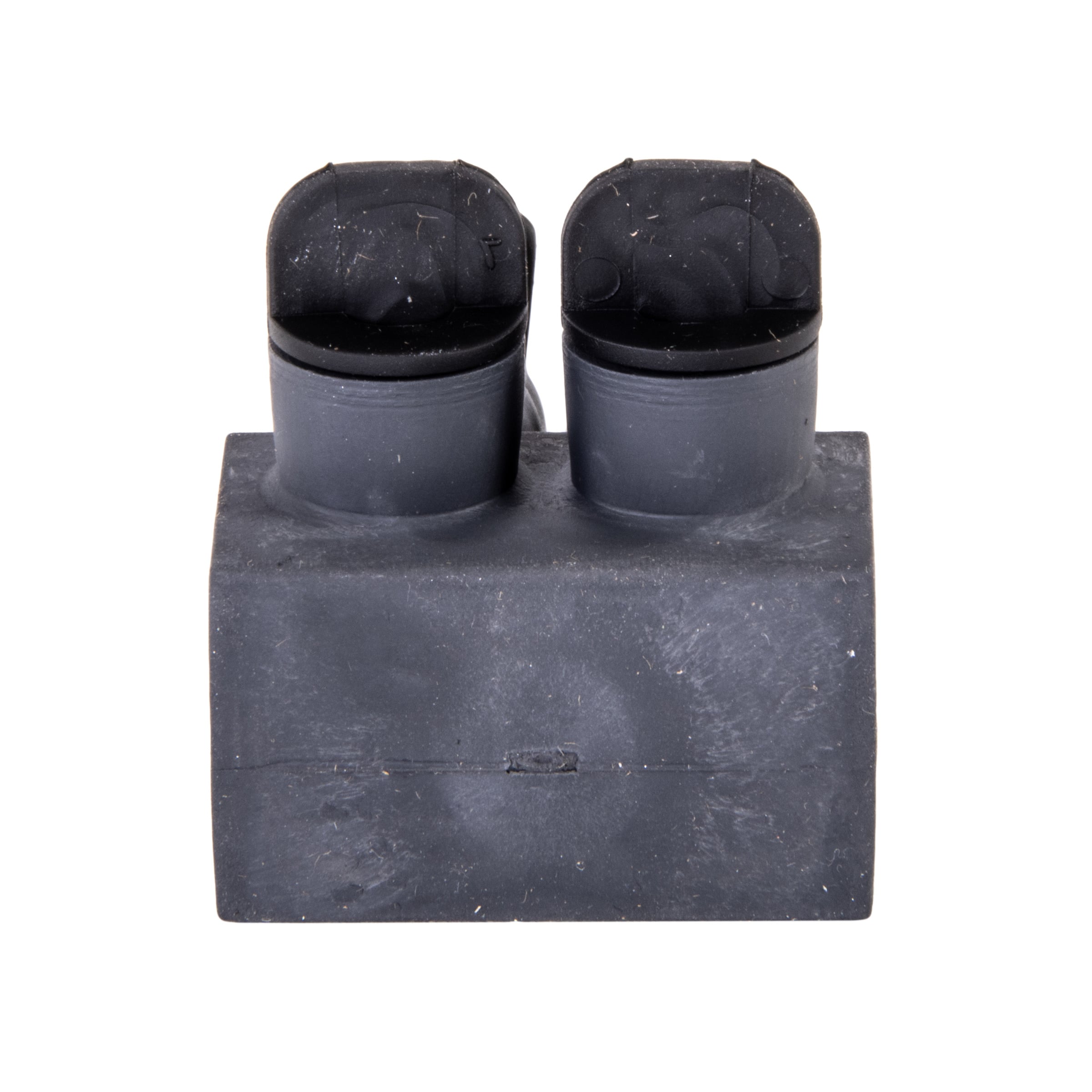

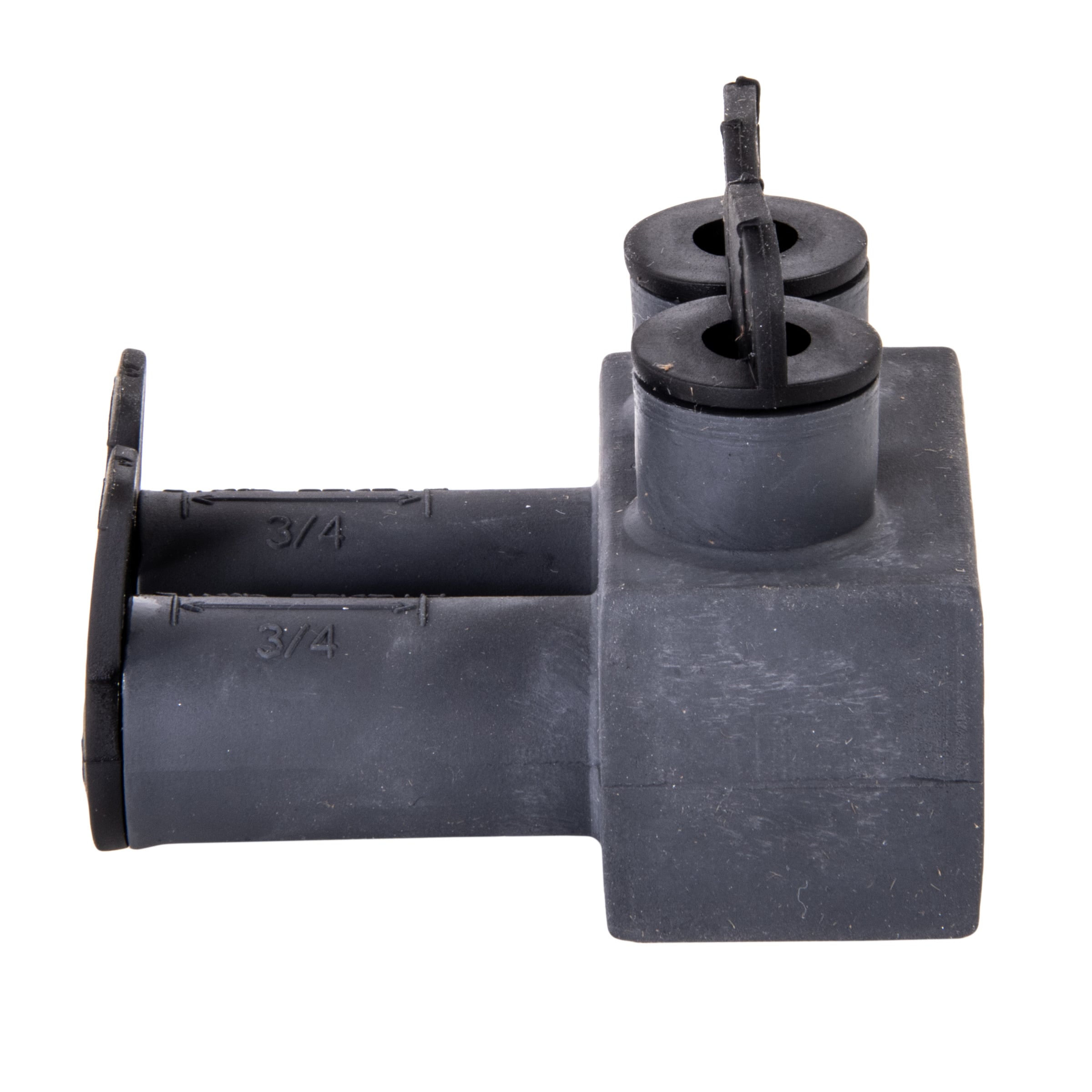

The NSI ISPBS2/0B is a 2-port edge submersible pedestal connector designed for direct burial applications. It features a squared-off design and EPDM rubber insulation coating for temporary submersion. This connector creates secure connections between multiple conductors and installs easily with a hex key and torque wrench.
- One-Side Wire Entry
- Direct Burial Applications
- Squared-Off Design
- Pre-filled Oxide Inhibitor
Product Highlights
The NSI ISPBS2/0B connector is UV, abrasion, and chemical-resistant for durable performance. It is pre-filled with an oxide inhibitor to prevent corrosion.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer Part Number: ISPBS2/0B
-
Country of Origin: US
Technical Specifications
-
Voltage Rating: 600 V
-
Material: Aluminum
-
Finish: EPDM Rubber Insulated
-
Ul Standard: UL 486D
-
Wire Cable Class: Class B, Class C
-
Ansi: ANSI C119.4, C119.1
-
Conductor Cu Size Range: 2/0 AWG – 14 AWG
-
Conductor Al Size Range: 2/0 AWG – 12 AWG
-
Conductor Type: Copper, Aluminum
-
Assortment: Submersible Pre-Insulated Connector
-
Priced Per: Each
-
Pack Quanttiy: 1
-
Product Family (L1): Connectivity
-
Product Category (L3): Insulated Connectors
-
UL File #: E186991
-
Type: Single-Side Entry
-
PRODUCT CATEGORY: Insulated Connectors
-
Product Assortment: Submersible Pre-Insulated Connector
-
PRODUCT LENGTH (IN): 1.93
-
Primary Parent Category: Submersible / Direct Burial
-
Short Description (invoice): Polaris Edge Multi-Tap Direct Burial Connectors form secure connections between multiple conductors and feature a squared-off design and EPDM rubber insulation coating for temporar
-
SKU: ISPB2/0-2B
-
TITLE: 2-Port Edge Submersible Pedestal Connector, 2/0 - 14 AWG, Bag
-
Stud/Terminal Size: 90C, AL9CU
-
Temperature Rating: 90C, AL9CU
-
PRODUCT WIDTH (IN): 2.65
-
Product Weight (lb): 1.9
-
Product Series: ISPB Series
-
PRODUCT GROUP: Power Connectors and Grounding
-
Product Group (L2): Power Connectors and Grounding
-
PRODUCT GROUP SUB-BRAND: Edge
-
PRODUCT HEIGHT (IN): 2.1
-
PRODUCT LINE: Submersible / Direct Burial
-
Product Line (L4): Submersible / Direct Burial
-
PRODUCT NUMBER: ISPB2/0-2B
-
Additional Title: Polaris ISPB2/0-2B Multi-Tap SSE Direct Burial 2-Port Connector
-
Conductor - AL Size Range: 2/0 AWG - 12 AWG
-
Conductor - CU Size Range: 2/0 AWG - 14 AWG
-
Copper Conductor Max AMP: 195
-
COUNTRY OF ORIGIN: US
-
Custom: No
-
DATE LAST UPDATED: 8/22/2024
-
Drive Type: Cold Temperature rated to -45C
-
Environmental Temperature: Cold Temperature rated to -45C
-
CERTIFICATIONS & STANDARDS: cULus
-
Aluminum Conductor Max AMP: 150
-
ANSI: Yes
-
Application: Splice
-
Barrel Peep Hole: No
-
BRAND: Polaris
-
Additional Notes: Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
-
Number of Conductors/Circuits/Terminals: 2
-
No. of 1/0 AWG - 14 AWG Circuits: 2
-
Modes: No
-
Hex Wrench Size (IN): 16-Mar
-
Is Custom?: No
-
MANUFACTURER: NSI Industries
-
Max Torque Value (IN/LBS): 120
-
Pricing Group: POLARIS-EDGE
