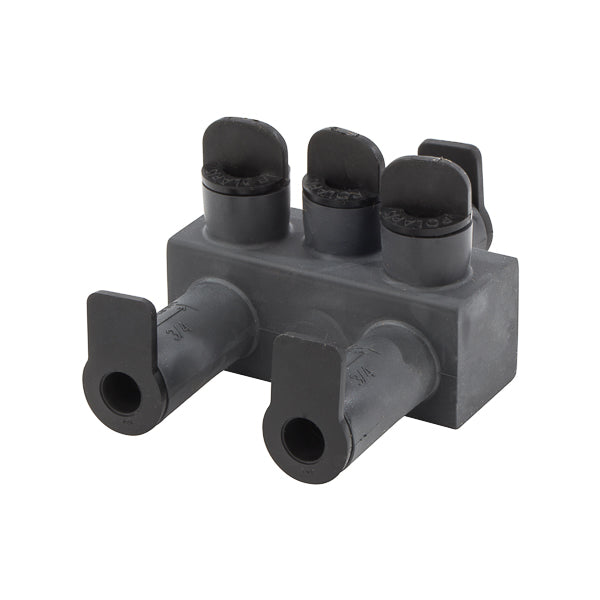

NSI ISPBO2/0 ISPB Series Dual Rated Submersible Pedestal Connector

Product Description

The NSI ISPBO2/0 is a dual rated submersible pedestal connector manufactured by NSi Industries. It is suitable for use with 14 to 2/0 AWG aluminum and copper conductors. This connector can handle up to 600 VAC and is built for conditions that may involve abrasion, chemicals, and UV exposure. The design includes three conductors and is rated for a maximum temperature of ninety degrees Celsius.

• Dual rated for aluminum and copper conductors
• Handles voltage ratings up to 600 VAC
• Made from EPDM rubber for enhanced durability

Product Highlights

The NSI ISPBO2/0 features a robust construction that ensures reliable electrical connections in various outdoor applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Material: EPDM rubber
• Conductor Type: Aluminum/Copper
• Conductor Size: 14 to 2/0 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Series: ISPB Series
• Resistance: Abrasion/Chemical/UV
• Specifications: 3-Conductor, 1-Pole, Class B, C Wire Type, Black
• Dimensions: 2.79 in L x 4.18 in W x 2.1 in H
