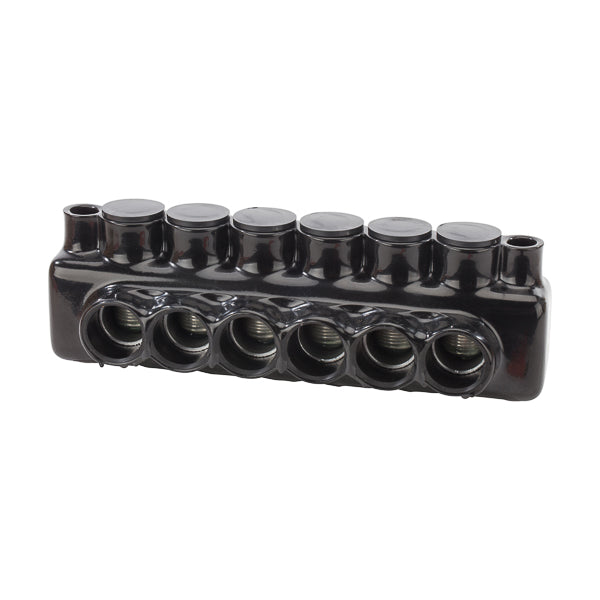

NSI IPLMD750-6 IPLMD Series Double Sided Entry Dual Rated Insulated Multi-Tap Connector With Mounting Holes

Product Description

The NSI IPLMD750-6 is a dual-rated insulated multi-tap connector designed for safe electrical connections. This connector accommodates aluminum and copper conductors ranging from two hundred fifty to seven hundred fifty kcmil. It is rated for six hundred volts alternating current (VAC) and operates efficiently in various environments due to its abrasion, chemical, and UV resistance. The connector is ideal for applications in electrical panels, troughs, and wireways, providing flexibility and secure connections.

• Wire entry ports on both sides for easy access
• Removable access plugs to seal unused entry ports
• Mounting holes for secure placement

Product Highlights

This product provides reliable connections and durability across multiple applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Series: IPLMD Series
• Dimensions: Ten point six inches length x three point forty-one inches width x three point fifty-four inches height
• Material: Plastisol
• Finish: Plastisol
• Conductor Size: Two hundred fifty to seven hundred fifty kcmil
• Conductor Type: Aluminum/Copper
• Voltage Rating: Six hundred VAC
• Temperature Rating: Ninety degrees Celsius
• Resistance: Abrasion, Chemical, UV
• Specifications: Six-Conductor, One-Pole, Class B, C Wire Type, five hundred fifty in-lb Torque, five sixteenths inch Hex/Wrench
