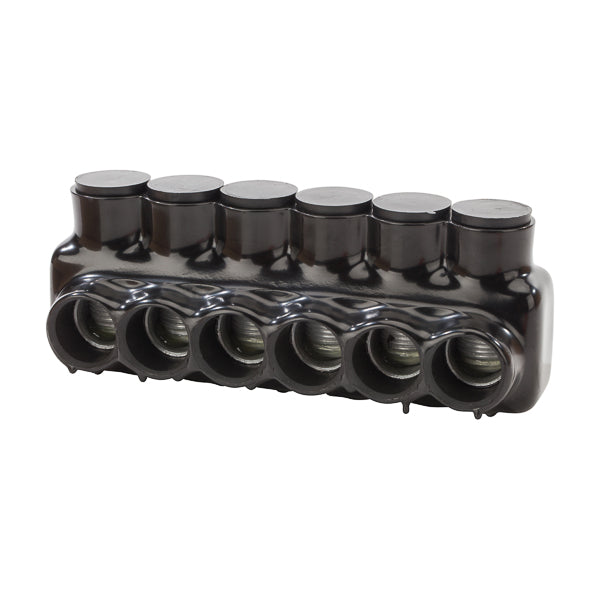

NSI IPLD750-6 IPLD Double Sided Entry Insulated Multi-Tap Connector 250 to 750 kcmil Aluminum/Copper Conductor

Product Description

The NSI IPLD750-6 is an insulated multi-tap connector designed for aluminum and copper conductors ranging from 250 to 750 kcmil. This product features double-sided entry, allowing for convenient wire access. It has an operating voltage of 600 VAC and a durable construction made from plastisol.

• Insulated with dielectric strength plastisol for mechanical protection.
• Accommodates wire entry from both sides.
• Rated for use with both copper and aluminum cables.

Product Highlights

This connector is suitable for various applications requiring reliable electrical connections, ensuring safety and durability.

Product Information

Standard Information

• Manufacturer: NSI
• Part Number: IPLD750-6 NI

Technical Specifications

• Conductor Size: 250 to 750 kcmil
• Voltage Rating: 600 VAC
• Configuration: Double Sided Entry
• Temperature Rating: -45 to 90 degrees Celsius
• Dimensions: 9.23 inches L x 3.41 inches W x 3.42 inches H
• Material: Plastisol
• Wire Type: Class B and C
• Finish: Black
