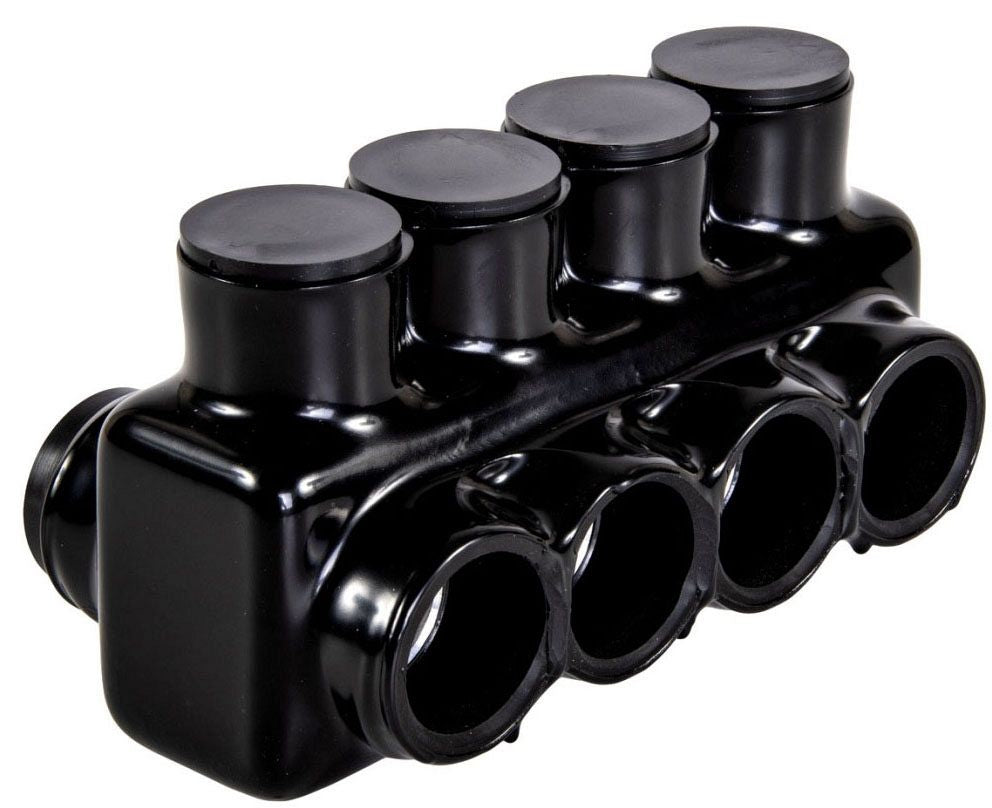

NSI IPLD750-4 IPLD Double Sided Entry Insulated Multi-Tap Connector 750-250 MCM IPLD750-4

Product Description

The NSI IPLD750-4 is an insulated double-sided entry multi-tap connector suitable for aluminum and copper cables. This connector allows safe and effective wire termination for conductors ranging from 250 to 750 kcmil. The compact design measures six point three eight inches in length, three point four one inches in width, and three point four two inches in height.

• Designed for use with aluminum and copper wires
• Two entry ports for easy access
• Insulated with plastisol for mechanical protection

Product Highlights

This multi-tap connector is engineered for dual conductor use with aluminum and copper. Its robust plastisol insulation provides protection from mechanical stress and environmental factors. The design includes removable plugs to close unused entry ports, preventing dirt and moisture from entering.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Dimensions: 6.38 inches L x 3.41 inches W x 3.42 inches H
• Voltage Rating: 600 VAC
• Conductor Type: Aluminum/Copper
• Conductor Size: 750 - 250 MCM
• Material: Plastisol
• Temperature Rating: -45 to 90 degrees C
• Installation Torque: 550 lb-Inch
• Standards: cULus Listed
