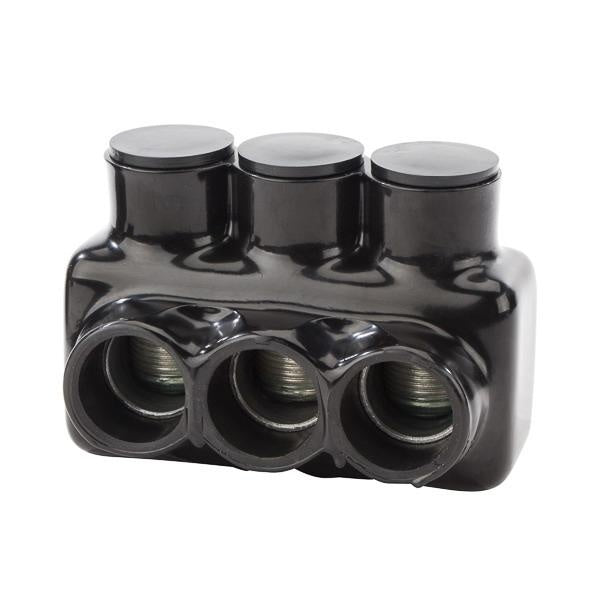

NSI IPLD750-3 CONNECTOR MULTI-TAP INSULATED AL/COPPER

Product Description

NSI IPLD750-3 is a multi-tap insulated connector designed for aluminum and copper conductors. This connector supports wire sizes from two hundred fifty to seven hundred fifty kcmil. It is suitable for systems up to six hundred volts.

• Insulated with high-dielectric strength plastisol
• Designed for double-sided cable entry for versatile installation
• Constructed from durable 6061-T6 aluminum alloy

Product Highlights

This connector features ports on both sides, allowing access from either direction. It effectively eliminates the need for covers or taping during setup.

Product Information

Standard Information

• Brand: NSI
• MPN: IPLD750-3

Technical Specifications

• Type: Insulated, Double Sided
• Conductor Size: 250 to 750 kcmil
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Dimensions: 4.95 inches Length x 3.41 inches Width x 3.42 inches Height
• Insulation Material: Plastisol
• Number of Ports: 3
• Installation Torque: 550 lb-Inch
