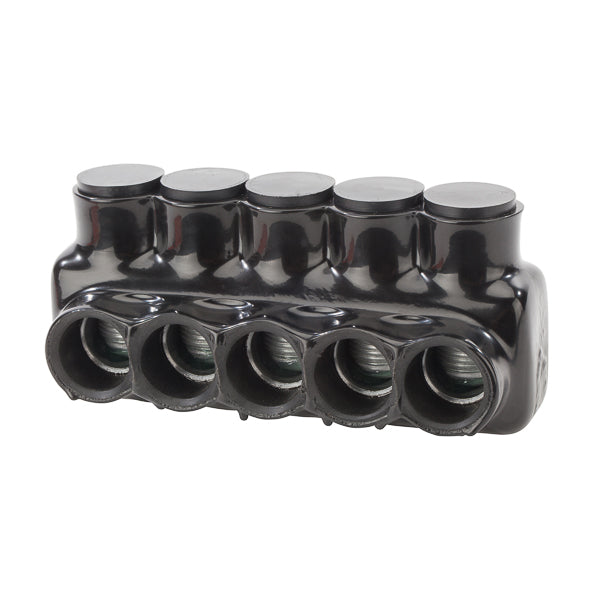

NSI IPLD600-5 Insulated Multi-Tap Connector Double Sided Entry Replacement MPN

Product Description

NSI IPLD600-5 is an insulated multi-tap connector designed for aluminum or copper conductors ranging in size from six AWG to 600 kcmil. This connector supports 600 VAC and features double-sided entry for versatile installation options.

• Insulated with dielectric strength plastisol for tough mechanical protection.
• Wire entry ports on both sides of the connector for easy access.
• Removable plugs included to close unused entry ports.

Product Highlights

This connector is widely used in electrical applications where secure and efficient connections are essential.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

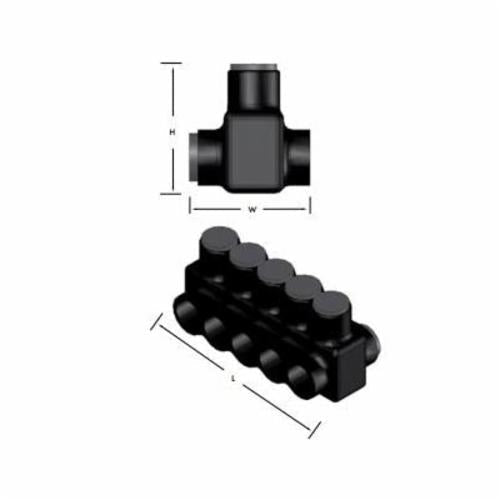

• Dimensions: 7.15 in L x 2.96 in W x 3.03 in H
• Finish: Black
• Series: IPLD
• Specifications: 1 Pole, 5 Conductor, Class B and C Wire Type, 5/16 in Hex
• Temperature Rating: -45 to 75 deg C
• Type: Double Sided Entry
• Voltage Rating: 600 VAC
• Conductor Size: 6 AWG to 600 kcmil
• Conductor Type: Aluminum/Copper
• Material: Plastisol
