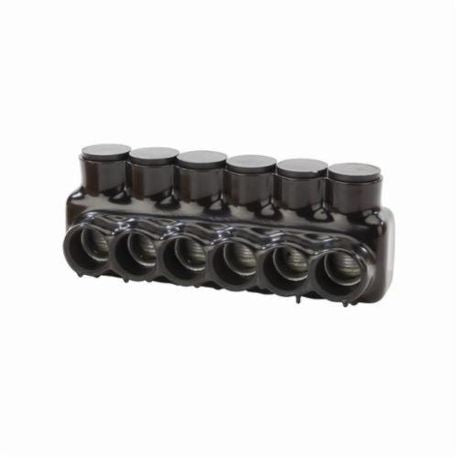

NSI IPLD500-6 IPLD Double Sided Entry Insulated Multi-Tap Connector 4 AWG to 500 kcmil Aluminum/Copper Conductor

Product Description

The NSI IPLD500-6 is a double sided entry insulated multi-tap connector designed for use with aluminum and copper conductors ranging from four AWG to five hundred kcmil. This product features a durable plastisol insulation that provides effective mechanical protection, suitable for various applications in electrical wiring.

• Compatible with both aluminum and copper cables
• Insulated with high dielectric strength plastisol
• Allows easy access from either side through dual entry ports

Product Highlights

This product simplifies electrical connections and is designed for demanding environments. It eliminates the need for tape covers, is resistant to combustion, and is built for wires that follow strict cabling protocols.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part No: IPLD500-6

Technical Specifications

• Type: Double Sided Entry
• Conductor Size: Four AWG to 500 kcmil
• Conductor Type: Aluminum/Copper
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Dimensions: 7.52 in L x 2.83 in W x 2.91 in H
• Specifications: 1 Pole, 6 Conductors, Class B and C Wire Type, 5/16 in Hex
• Finish: Black
