Product Description

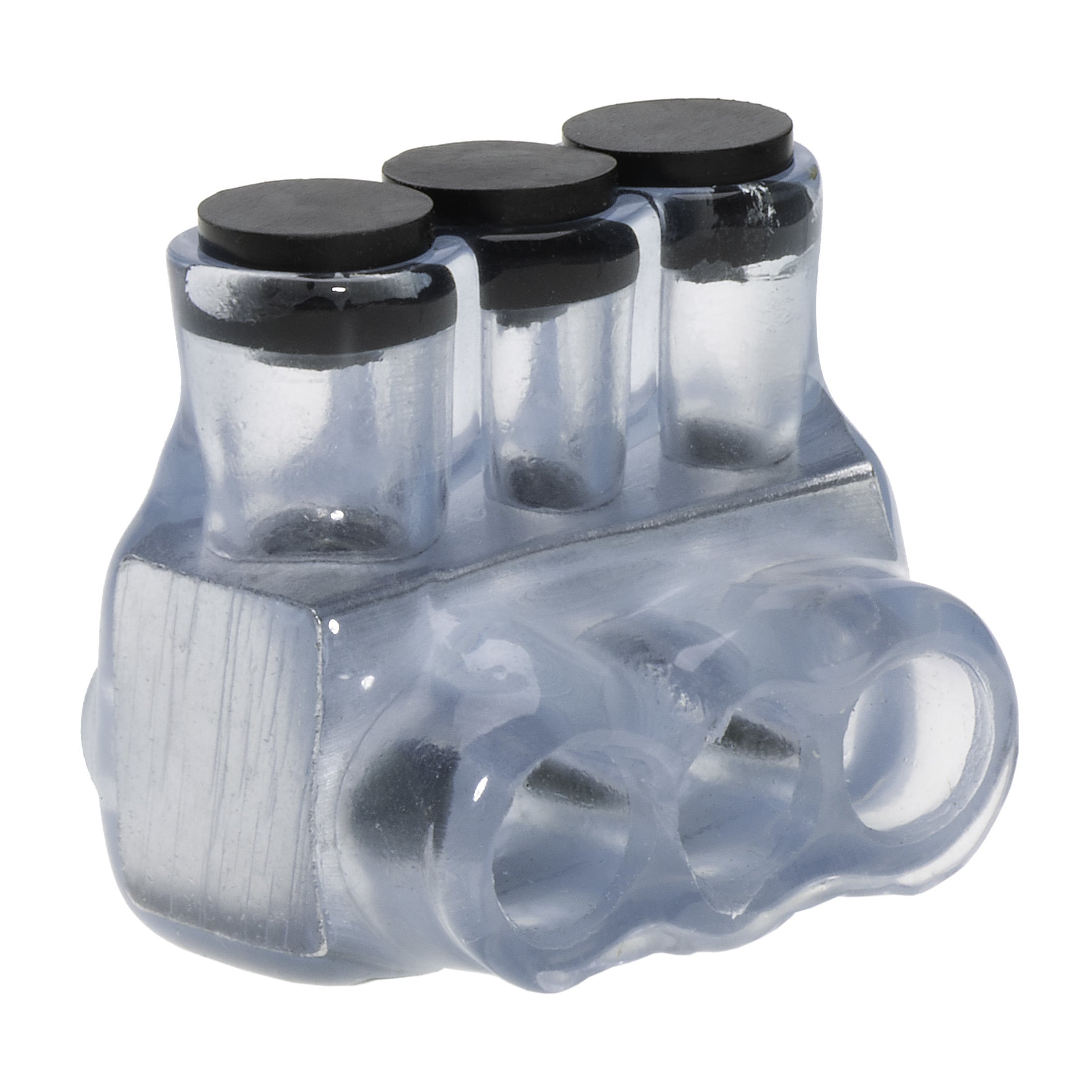

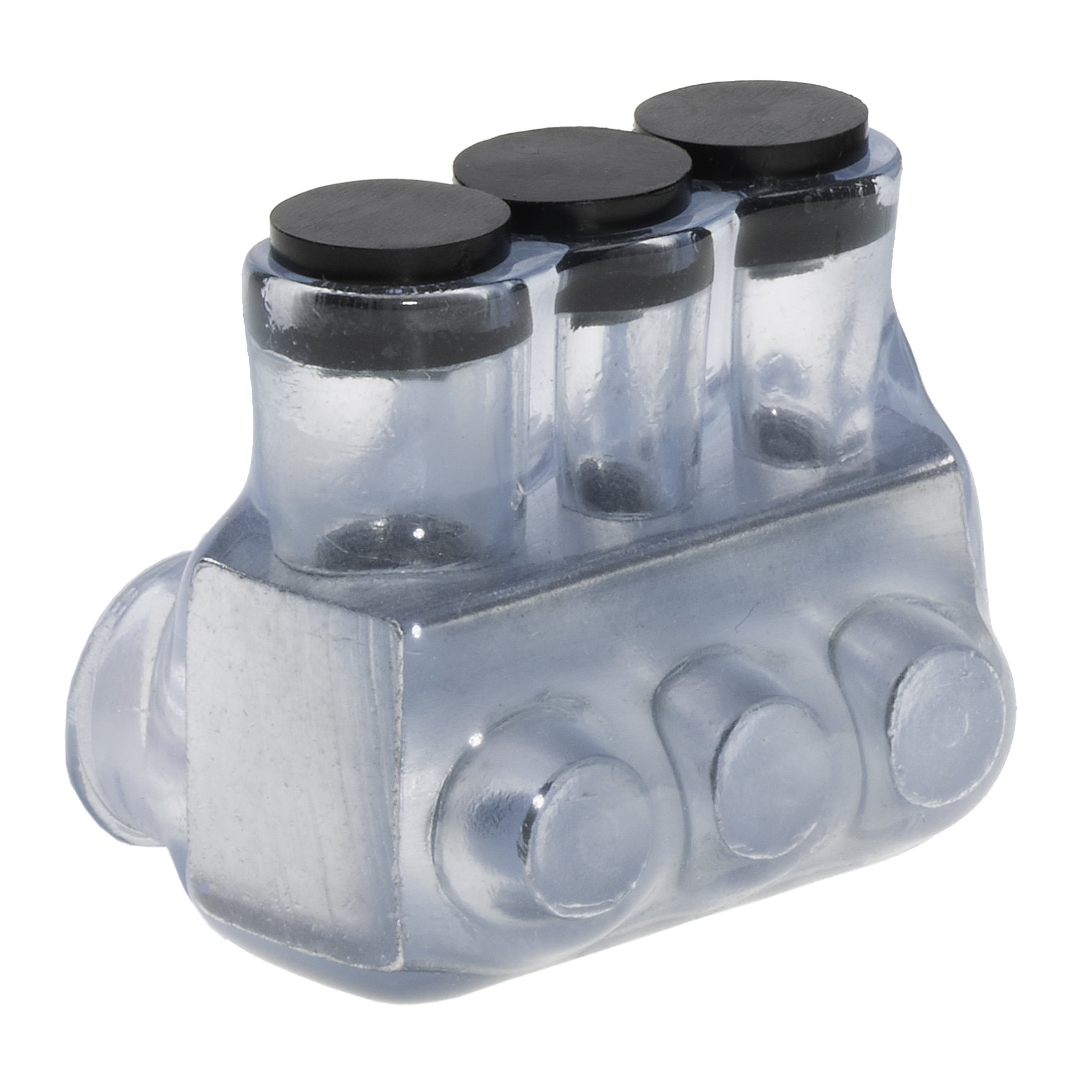

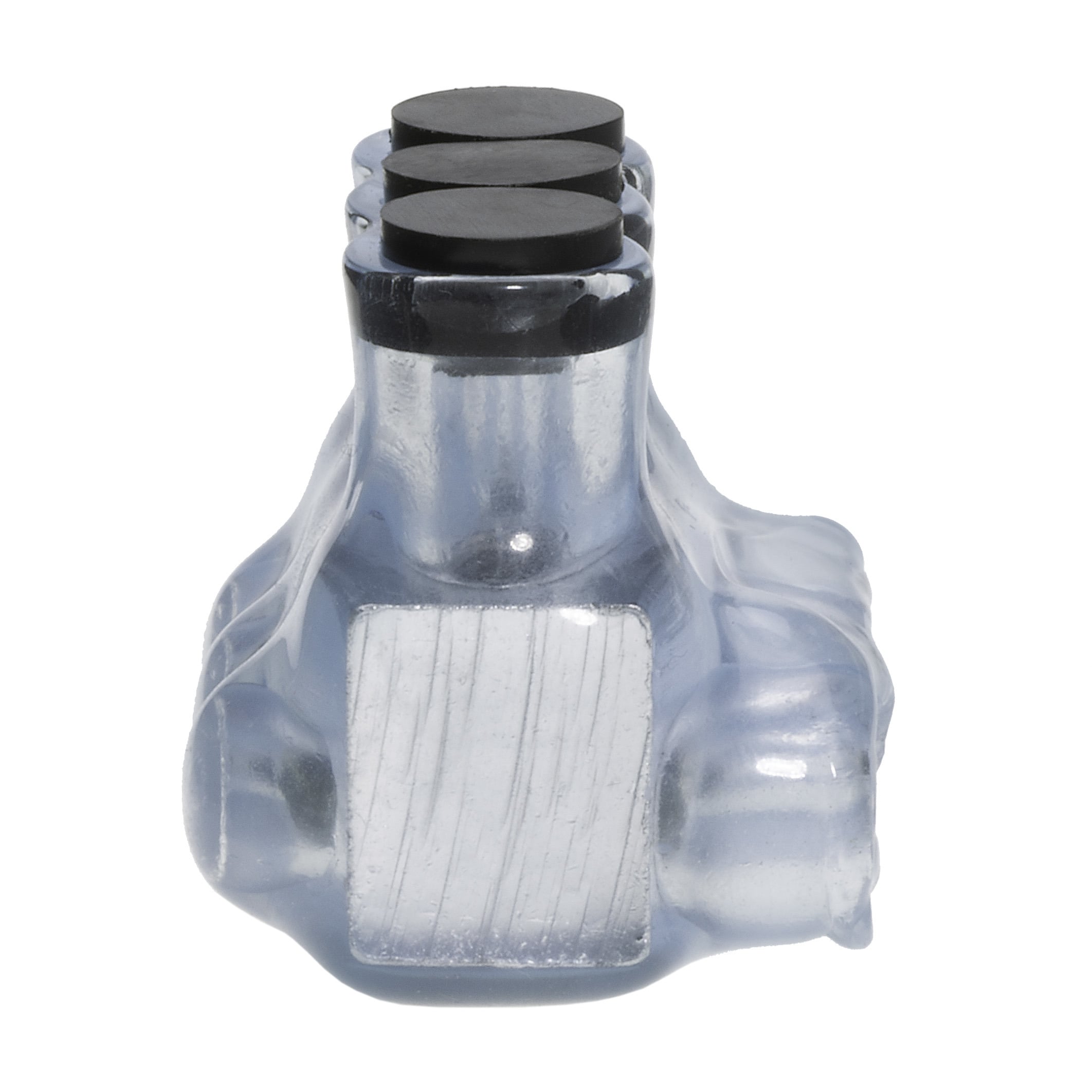

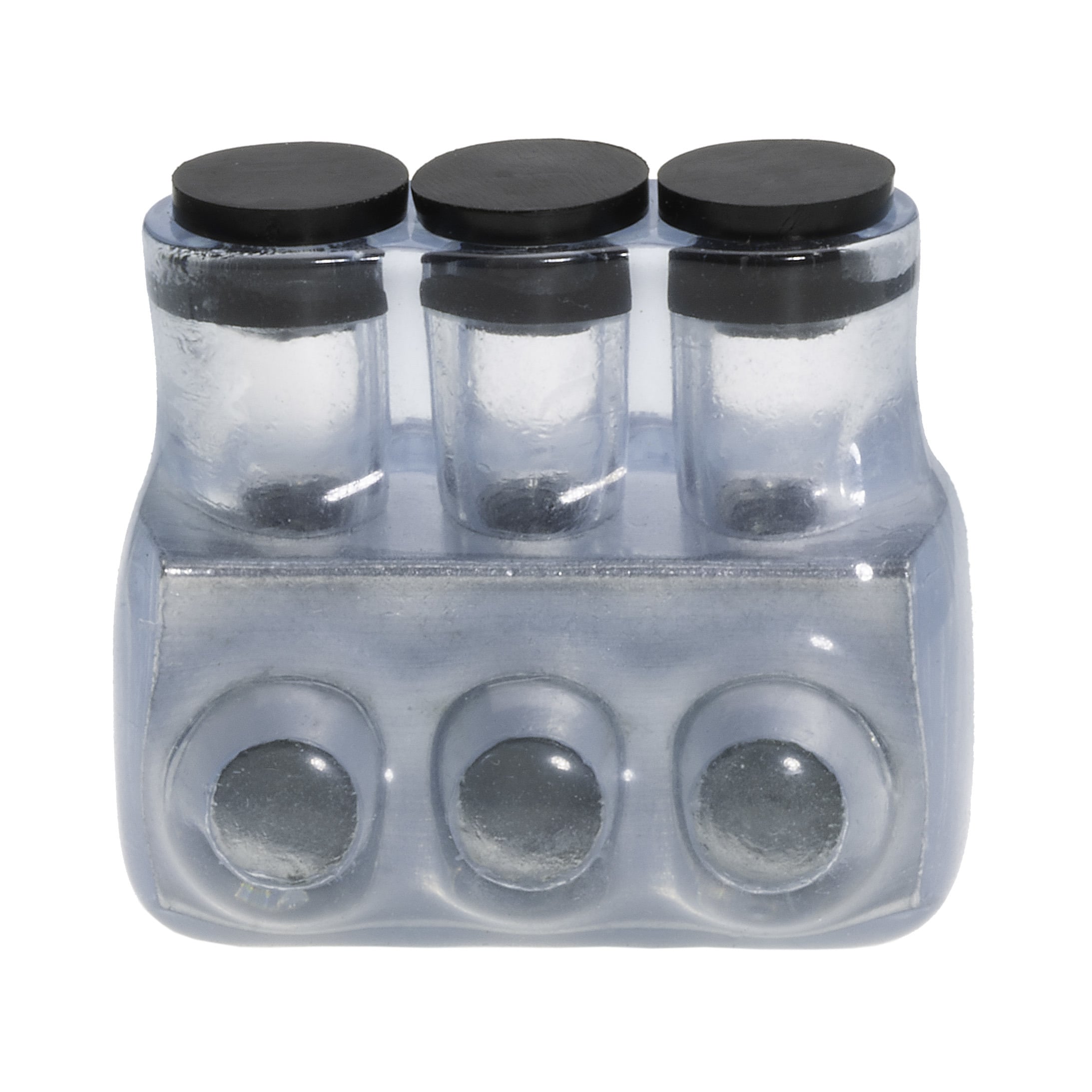

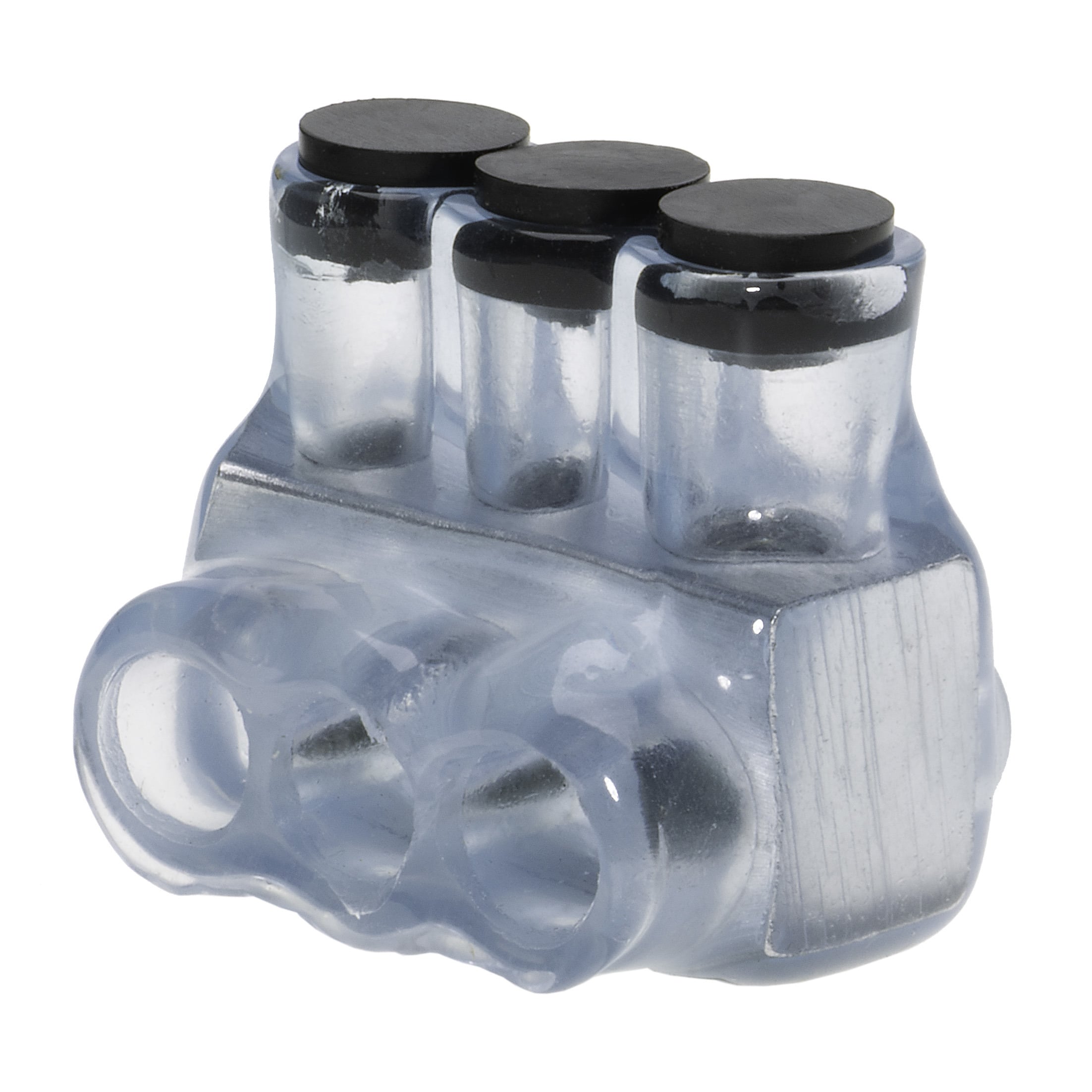

The NSI IPLD4-3CB Polaris Vision Tap Multi-Tap Connectors form secure connections between multiple conductors with a transparent rounded design and chemical-resistant insulation coating. It installs with a hex key and torque wrench, with no need for cover and taping. The connector is pre-filled with oxide inhibitor.
- Clear exterior design lets users see their work to ensure ideal conductor placement and the most secure connection.
- Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip.
- Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture, or contaminants from entering the insulated connector.
Product Highlights
The NSI Polaris Vision Tap is abrasion and chemical-resistant for reliable performance. It is designed for use in a wide range of splicing applications.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer Part Number: IPLD4-3CB
-
Country of Origin: US
Technical Specifications
-
Voltage Rating: 600 V
-
Material: Aluminum
-
Finish: Plastisol Insulated
-
Pack Qty: 1
-
UPC: 662381368843
-
Ul Standard: UL 486A/B
-
Wire Cable Class: Class B, Class C
-
Conductor Cu Size Range: 4 AWG – 14 AWG
-
Conductor Al Size Range: 4 AWG – 12 AWG
-
Conductor Type: Aluminum, Copper
-
Number of Ports: 3
-
Connector Style: 3-Port
-
MPN: IPL4-3CB
-
Compatible Mounting Type: Wire
-
Conductor Size: 14 to 4 AWG,12 to 4 AWG
-
Resistance: Abrasion/Chemical
-
Series: IPL4C
-
Specifications: 3 Conductor/Class B and C Wire Type/35 in-lb Torque/1/8 in Hex/Wrench
-
Temperature Rating: -45 to 90 deg C
-
Type: Connector
-
MANUFACTURER: NSI Industries
-
PRODUCT NUMBER: IPL4-3CB
-
GTIN: 66238136884
-
Application: Splice, Tap
-
Wire Range - Diesel Locomotive: Class B, Class C
-
Stud/Terminal Size: 90C, AL9CU
-
Conductor - CU Size Range: 4-14 AWG
-
Conductor - AL Size Range: 4-12 AWG
-
Aluminum Conductor Max AMP: 75
-
Copper Conductor Max AMP: 95
-
UL File #: E186991
-
Certifications: cULus
-
UL: UL 486A/B
-
Additional Notes: Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
-
PRODUCT HEIGHT (IN): 1.36
-
PRODUCT LENGTH (IN): 1.63
-
PRODUCT WIDTH (IN): 1.24
-
PRODUCT WEIGHT (lb): 1.2
-
COUNTRY OF ORIGIN: US
-
Fits Bolt Size (in): 1/8
-
Number of Conductors/Circuits/Terminals: 3
-
Max Torque Value (IN/LBS): 35
-
AL Wire Size: 4-12 AWG
-
Aluminum Conductor Note: Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
-
Copper Conductor Max: 95 Amp
-
CU Wire Size: 4-14 AWG
-
Max Operating Temp: 194 F (90 C)
-
Body Material: Plastisol
-
culus Listed: Yes
-
UPC Code: #662381368843
-
Outdoor Rating: Dry Location Rated
-
Brand: NSI
-
SKU: IPL4-3CB
-
Mfr. Part Number: IPL4-3CB
