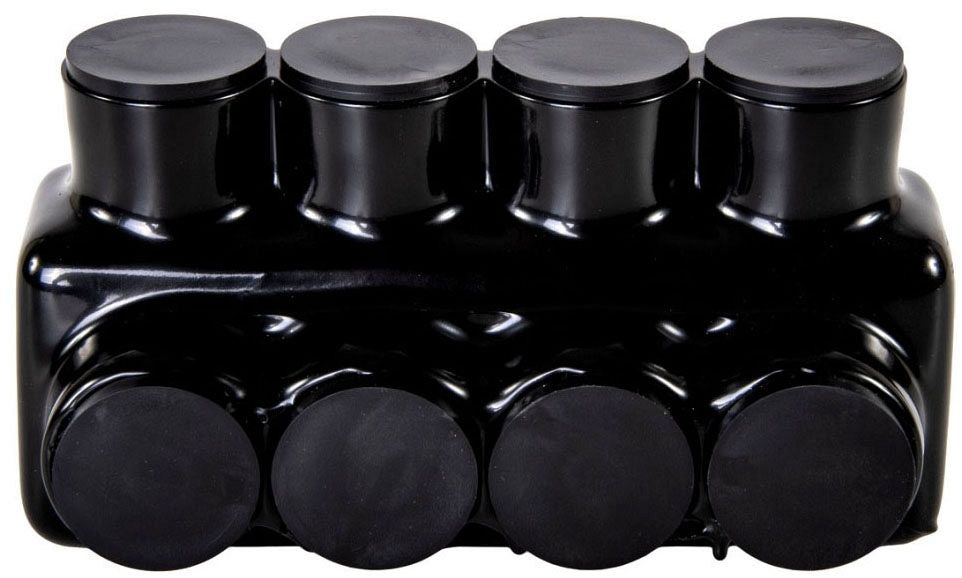

NSI IPLD350-4 IPLD Double Sided Entry Insulated Multi-Tap Connector 6 AWG to 350 kcmil Aluminum/Copper Conductor Plastisol

Product Description

The NSI Polaris IPLD350-4 is a double-sided entry insulated multi-tap connector. It allows for efficient terminations of aluminum and copper wires ranging from six American Wire Gauge to three hundred fifty thousand circular mils. This connector features a durable plastisol insulation that ensures mechanical protection against harsh environments.

• Suitable for fixed assembly applications with minimal maintenance.
• Wire entry ports on both sides facilitate easy access.
• Resistance against UV, chemicals, and abrasion.

Product Highlights

This connector simplifies wire management and enhances the safety of electrical connections.

Product Information

Standard Information

• Brand: NSI
• MPN: IPLD350-4

Technical Specifications

• Finish: Black
• Dimensions: Four point fifty-seven inches Length x Two point forty-one inches Width x Two point sixty-one inches Height
• Conductor Size: Three hundred fifty MCM - Six AWG
• GTIN: Zero zero six six two three eight one nine two four zero two five
• Type: Double Sided Entry
• Series: IPLD
• Voltage Rating: Six hundred VAC
• Material: Plastisol
• Conductor Type: Aluminum/Copper
• Temperature Rating: Negative forty-five to ninety degrees Celsius
• Minimum Order Quantity: One
• Resistance: Abrasion, Chemical, UV
• Standard & Approvals: AL9CU Approved, cULus Listed, UL 486B Listed
• Application: For Aluminum and Copper Cables and Wire Termination
• Installation Torque: Four hundred inch-pounds
• Hex Size: Five sixteenths inches
