NSI IPLD350-3 NSI Polaris IPLD Double Sided Entry Insulated Multi-Tap Connector 6 AWG to 350 kcmil Aluminum/Copper Conductor Plastisol

Product Description

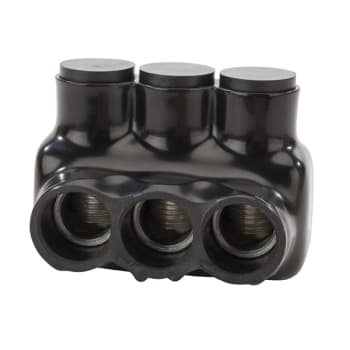

The NSI Polaris IPLD350-3 is an insulated multi-tap connector designed to connect 6 AWG to 350 kcmil aluminum and copper conductors. This product features a double-sided entry, allowing wire access from both sides. It is ideal for applications requiring a secure and efficient connection for wire termination.

• Dual rated for both copper and aluminum cables.
• Molded for a precise fit with removable plugs to cover unused ports.
• Constructed from high-dielectric strength plastisol for durability.

Product Highlights

This connector eliminates the need for additional covers or taping, making it easier to install. Its compact design makes it suitable for various wiring configurations.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Dimensions: 3.52 inches Length x 2.41 inches Width x 2.61 inches Height
• Material: Plastisol
• Conductor Size: 350 MCM - 6 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees C
• Installation Torque: 400 lb-Inch
• Resistance: Abrasion, Chemical, UV
• Standards: UL 486B Listed, cULus Certified
