Description

Product Description

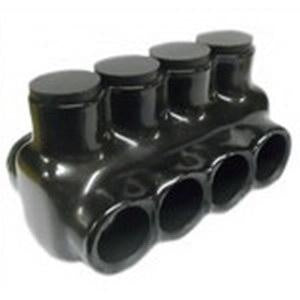

The NSI IPLD3/0-4 is a double-sided entry insulated multi-tap connector suitable for aluminum and copper conductors. This connector accommodates a wire size range of six to three over zero American Wire Gauge. Its robust design includes plastisol insulation for improved protection.

  • Suitable for aluminum and copper cables
  • Voltage rating of 600 VAC
  • Dimensions are three point four one inches in length, one point eight three inches in width, and one point seven nine inches in height

Product Highlights

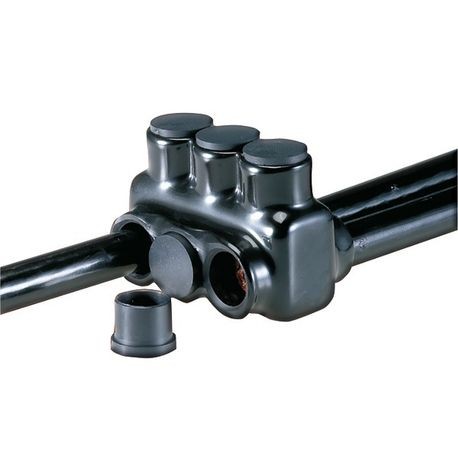

This connector simplifies wiring tasks with access from either side and eliminates the need for taping. It provides reliable performance in a variety of electrical applications.

Product Information

Standard Information

  • Brand: NSI
  • Manufacturer: NSi Industries
Technical Specifications
Type
Double Sided Entry
Conductor Size
3/0 to 6 AWG
Voltage Rating
600 VAC
Material
Plastisol
Dimensions
3.41 in L x 1.83 in W x 1.79 in H
Temperature Rating
-45 to 90 deg C
Resistance
Abrasion, Chemical, UV
Standards
AL9CU Approved, cULus Listed, UL 486B Listed
