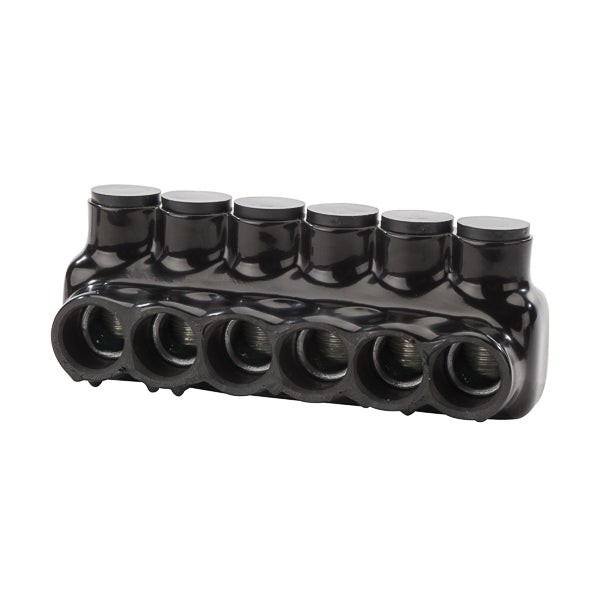

NSI IPLD250-6 IPLD Double Sided Entry Insulated Multi-Tap Connector 600 Volt 6 AWG to 250 kcmil Aluminum/Copper Conductor

Product Description

The NSI IPLD250-6 is an insulated multi-tap connector designed for double sided entry. This product accommodates aluminum and copper conductors ranging from six AWG to 250 kcmil. It is suitable for 600 Volt applications and made with high-dielectric strength plastisol for durability.

• Double sided entry for versatile installation.
• Accepts conductor sizes from 6 AWG to 250 kcmil.
• Temperature range from negative forty-five to ninety degrees Celsius.

Product Highlights

NSI IPLD250-6 offers reliable connections and is molded for precision fit. It includes removable plugs for unused entry ports and features ports on both sides for easy access.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries
• MPN: IPLD250-6

Technical Specifications

• Voltage Rating: 600 VAC
• Conductor Type: Aluminum/Copper
• Material: Plastisol
• Resistance: UV, abrasion, chemicals
• Dimensions: 5.52 inches L x 2.28 inches W x 2.18 inches H
• Max Temperature: 90 degrees Celsius
• Conductor Size: 6 AWG to 250 kcmil
• Type: Double Sided Entry
