Nsi IPLD1/0-3B Polaris Multi-Tap 3 Port 1/0-14 AWG

Product Description

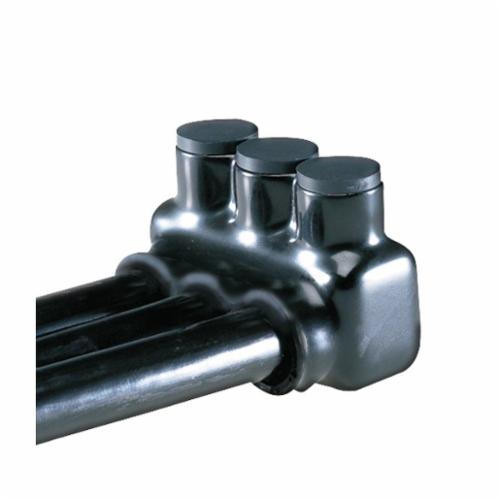

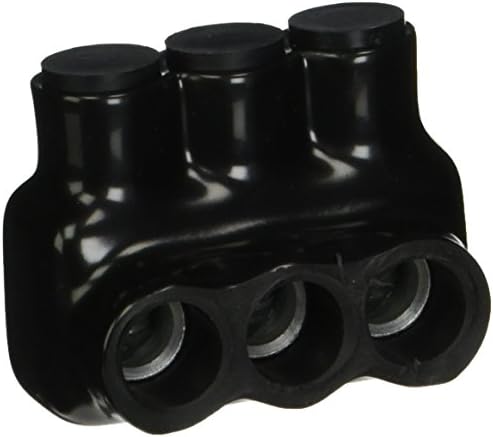

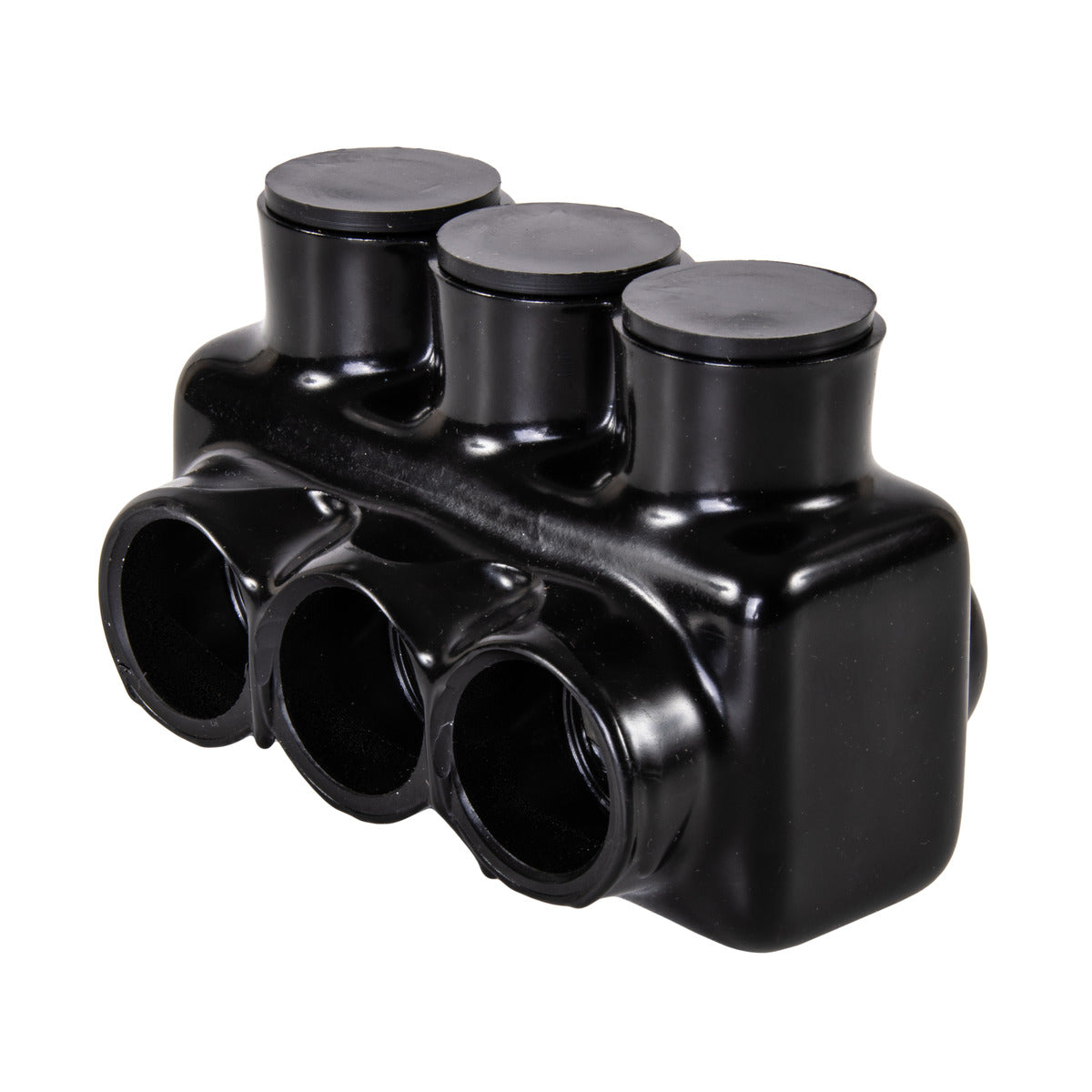

The NSI IPLD1/0-3B Polaris Multi-Tap 3 Port connector features a single-sided entry design for 1/0-14 AWG wires. Constructed from chemical and abrasion-resistant aluminum alloy and insulated with high dielectric strength plastisol. Pre-filled with dielectric grease, these connectors install quickly without tape or specialized tools.

• Aluminum alloy connector insulated with high dielectric strength plastisol is chemical and abrasion resistant.
• Ergonomic rounded body lets you apply more torque and protects your hands during long days of installation.
• Available in a range of port numbers and arrangements to match your needs, including UL listed parallel configurations.

Product Highlights

The Polaris connectors are pre-loaded with dielectric grease and install faster without tape or specialized tools.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: IPLD1/0-3B
• Country of Origin: United States

Technical Specifications

• Connector Type: Screw
• Number Of Contacts: 3
• Mounting Type: Panel Mount
• Voltage: 120 Volts
• Number Of Poles: 3
• Upper Temperature Rating: 90 Degrees Celsius
• Temperature Range: 9E+1 Degrees Celsius
• Number of Positions: 3
• Material Type: Plastic
• Specification Met: Ul (Canada and Us) Approved
• Brand: NSI
• Model: IPL1
• MPN: IPL1/0-3B
• UPC: NA
• Country of Origin: United States
• Category: Business & Industrial
• Voltage Rating: 600 V
• Material: Aluminum
• Finish: Plastisol Insulated
• Pack Qty: 1
• UNSPSC: 39121409
• Ul Standard: UL 486A/B
• Wire Cable Class: Class B, Class C
• Conductor Cu Size Range: 1/0 AWG – 14 AWG
• Conductor Al Size Range: 1/0 AWG – 12 AWG
• Conductor Type: Aluminum, Copper
• Assortment: Black UV Coated Pre-Insulated Connectors
• Catalog Number: IPL1/0-3B
• Dimensions: 2.24 in L x 1.5 in W x 1.688 in H
• Gross Weight Per Pack: 0.2000 lb
• Series: IPL
• Specifications: 1 Pole, 3 Conductor, Class B and C Wire Type, 3/16 in Hex
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantAL9CU ApprovedcULus ListedUL 486B
• Temperature Rating: -45 to 90 °C
• Type: Single Sided Entry
• UPC 11: 66238195801
• UPC 12: 662381958013
• Stock Status: NONSTOCK
• Manufacturer: NSi Industries, LLC
• Conductor Size: 14 to 1/0 AWG
