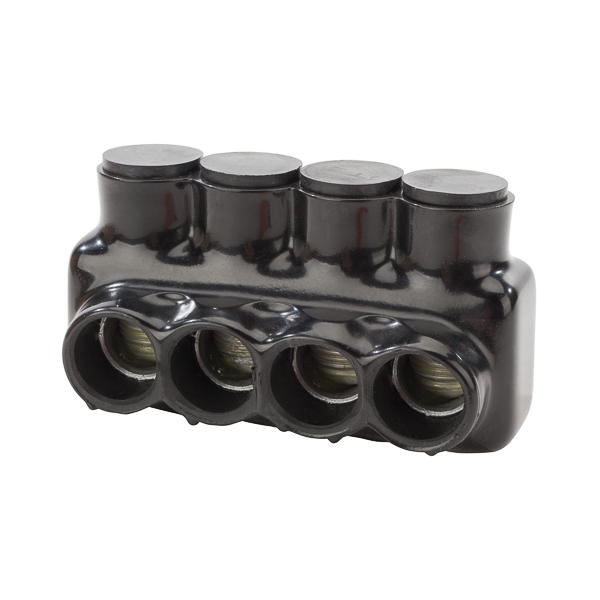

NSI IPL750-4 CONNECTOR MULTI-TAP INSULATED AL/COPPER

Product Description

The NSI IPL750-4 is a multi-tap insulated connector designed for use with aluminum and copper conductors. This connector supports conductor sizes ranging from 250 to 750 kcmil. It provides a reliable connection with a dielectric strength due to its plastisol insulation.

• Insulated with dielectric strength plastisol for mechanical protection
• Molded for precise fit with removable access plugs
• Wire entry ports on one side only

Product Highlights

The NSI IPL750-4 enables fast and secure connections, featuring a single sided entry design for ease of installation.

Product Information

Standard Information

• Brand: NSI
• Type: Single Sided Entry

Technical Specifications

• Conductor Size: 250 to 750 kcmil
• Conductor Type: Aluminum/Copper
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Dimensions: 6.38 in L x 3.09 in W x 3.49 in H
• Wire Type: Class B and C
• Finish: Black
• Mounting Style: 1 Pole, 4 Conductor
