NSI IPL4-5 Mechanical Split Bolts and Taps Plastisol 5 Port 14 to 4 AWG

Product Description

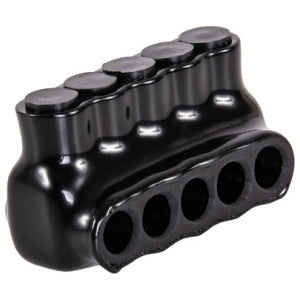

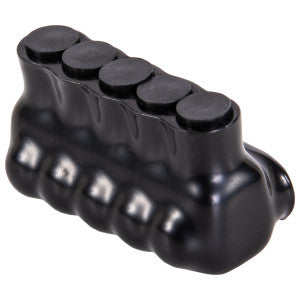

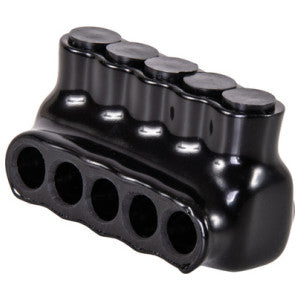

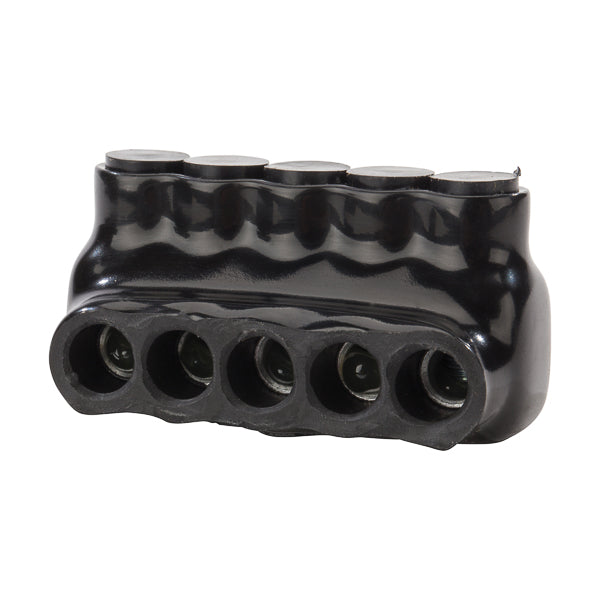

The NSI IPL4-5 is a mechanical split bolt connector designed for secure connections between multiple conductors. This model features five ports that accommodate conductors ranging from 14 to 4 AWG. The connector is built with an aluminum alloy and coated with UV-resistant plastisol insulation, which ensures durability and longevity.

• Features five ports for easy and secure wire connections.
• Constructed from aluminum with a plastisol insulation coating.
• Installs using a hex key and torque wrench without the need for covers or taping.

Product Highlights

The NSI IPL4-5 Multi-Tap Connector is suitable for a variety of applications including installation in panel boards, cable trays, and ducts. It is designed to be user-friendly, facilitating straightforward installation without additional supplies.

Product Information

Standard Information

• Brand: NSI Industries
• Manufacturer Part Number: IPL4-5

Technical Specifications

• Conductor Size: 14 to 4 AWG
• Material: Aluminum alloy with plastisol insulation
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cULus Listed
• Number of Conductors: 5
• Type: Single Sided Entry
