Nsi IPL4-4C Polaris IPL4-4C 4-Port 14 to 4 AWG

Product Description

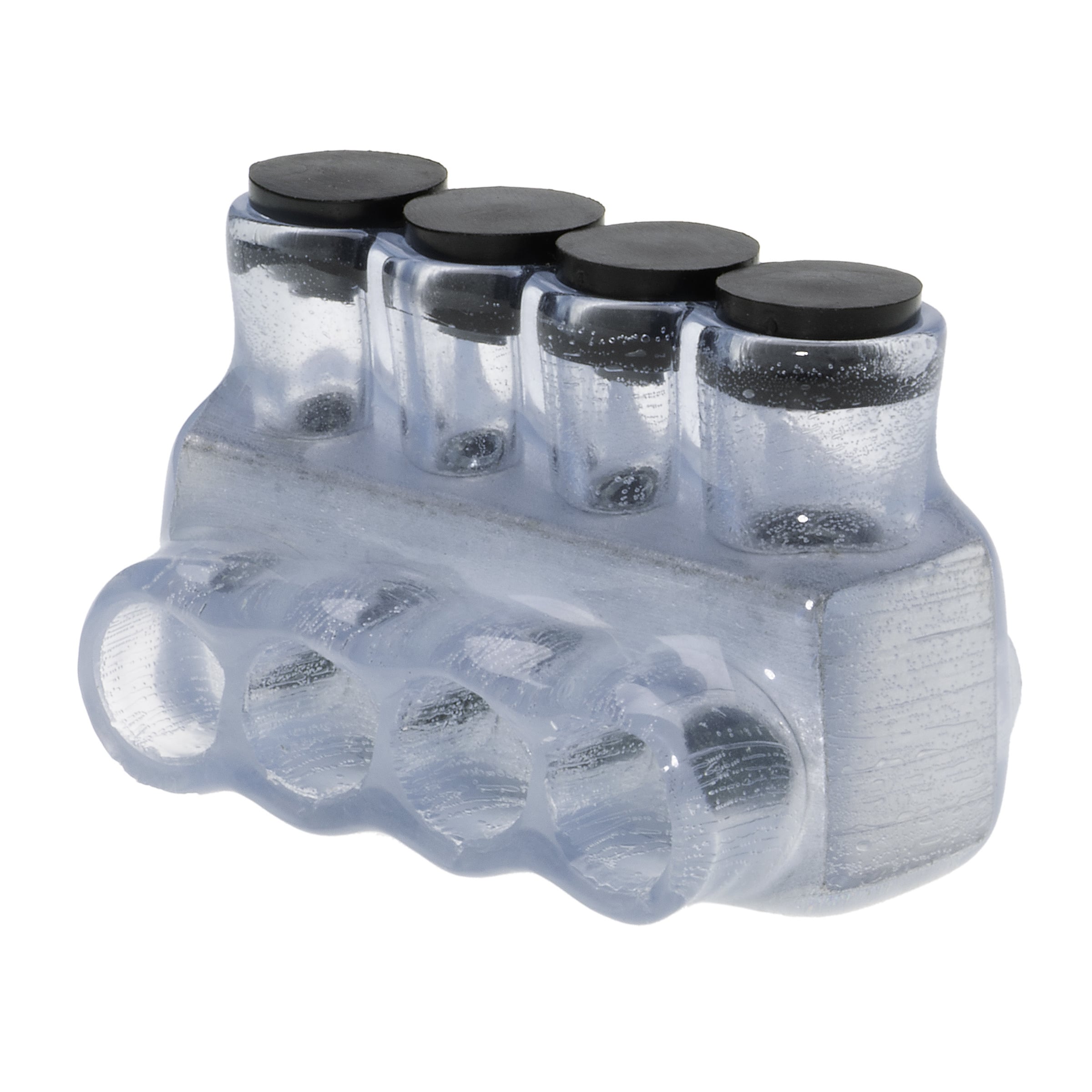

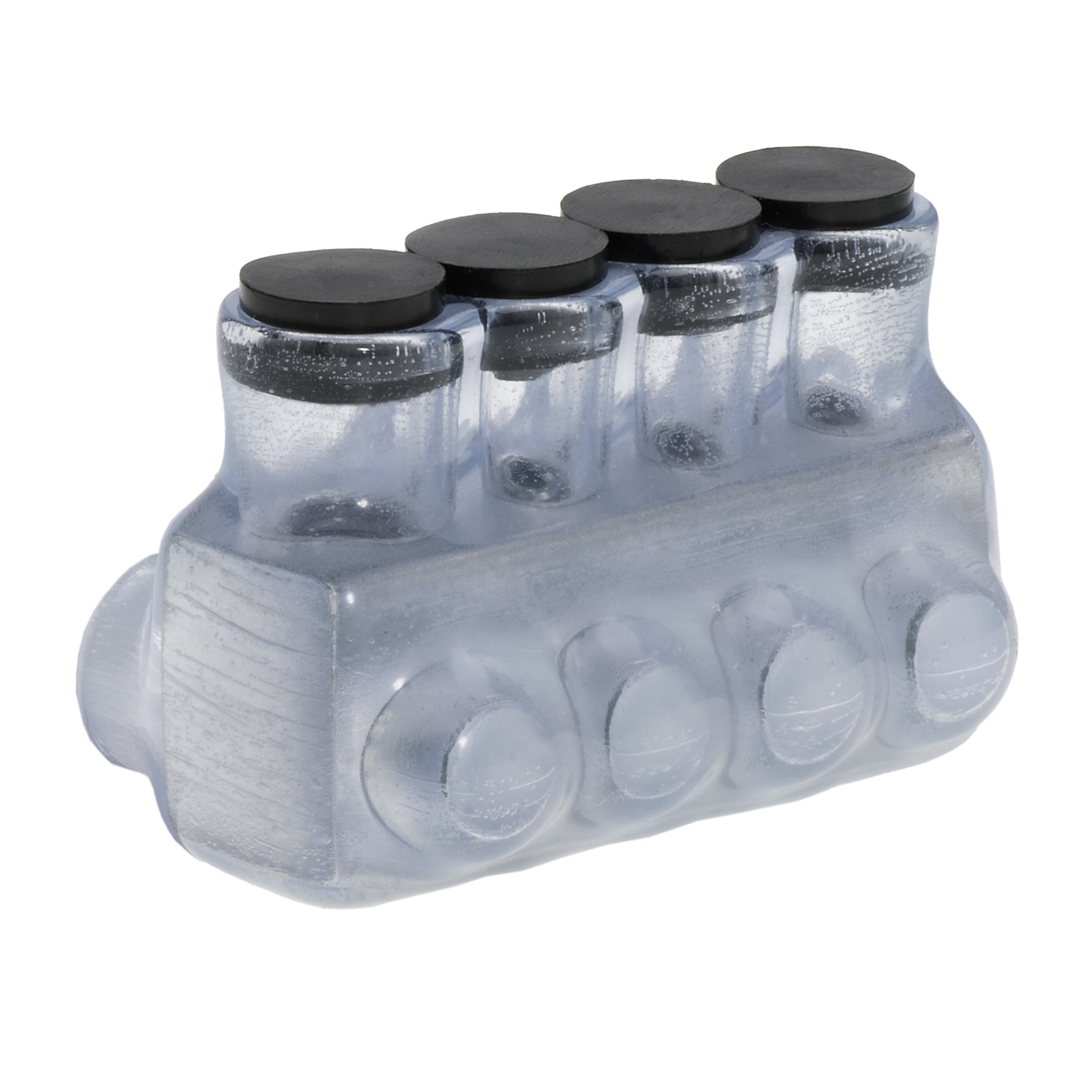

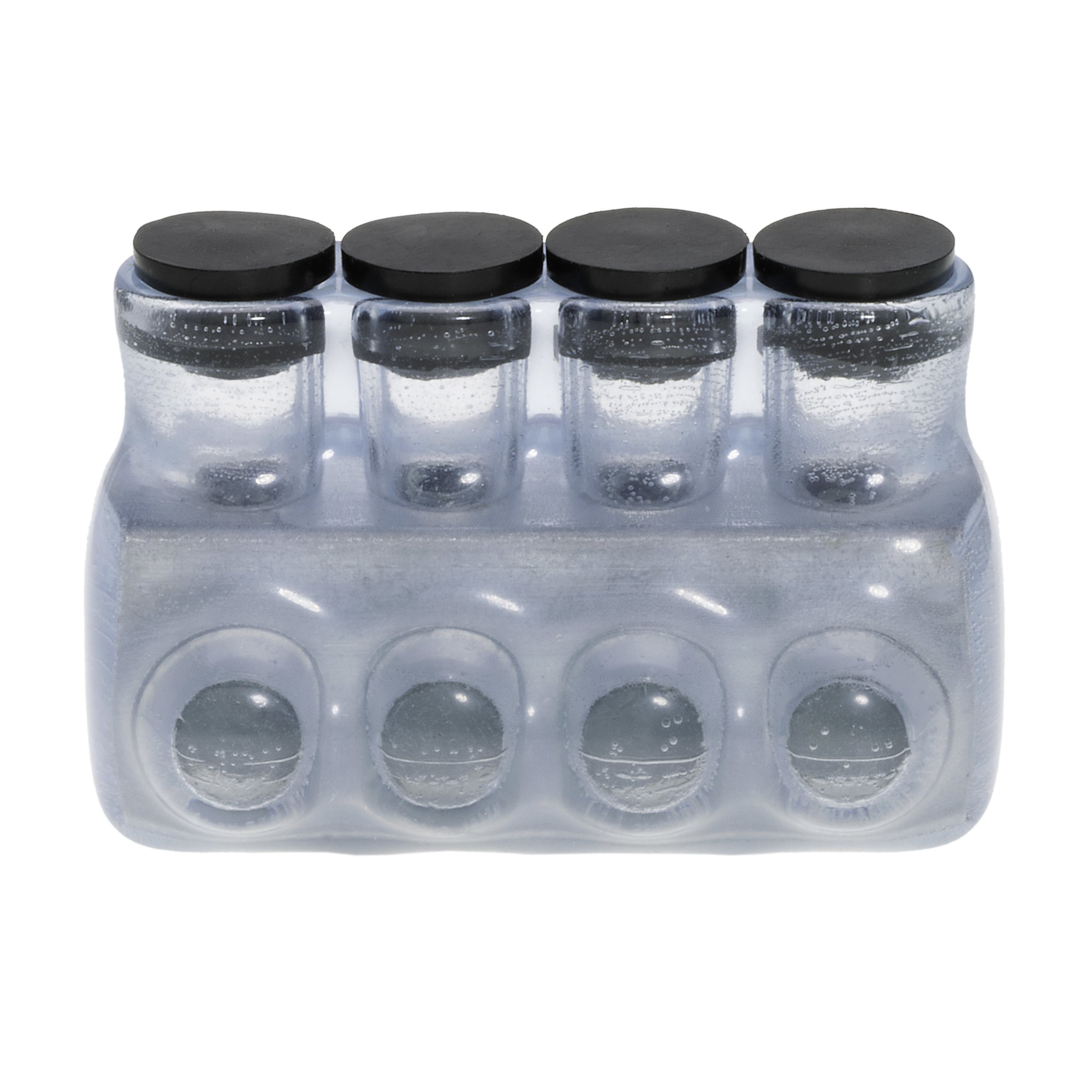

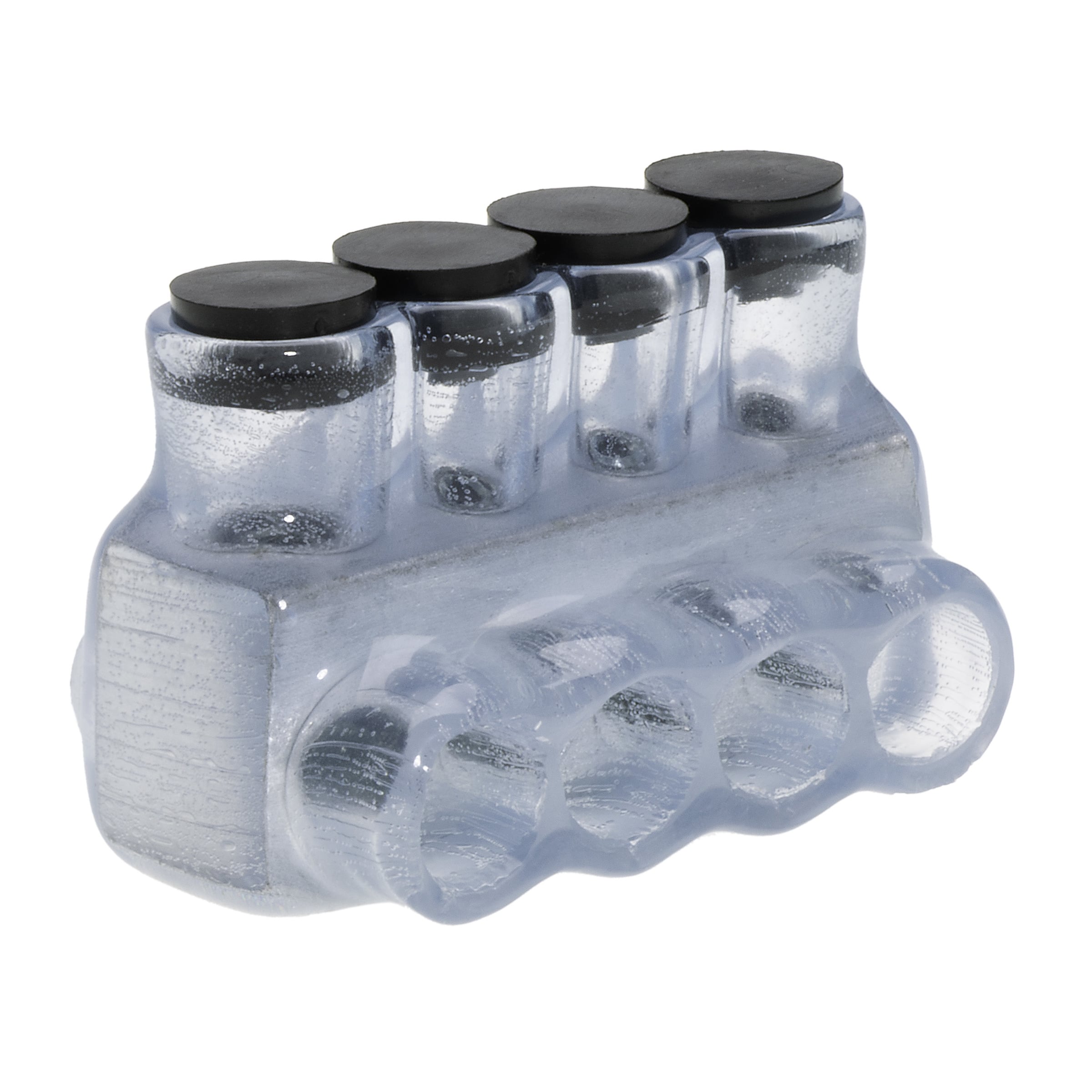

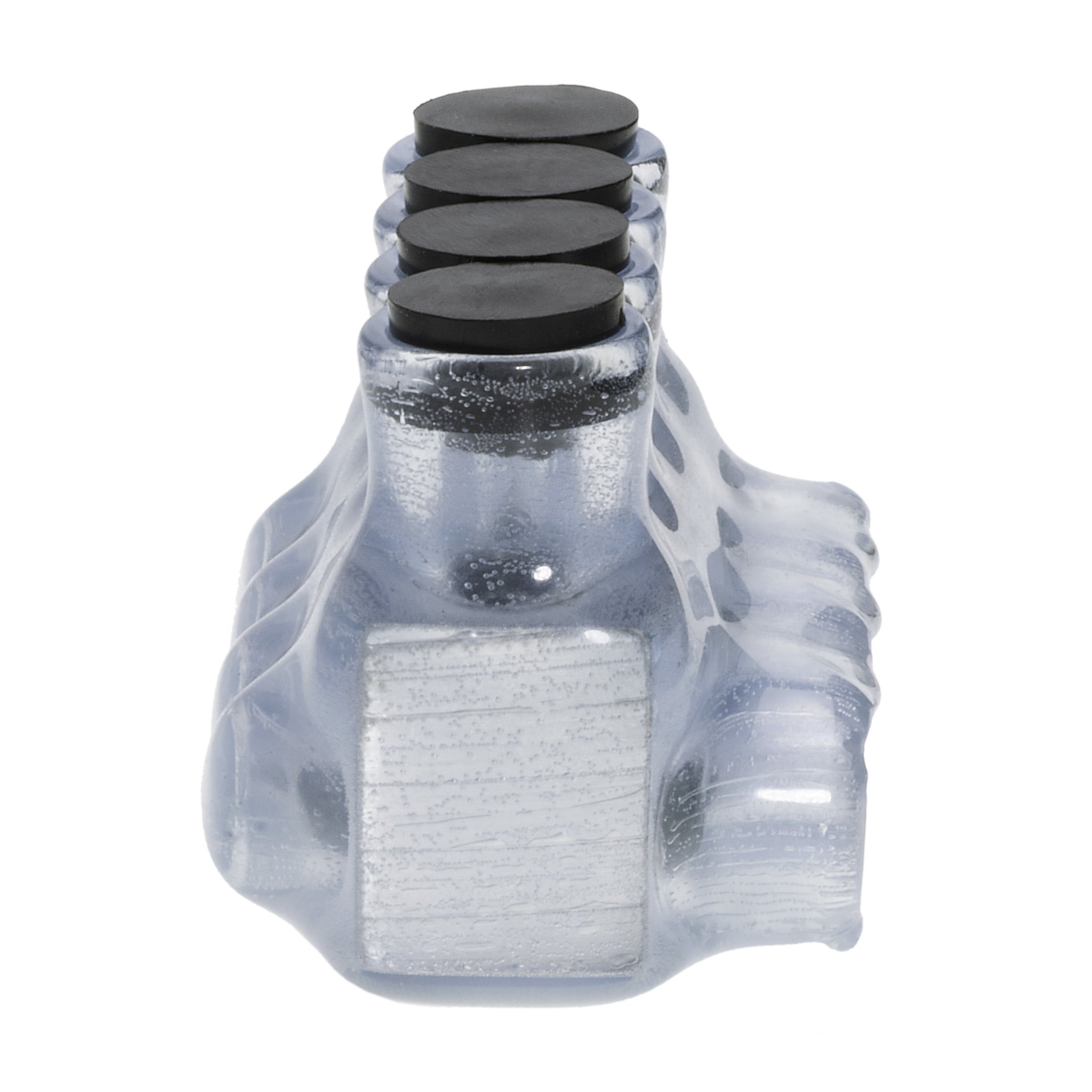

The NSI IPL4-4C Polaris vision tap multi-tap connectors form secure connections between multiple conductors with a transparent rounded design and UV-resistant insulation coating. It installs with a hex key and torque wrench, with no need for cover and taping. Each port comes pre-filled with an oxide inhibitor gel to prevent corrosion.

• Forms secure connections between multiple conductors
• Transparent rounded design
• Installs with a hex key and torque wrench

Product Highlights

The NSI IPL4-4C Polaris multi-tap connector features a transparent design, UV-resistant insulation, and pre-filled oxide inhibitor for secure and reliable connections.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: IPL4-4C
• Country of Origin: US

Technical Specifications

• Type: Multitap
• Color: Clear
• Width: 1.188 Inches
• Finish: Plastisol Insulated
• Height: 1.375 Inches
• Length: 1.97 Inches
• Material: Aluminum
• Standard: cULus
• Conductor Size: 14 to 4 AWG
• Voltage Rating: 600 V
• Country of Origin: US
• Conductor Cu Size Range: 4-14 AWG
• Conductor Al Size Range: 4-12 AWG
• Conductor Type: Copper, Aluminum
• Wire Cable Class: Class B, Class C
• Wire/Cable Openings: 4
• Product Series: IPL Series
• Temperature Rating: 90C, AL9CU
• Application: Splice, Tap
• Number of Conductors/Circuits/Terminals: 4
• Single-Side Entry: Single-Side Entry
• Wire Size: 4-14 AWG
• Wire Type: Class B & C
• Special Features: (4) 4-14 AWG - Dual Rated
• Ul Standard: UL 486A/B
• PRODUCT HEIGHT (IN): 1.36
• PRODUCT LENGTH (IN): 2.06
• PRODUCT WIDTH (IN): 1.24
• Max Torque Value (IN/LBS): 35
