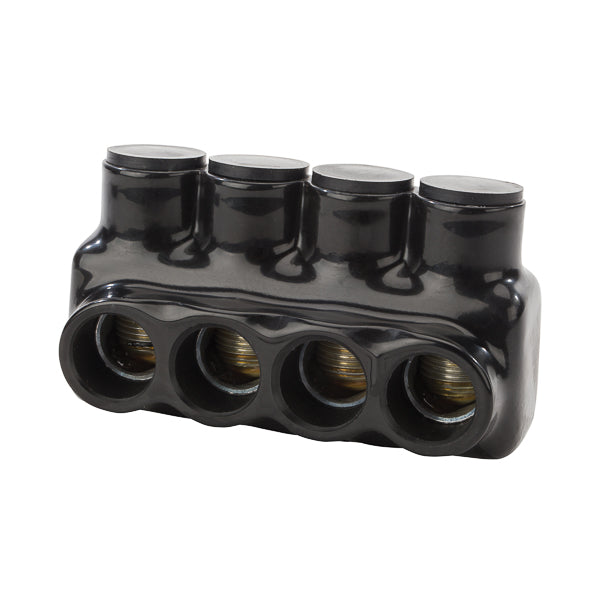

NSI IPL350-4 IPL Single Sided Entry Insulated Multi-Tap Connector 6 AWG to 350 kcmil Aluminum/Copper Conductor

Product Description

The NSI IPL350-4 is an insulated multi-tap connector designed for reliable electrical connections. It accommodates aluminum or copper conductors ranging from six AWG to three hundred fifty kcmil. The connector is suitable for single-sided entry and is particularly effective in environments requiring high dielectric strength.

• Meets voltage rating of six hundred VAC
• Designed to work in temperatures from negative forty-five to ninety degrees Celsius
• Constructed with durable plastisol material

Product Highlights

The NSI IPL350-4 offers a robust solution for connecting multiple conductors with ease. Its features ensure compliance with safety standards while enhancing operational efficiency.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Brand: NSI
• Part Number: IPL350-4 NI

Technical Specifications

• Conductor Size: 6 AWG to 350 kcmil
• Conductor Type: Aluminum/Copper
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Finish: Black
• Dimensions: 4.54 in L x 2.13 in W x 2.46 in H
• Type: Single Sided Entry
• Series: IPL
