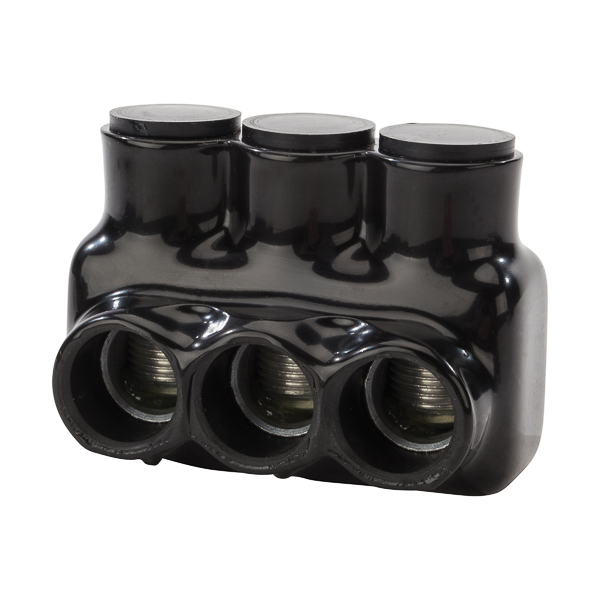

NSI IPL350-3 Insulated Multi-Tap Connector 600 VAC Single Sided Entry

Product Description

The NSI IPL350-3 Insulated Multi-Tap Connector is designed for connecting aluminum and copper conductors ranging from six AWG to three hundred fifty kcmil. This connector features a single-sided entry design, made using high-quality plastisol material for durability and insulation. It is suitable for wire termination in various applications, supporting up to six hundred volts. This model combines safety and reliability in one compact unit.

• Single sided entry for quick connectivity.
• UL rated for use with aluminum and copper conductors.
• Constructed from durable plastisol for environmental protection.

Product Highlights

This multi-tap connector offers efficient wire termination and is ideal for use in electrical installations.

Product Information

Standard Information

• Brand: NSI Industries
• Sub Brand: Polaris Black

Technical Specifications

• Manufacturer Part Number: IPL350-3
• Conductor Size: 6 AWG to 350 kcmil
• Voltage Rating: 600 VAC
• Number of Conductors: 3
• Number of Poles: 1 Pole
• Dimensions: 3.47 in L x 2.13 in W x 2.46 in H
• Temperature Rating: -45 to 90 degrees C
• Material: Plastisol
• Type: Single Sided Entry
• Compliance: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 486B Listed
