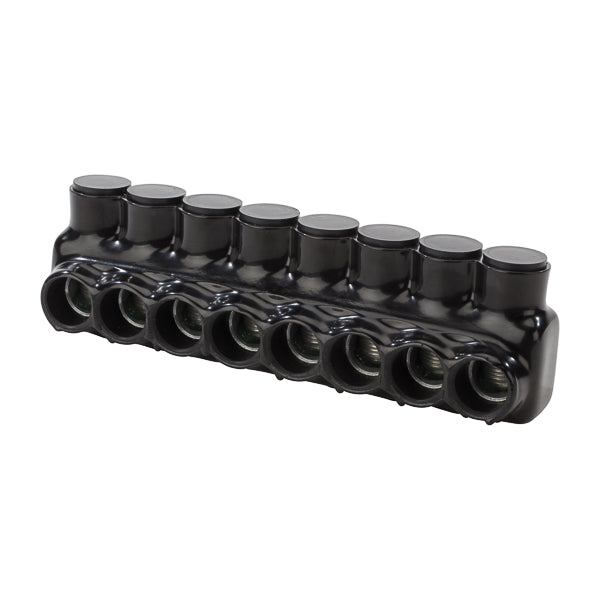

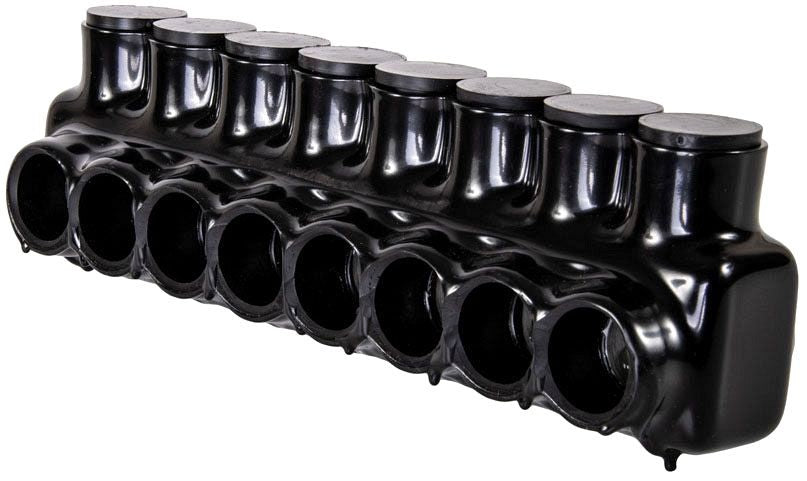

NSI IPL250-8 Insulated Multi-Tap Connector 600 VAC 8 Port Single Sided Entry

Product Description

The NSI IPL250-8 Insulated Multi-Tap Connector is designed for connections from six AWG to two hundred fifty kcmil aluminum or copper conductors. This connector is ideal for use in wire termination applications, particularly in environments needing reliable electrical performance.

• Rated for 600 VAC
• Single sided entry for easy installation
• Durable plastisol material for mechanical protection

Product Highlights

The IPL250-8 connector offers an efficient solution for connecting multiple cables securely. Its single-sided entry design simplifies installation while maintaining electrical integrity.

Product Information

Standard Information

• Brand: NSI Industries
• MPN: IPL250-8

Technical Specifications

• Application: For aluminum and copper cables and wire termination
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 7.24 in L x 2.03 in W x 2.18 in H
• Finish: Black
• Material: Plastisol
• Series: IPL
• Specifications: 1 Pole, 8 Conductor, Class B and C Wire Type, 5/16 in Hex
• Temperature Rating: -45 to 90 deg C
• Voltage Rating: 600 VAC
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, AL9CU Approved, cULus Listed, UL 486B
