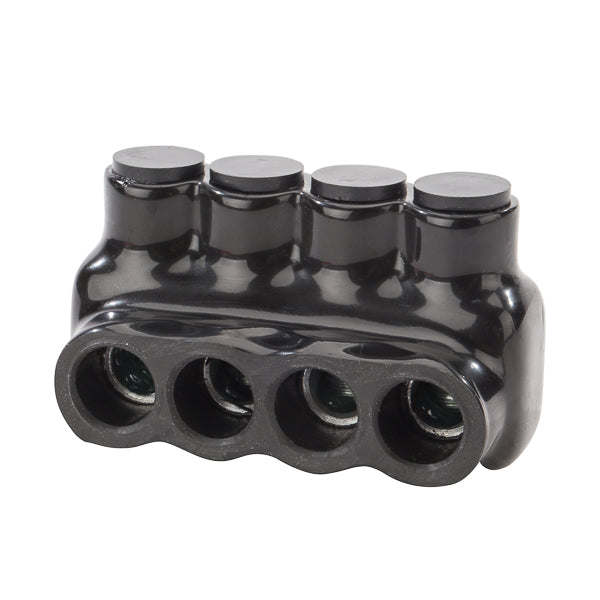

NSI IPL1/0-4 Single Sided Entry Insulated Multi-Tap Connector 600 V (14 to 1/0 AWG)

Product Description

The NSI Polaris IPL1/0-4 is a single sided entry insulated multi-tap connector with the MPN IPL1/0-4. It accommodates wire sizes from fourteen to one/0 AWG and is designed for use with aluminum and copper conductors. The connector provides a reliable electrical connection for various applications while maintaining safety standards.

• Insulated against electrical shock with high-dielectric strength plastisol.
• Rated for up to 600 volts with a temperature tolerance from negative forty-five to ninety degrees Celsius.
• Features wire entry ports for easy installation and maintenance.

Product Highlights

The NSI Polaris IPL1/0-4 multi-tap connector is ideal for ensuring secure connections in electrical systems, especially in scenarios requiring multiple conductor interconnects.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Brand: NSI

Technical Specifications

• Conductor Size: 14 to 1/0 AWG
• Voltage Rating: 600 VAC
• Material: Plastisol
• Temperature Rating: -45 to 90 degrees Celsius
• Dimensions: 2.89 inches L x 1.5 inches W x 1.688 inches H
• Type: Single Sided Entry
• Series: IPL
• Conductor Type: Aluminum/Copper
