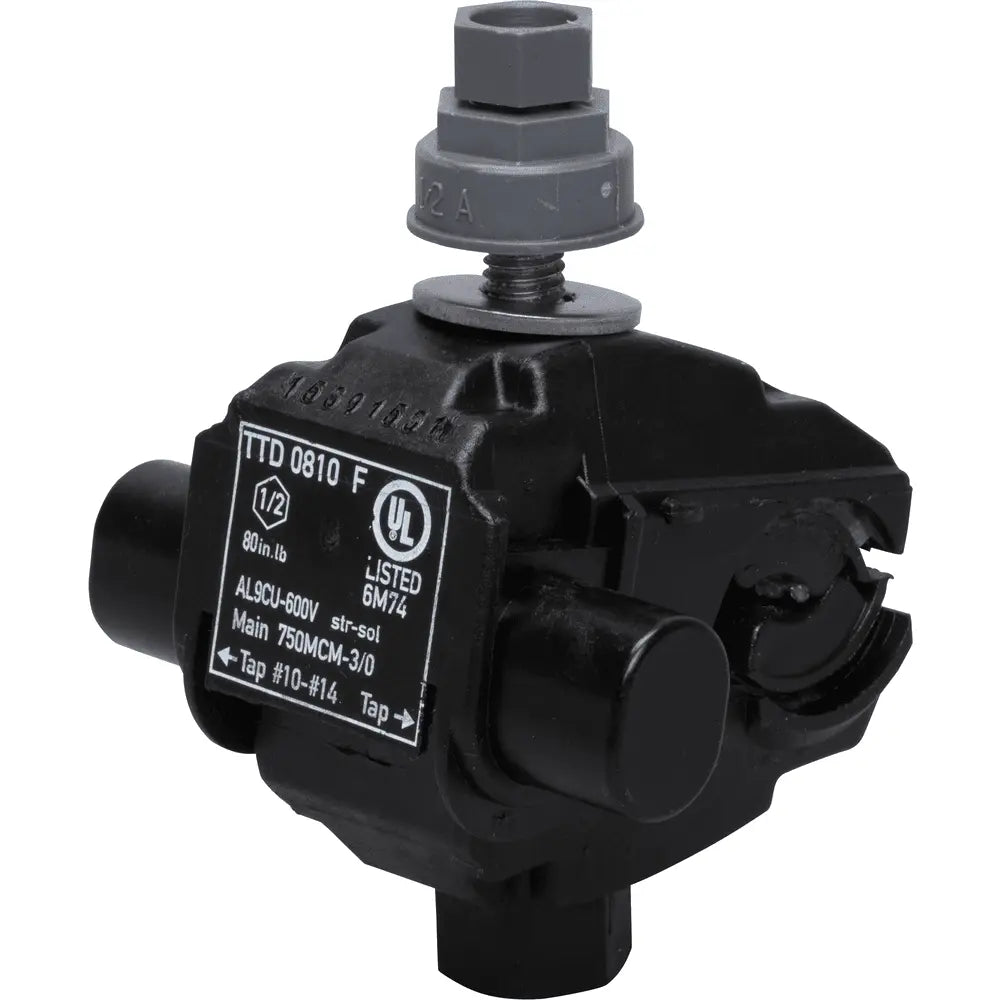

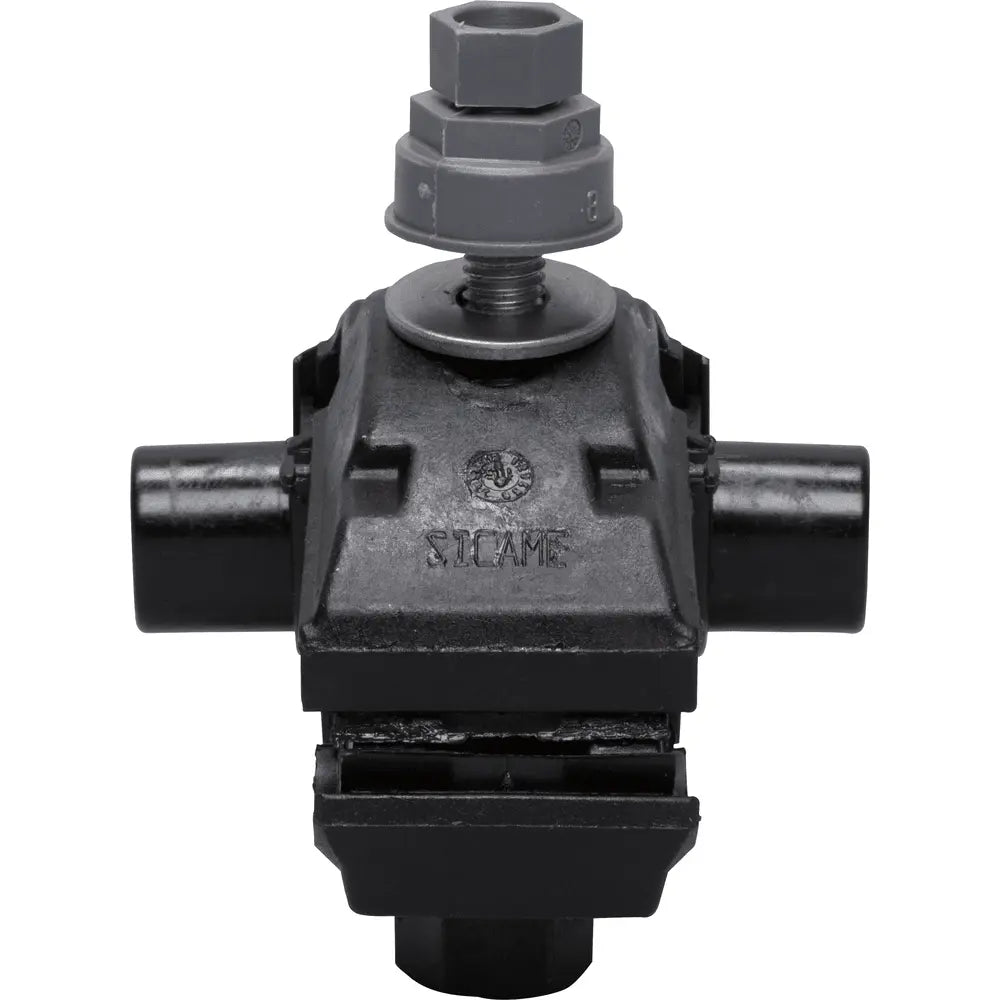

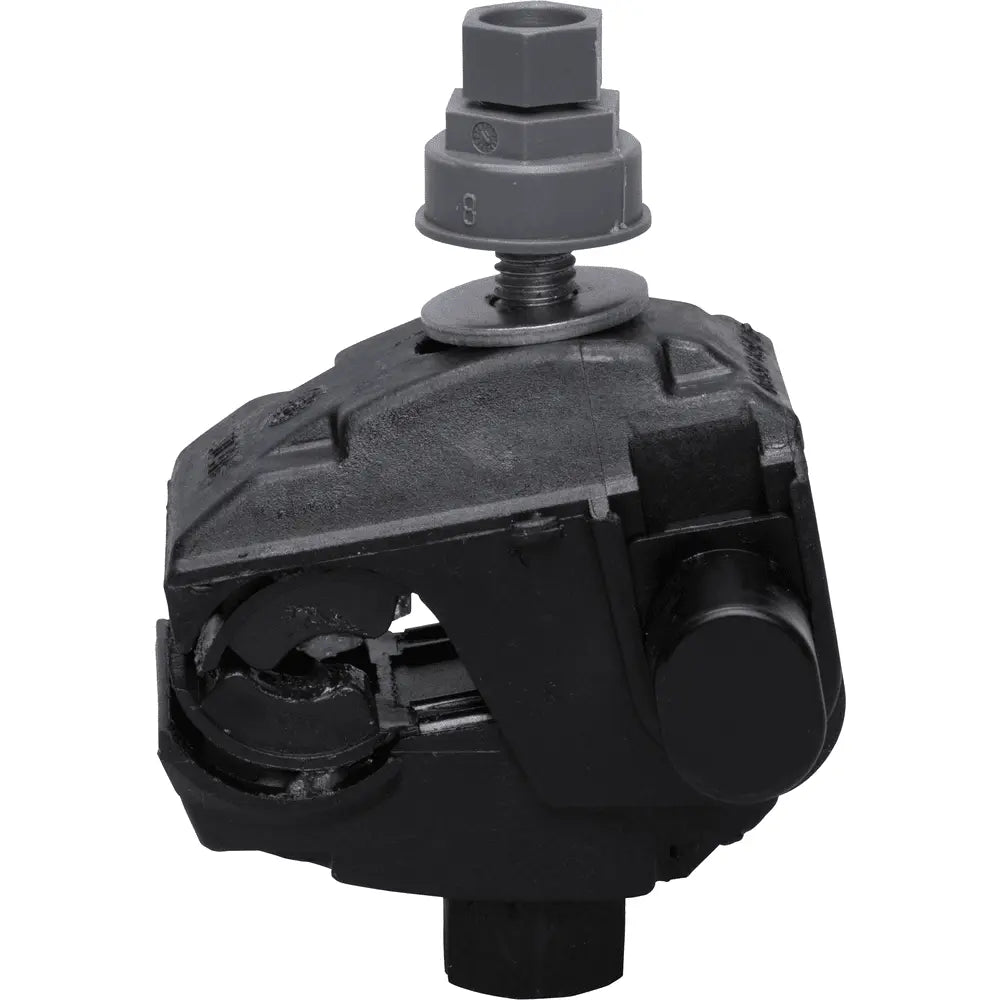

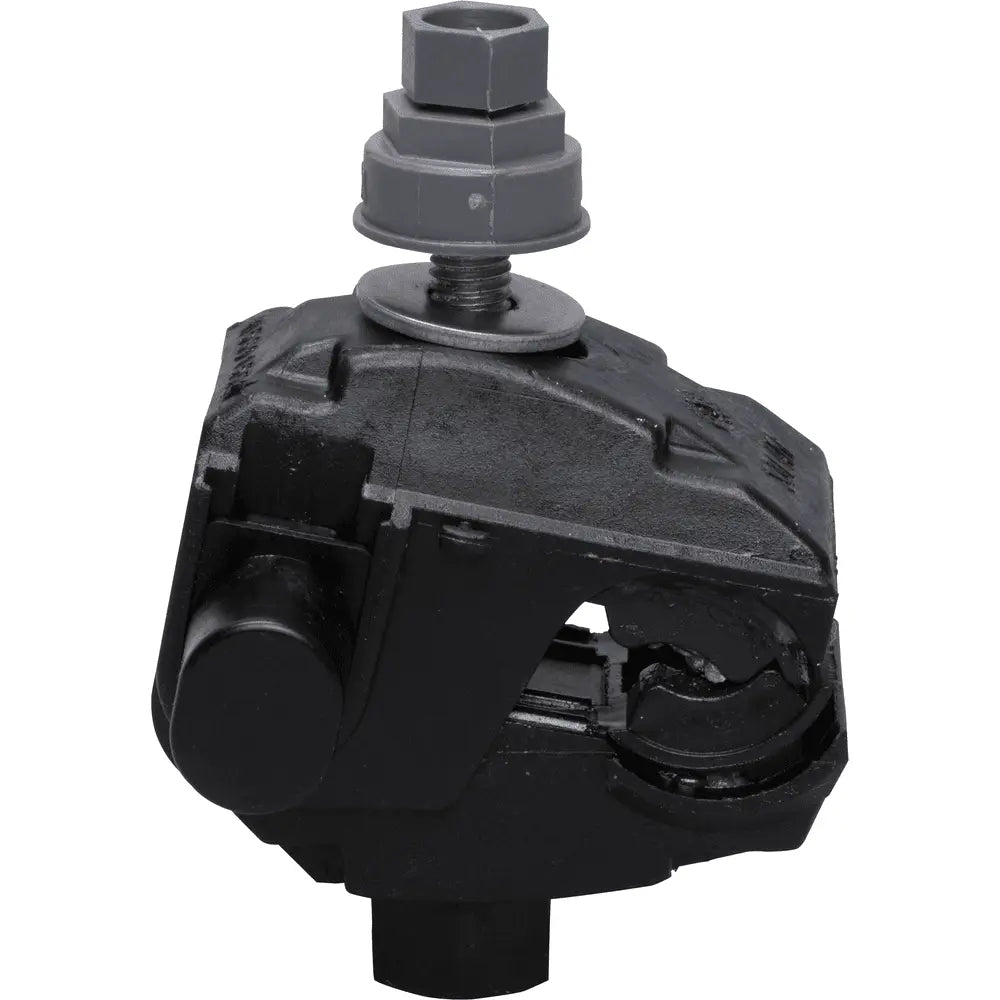

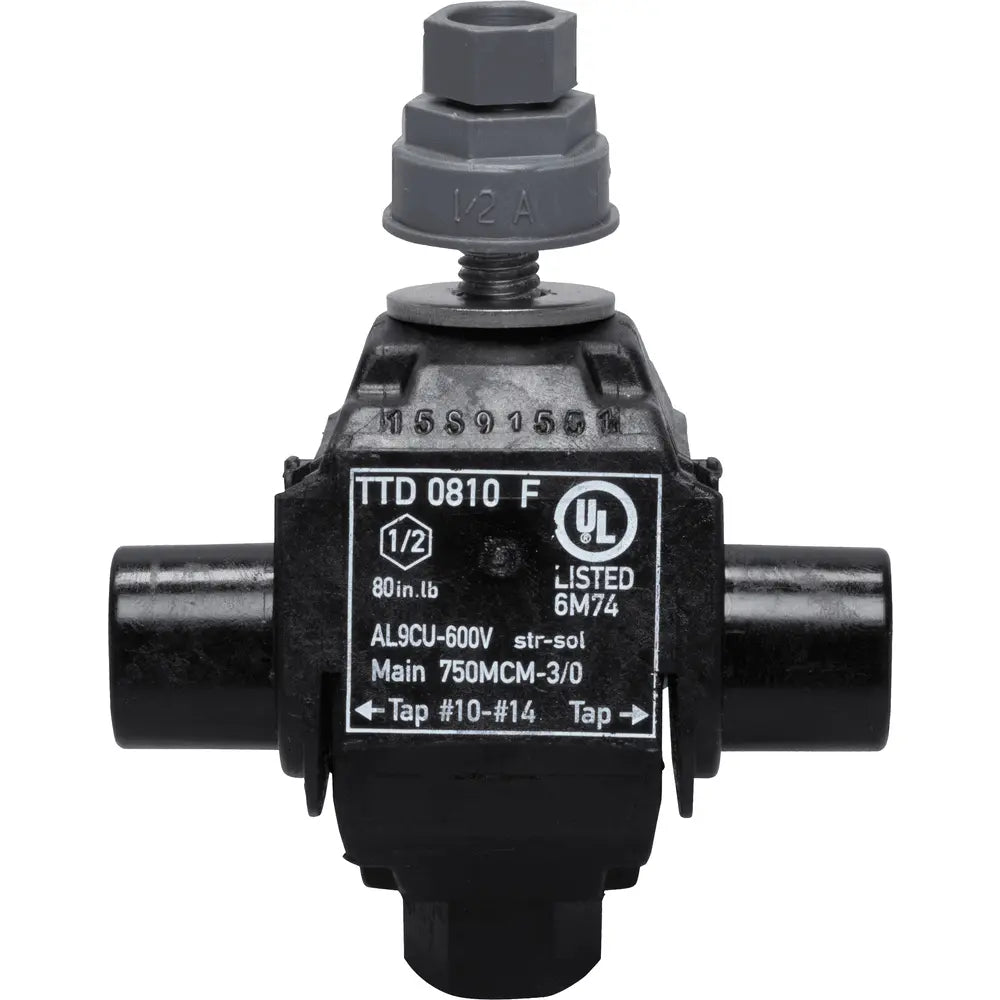

NSI IPCS7501 Insulation Piercing Connector 10 AWG to 750 MCM

Product Description

The NSI IPCS7501 Insulation Piercing Connector is designed for efficient wire connection without the need for stripping. This connector accommodates wire sizes from ten AWG up to seven hundred fifty MCM while ensuring safety and insulation. It allows installation on energized circuits without direct contact, making it practical for various electrical applications.

• Rated for use on both aluminum and copper conductors
• Compatible with a wide range of wire sizes and types
• Includes exclusive turbo spacer for easy installation

Product Highlights

This connector provides a safe and reliable solution wherever electrical installations are required without the need for direct contact with live parts.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSI

Technical Specifications

• Conductor Size: Main: 3/0 to 750 MCM, Tap: 14 AWG to 10 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 194°F
• Environmental Conditions: Wet/Dry Location
• Material: Fiber Reinforced Thermal Plastic
• Color: Black
• Dimensions: 2.60 in L x 2.40 in W x 3.70 in H
• Weight: 0.35 Pounds
• Standard: UL
