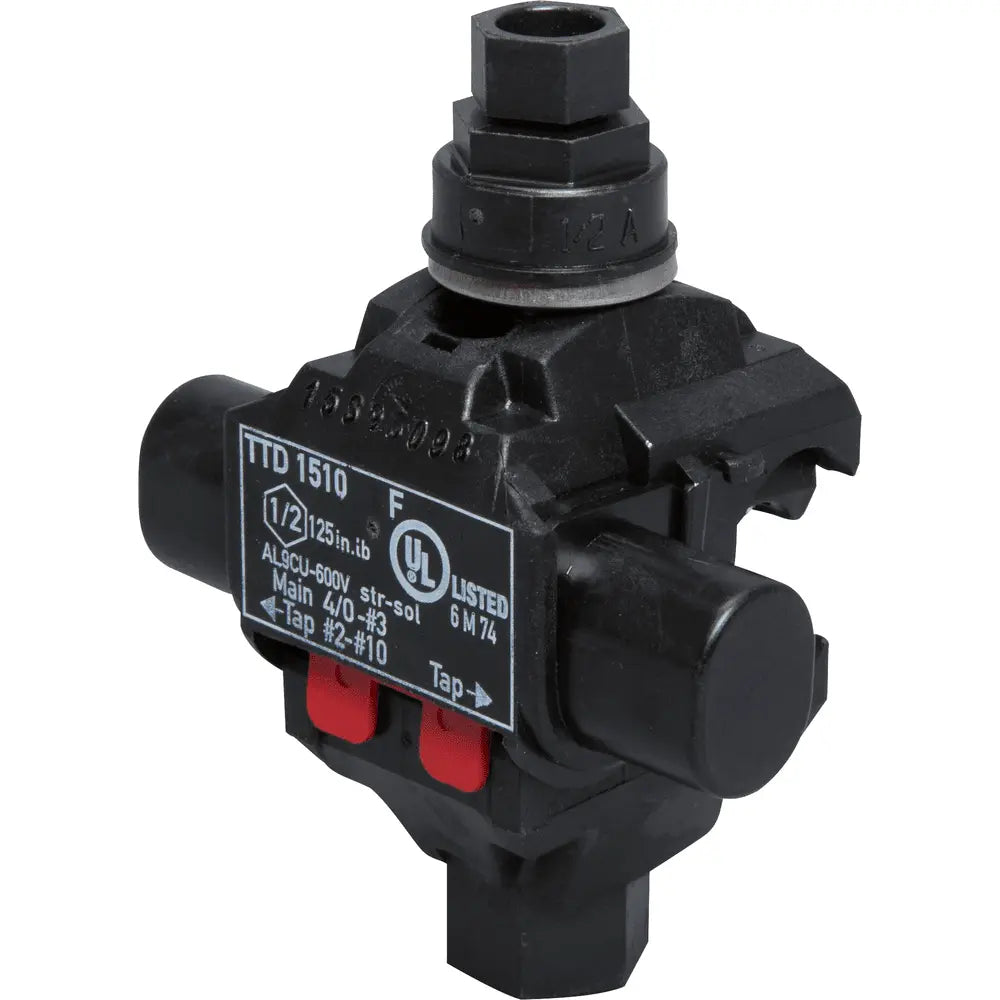

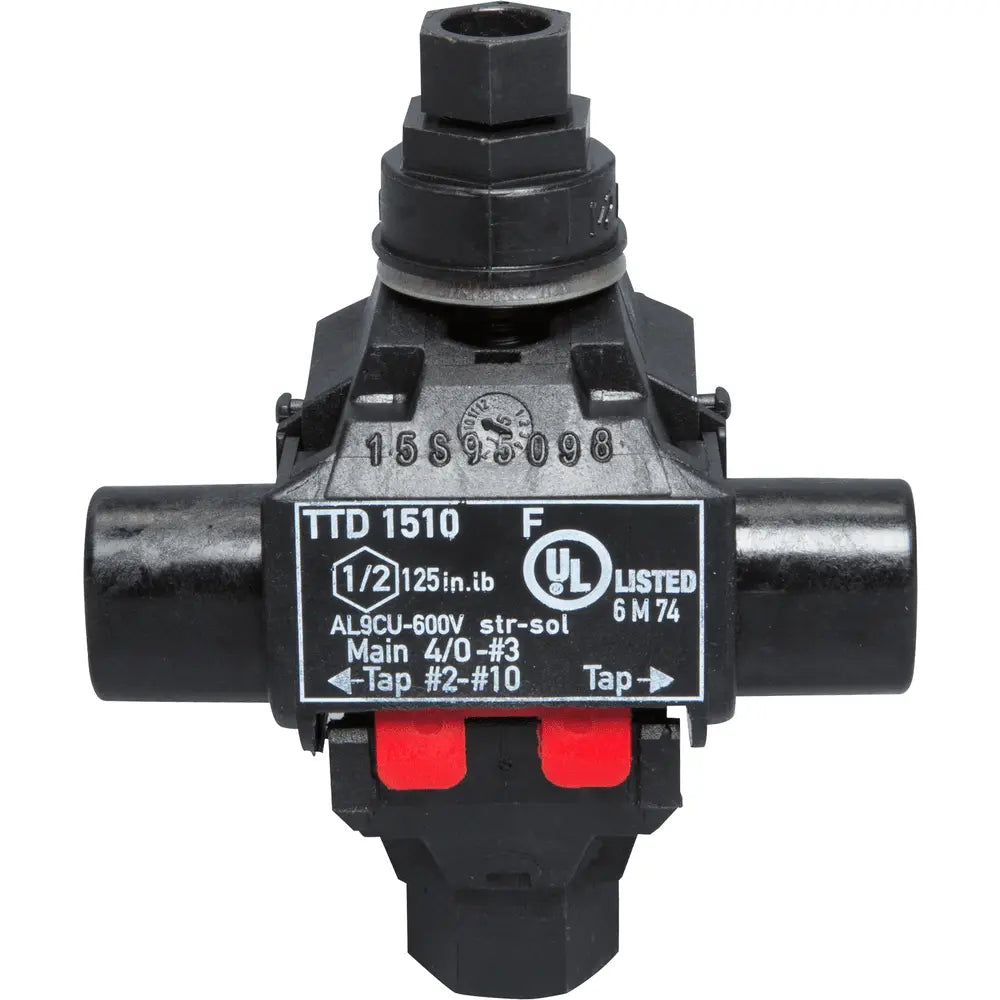

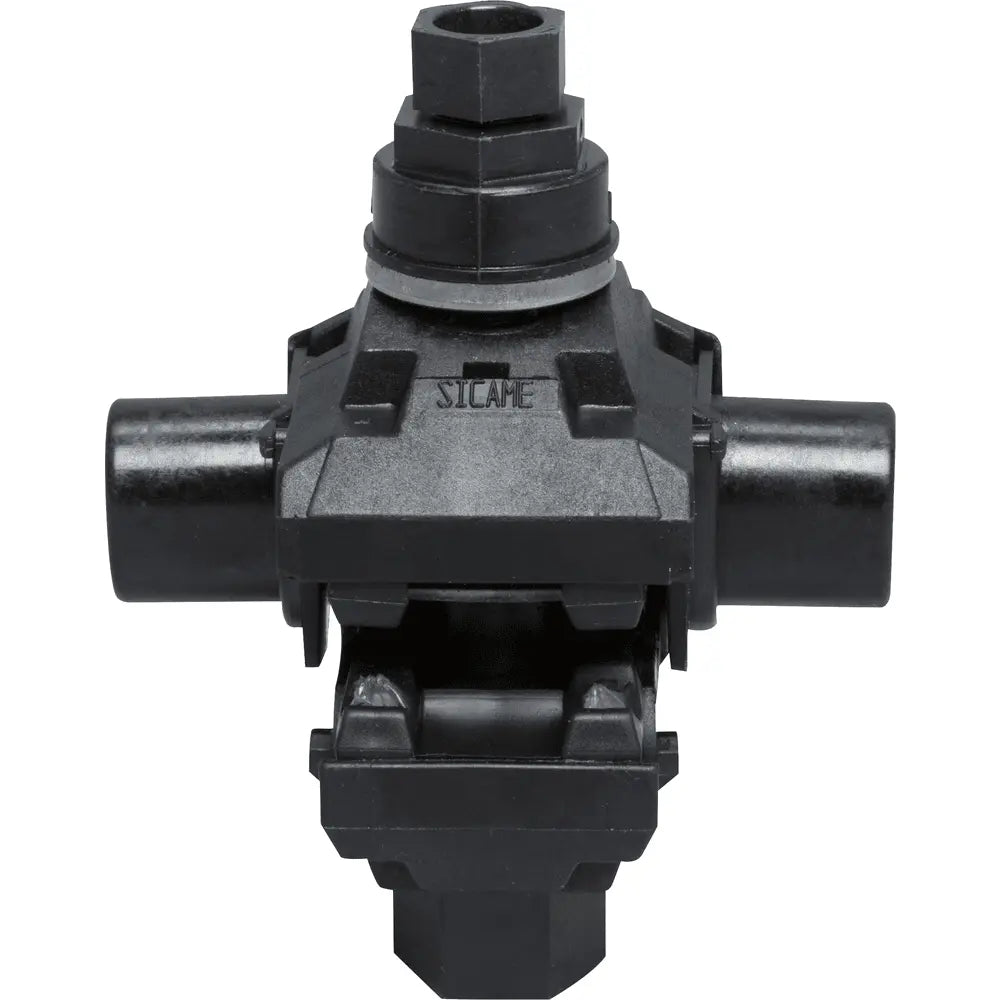

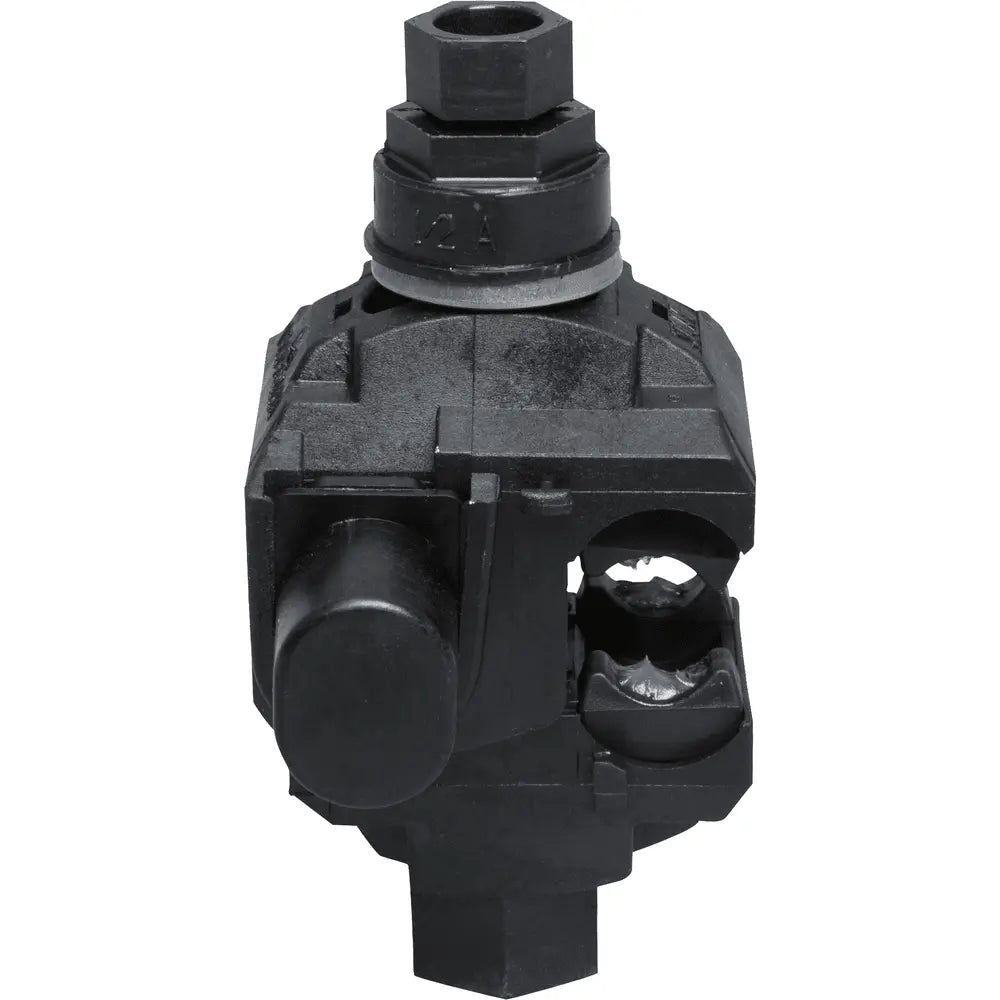

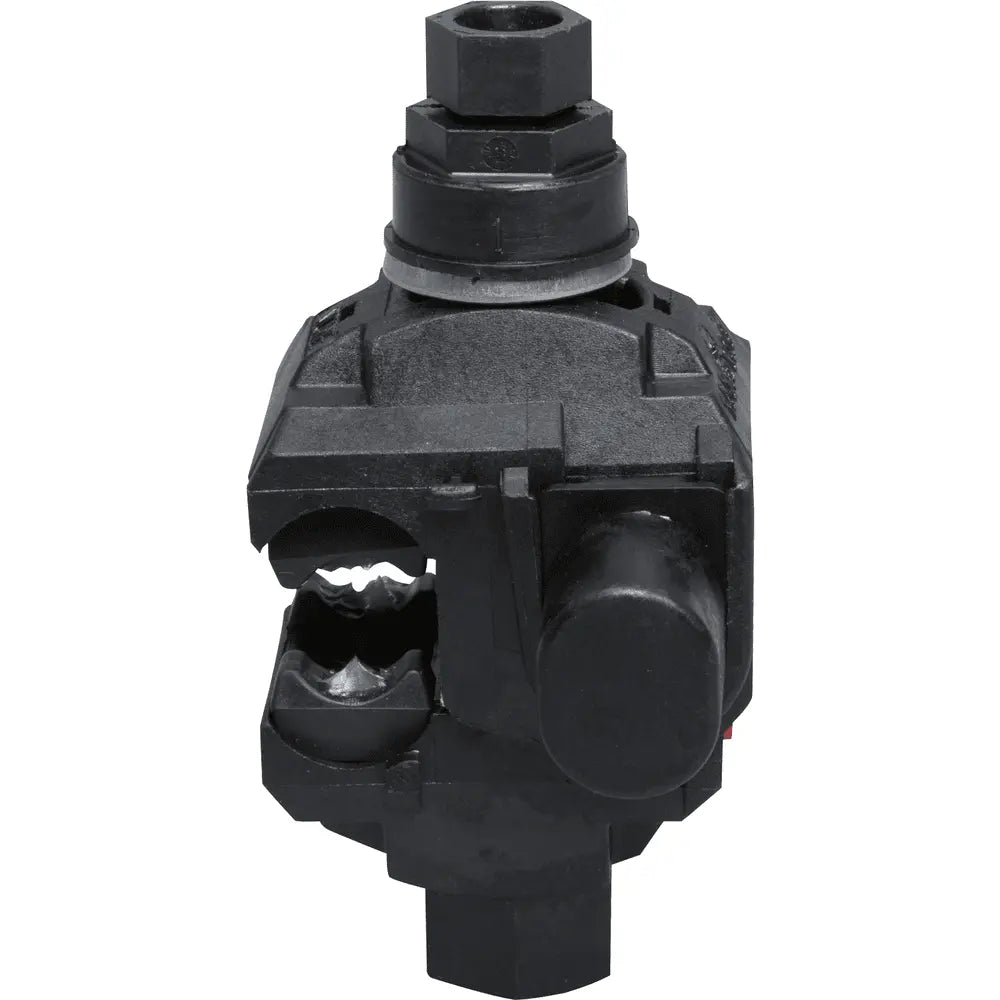

NSI IPCS4002 Insulation Piercing Connector 4/0-2 AWG

Product Description

The NSI IPCS4002 Insulation Piercing Connector is designed for use with conductors ranging from three AWG to four AWG. It is suitable for both copper and aluminum conductors. This connector offers quick and easy installation without the need to strip wire. It can be safely used on energized lines, eliminating contact risks during installation.

• Suitable for use with copper and aluminum conductors.
• Designed for conductors measuring between three AWG to four AWG.
• Made from durable thermoplastic material and UL listed.

Product Highlights

This connector enhances safety and efficiency, featuring a turbo spacer that keeps the tap side open during tightening. It is watertight and corrosion-resistant, suitable for wet and dry locations.

Product Information

Standard Information

• Brand: NSI
• MPN: IPCS4002

Technical Specifications

• Conductor Size: 3 AWG to 4/0 AWG
• Voltage Rating: 600 VAC
• Material: Thermoplastic
• Weight: 0.26 Pounds
• Dimensions: 2.2 inches Length x 1.8 inches Width x 3.1 inches Height
• Temperature Rating: 194 °F
• Environmental Conditions: Wet/Dry Location
• Connection: Mechanical
• Standards: UL Listed
