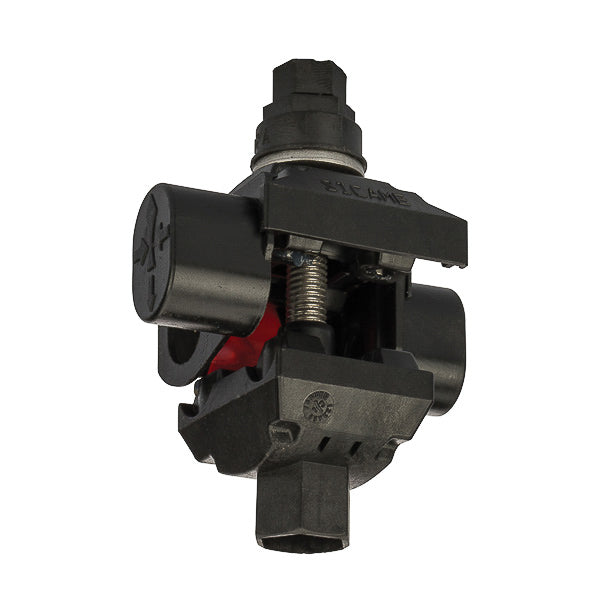

NSI IPCS1010 EASY-TAP Piercing Insulation Connector Dual Rated 8 to 1/0 AWG Aluminum/Copper Conductor

Product Description

The NSI IPCS1010 is a dual-rated piercing insulation connector designed for use with 8 to 1/0 AWG aluminum and copper conductors. This connector ensures reliable connections while allowing installation without the need to strip wires. It is suitable for field splicing, connecting energized conductors, and provides a watertight seal to prevent corrosion.

• Dual rated for both aluminum and copper conductors
• Unique design allows installation on live wires
• Manufactured from fiber reinforced thermal plastic for durability

Product Highlights

This connector provides excellent electrical performance and is designed for safe use in various applications. Its clamping mount style ensures secure attachment to conductors, while the fiber reinforced materials enhance the component's longevity and strength.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Conductor Size: 8 to 1/0 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Current Rating for Copper: 190 A
• Current Rating for Aluminum: 150 A
• Dimensions: 2.2 in L x 1.8 in W x 3.1 in H
• Mounting Type: Clamping
• Material: Fiber Reinforced Thermal Plastic
