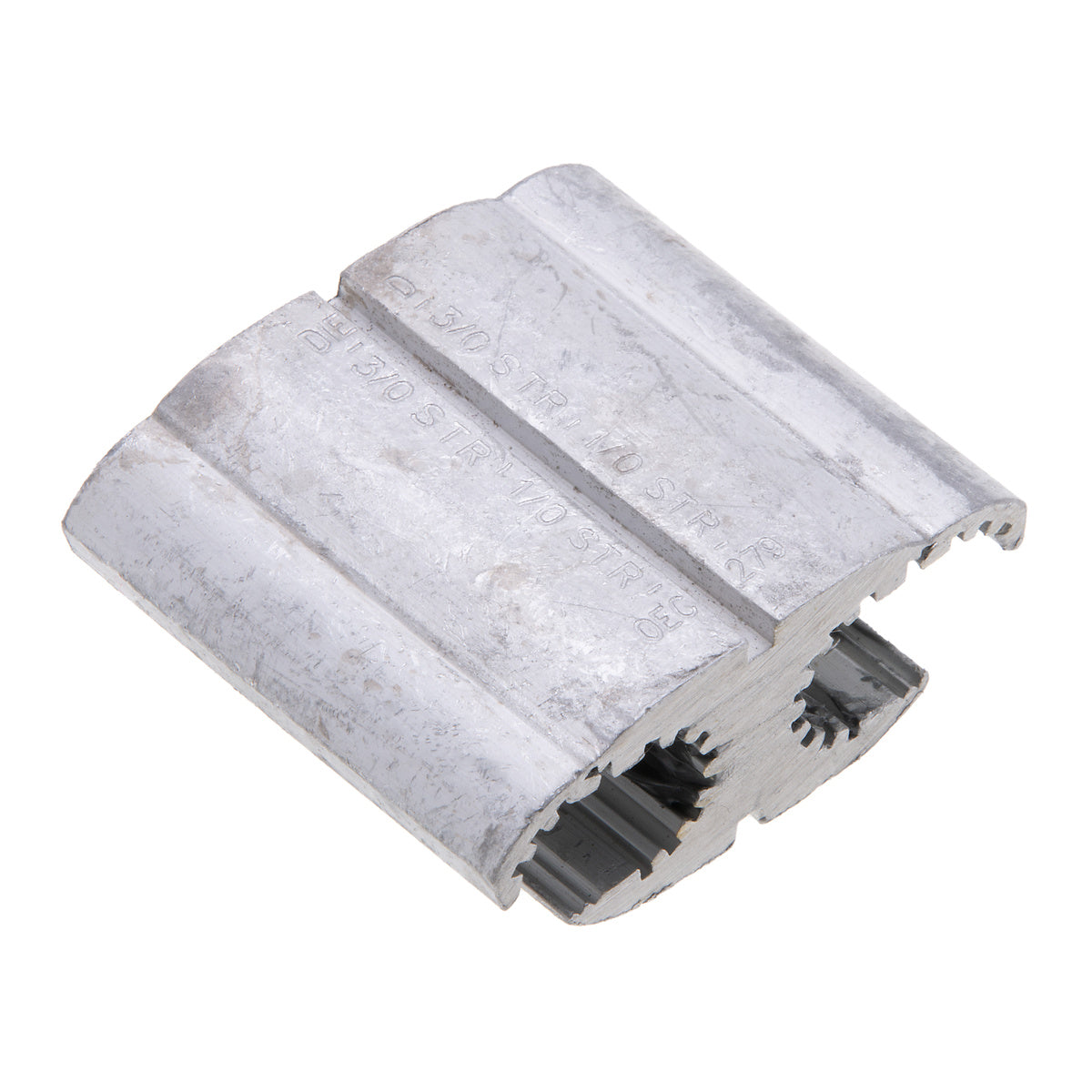

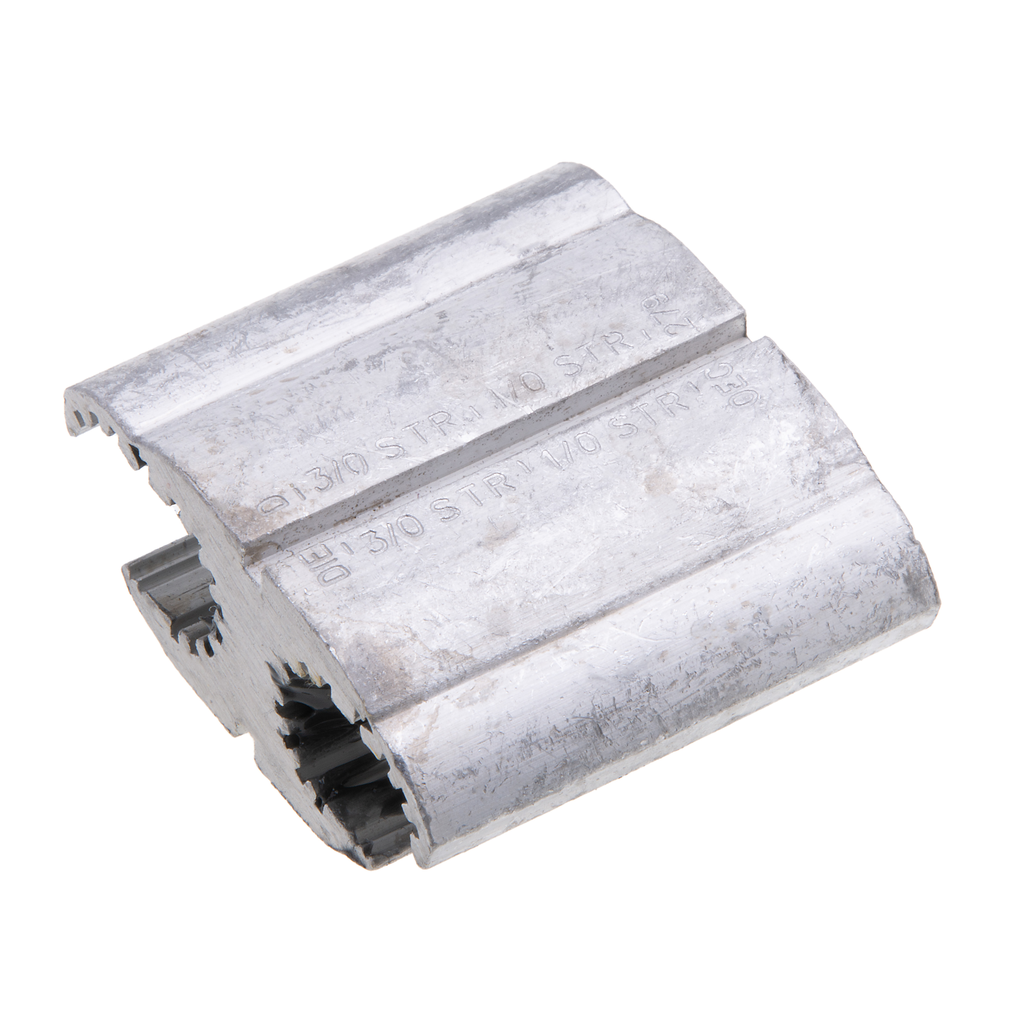

Nsi Industries WRD279 Wide Range Tap Connector 1-4/0 AWG

Product Description

The NSI INDUSTRIES WRD279 dual rated wide range tap connectors are used for combinations of aluminum and aluminum-copper conductors. Standard compression tools and dies install in all sizes. They have formable ribs to provide broader contact area. Fold-in tabs provide positive tab interlock as tool closes. Made from high strength aluminum alloy. All connectors are reversible. Rated 600 Volts.

• For combinations of aluminum and aluminum-copper conductors
• Standard compression tools and dies install all sizes
• Formable ribs provide broader contact area

Product Highlights

Dual rated for aluminum and aluminum-copper conductors, these connectors install easily with standard compression tools and dies.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: WRD279
• Country of Origin: India

Technical Specifications

• GTiN: 00662381003263
• Type: Wide Range Tap Connectors
• Brand: NSI Industries
• Color: Aluminum
• Width: 2.236 in
• Finish: Aluminum
• Height: 0.866 Inch
• Length: 1.791 Inch
• Voltage: 600 Volt
• Material: Aluminum
• Tap Size: 1 AWG
• Sub Brand: Compression
• Product UPC: 66238100326
• 12-Digit UPC: 662381003263
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 1 AWG
• Country of Origin: India
• Voltage Rating: 600V
• Conductor Type: ACSR/Compact/Solid/Standard
• Shape: H
• Dimensions: 1.791 in L x 2.236 in W x 0.866 in H
• Series: WRD
• Application: Terminate, Splice, Tap Power Connectors
• Connection Type: Compression
• Mounting Type: Tap Connector
• Size: 1-4/0 AWG
• Special Features: A Groove-2/0 1/0 1 (ACSR) - 3/0 2/0 4/0 (STR) - 4/0 3/0 2/0 (SOL) - B Groove-2/0 1/0 1 (ACSR)-3/0 2/0 1/0 (STR)-3/0 2/0 (SOL)
