Nsi Industries W20-1 Wedge Clamp 4 to 1/0 Awg

Product Description

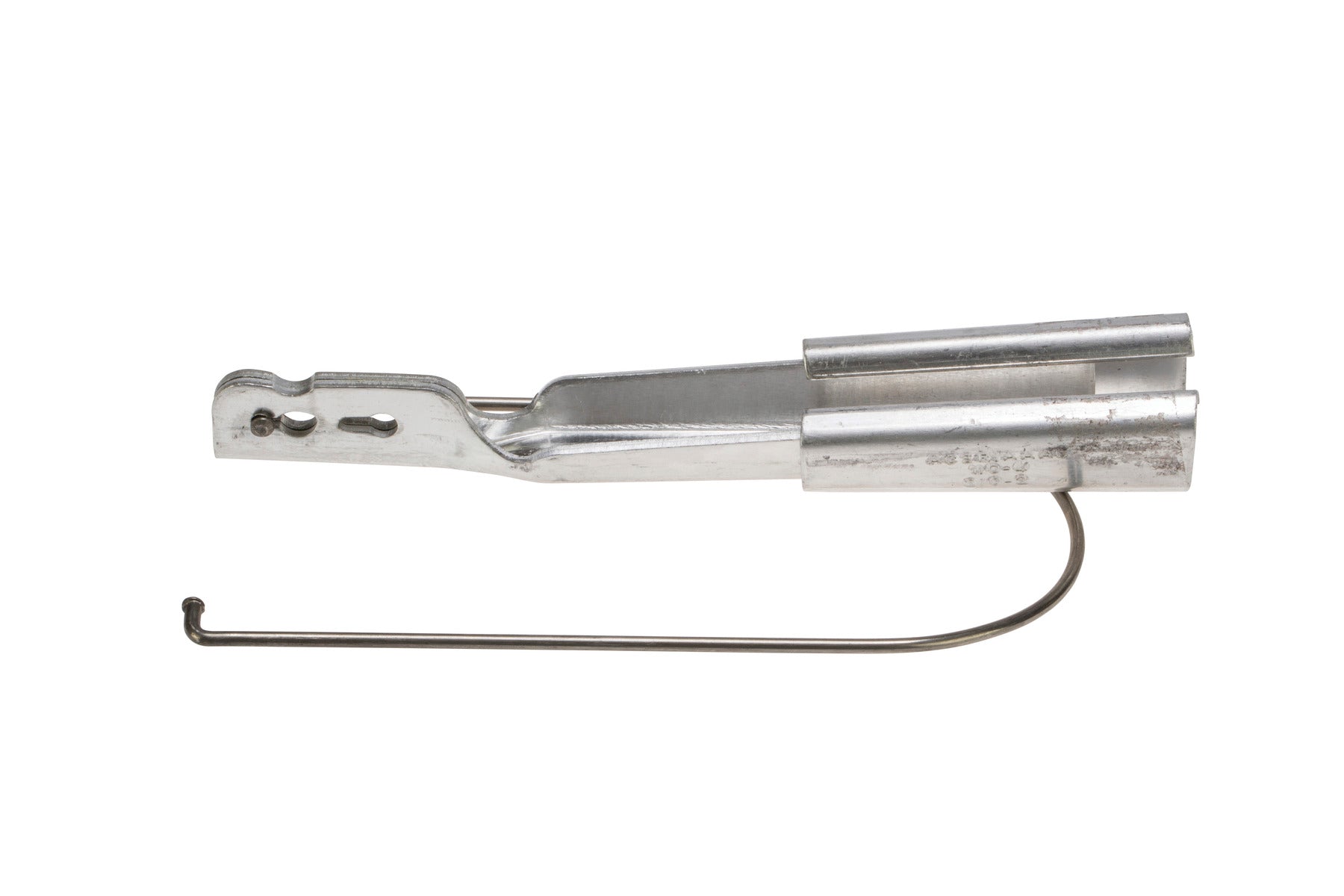

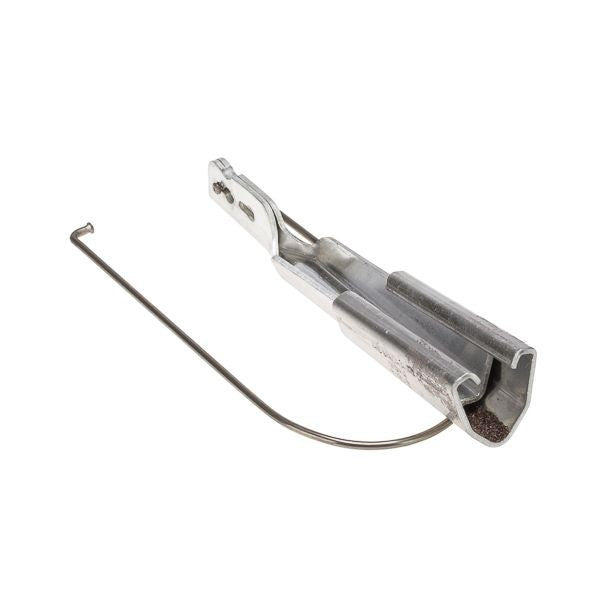

The NSI INDUSTRIES W20-1 wedge clamp is an aluminum service wedge clamp designed for 4 to 1/0 AWG ACSR. It is used for dead-ending self-supporting drop wire and can be attached to a bare neutral at any point. It grips ACSR, AAAC, or aluminum conductors and is made from high-strength aluminum alloy.

• Used for dead-ending self-supporting drop wire
• Can be attached to bare neutral in any point in the span
• Grips ACSR, AAAC or aluminum conductors

Product Highlights

Aluminum wedge clamp for dead-ending self-supporting drop wires, gripping ACSR, AAAC, or aluminum conductors.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: W20-1

Technical Specifications

• Type: CLAMPS
• Voltage Rating: 600V
• Material: Aluminum
• UPC: 662381082817
• UNSPSC: 39121431
• Ul Standard: UL 486A
• Conductor Type: ACSR/Solid/Stranded Aluminum
• Capacity: 800 lb
• Series: W Series
• Temperature Rating: 90 deg C
• Conductor Size: 4 to 1/0 AWG
• Catalog ID: NSIW20-1
• Standard & Approvals: UL 486A/B
• Application: For dead ending self supporting drop wire applications
