Nsi Industries TAC212WL Chime Kit 10VA (2 Push-Buttons, 7.25 x 4.75 x 2.5 in)

Product Description

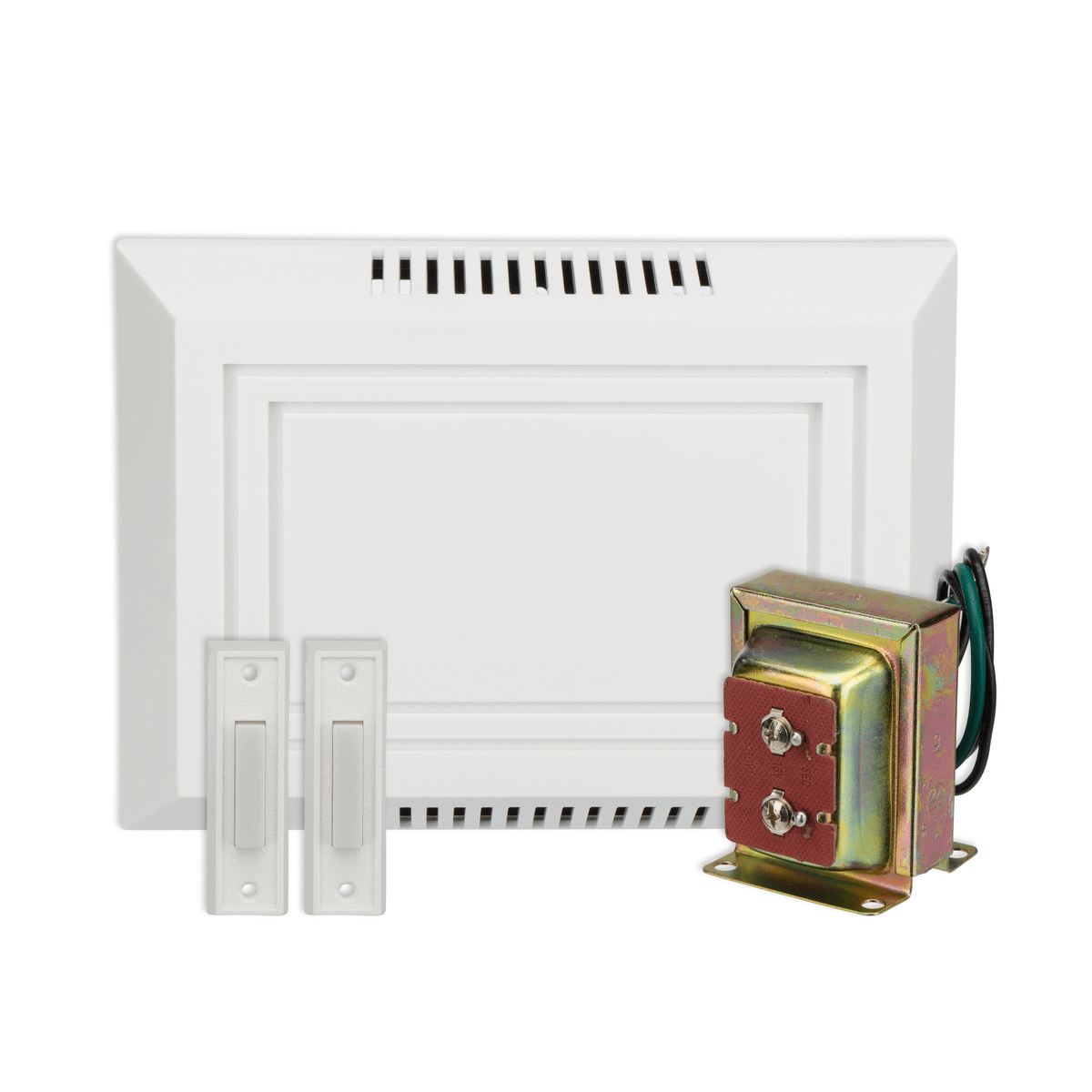

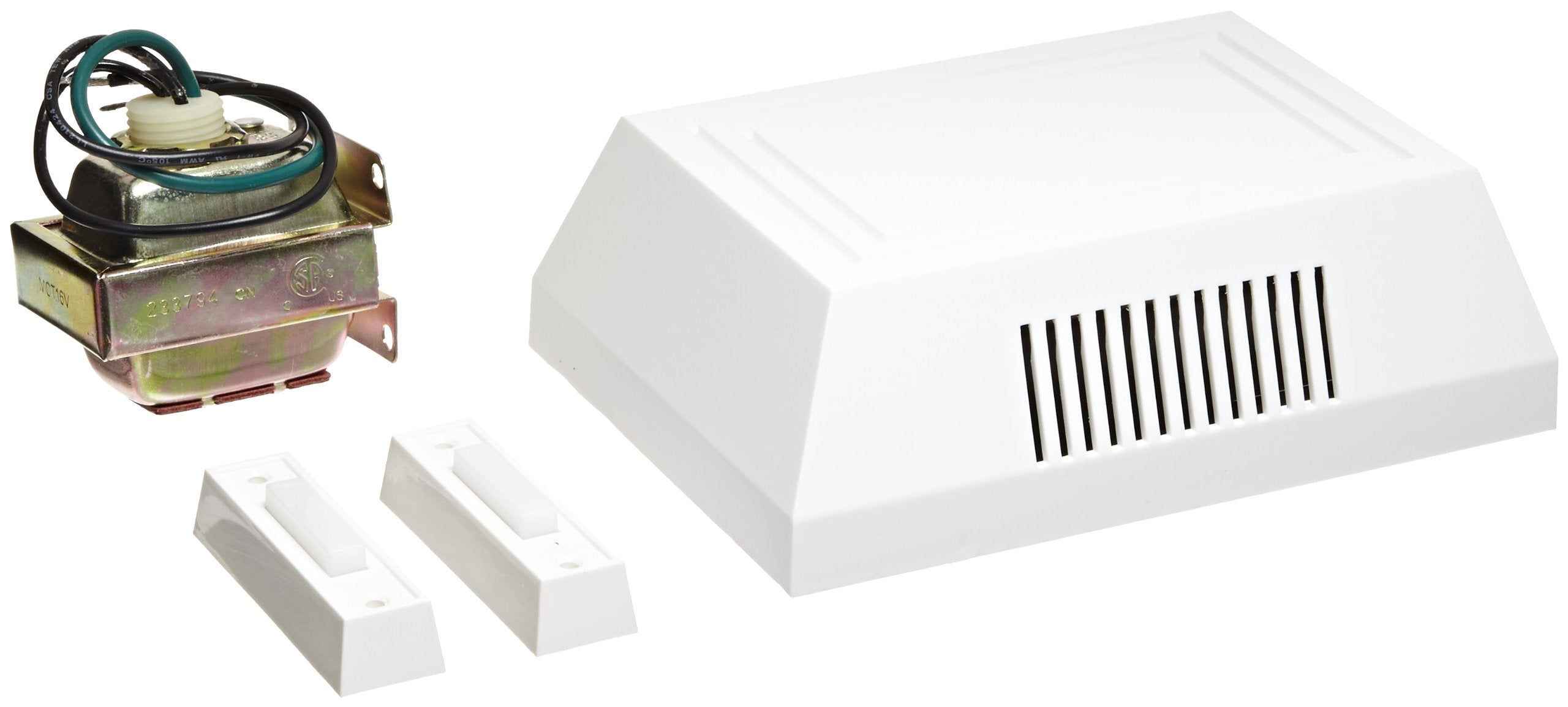

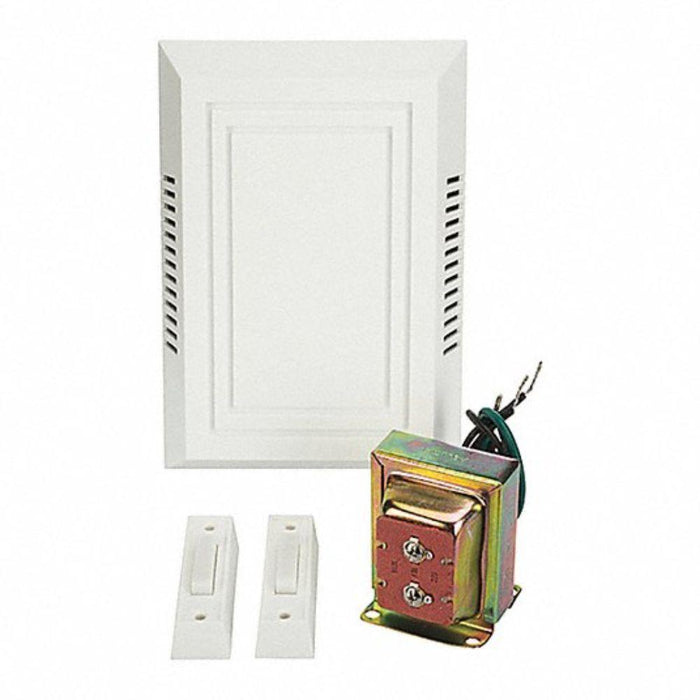

The NSI Industries TAC212WL is a 16 VAC chime kit that includes a 10 VA transformer and two bar-type push-buttons (one illuminated and one non-illuminated) for residential and light commercial door chime applications. The unit mounts by screw-fastening to a fully enclosed steel base and measures 7.25 x 4.75 x 2.5 inches. The chime provides a two-tone signal and can operate from bell-ringing transformers or batteries.

• Includes 16 VAC chime, 10 VA transformer, and two bar-type push-buttons (one illuminated, one non-illuminated).
• Screw-mount installation on a fully enclosed steel base; dimensions 7.25 x 4.75 x 2.5 in (L x W x D).
• Rated 16 VAC, 10 VA; two-tone output; compatible with bell-ringing transformers or battery power.

Product Highlights

16 VAC two-tone chime kit with 10 VA transformer and two push-buttons; screw-mount steel base; 7.25 x 4.75 x 2.5 in.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: TAC212WL
• Country of Origin: United States

Technical Specifications

• Brand: NSI Industries
• MPN: TAC212WL
• Product Type: Chime kit / Transformer
• Output Voltage: 16 VAC
• Transformer VA: 10 VA
• Input Voltage: 120 VAC
• Push Buttons: 1 illuminated, 1 non-illuminated
• Tone: 2-tone
• Dimensions (L x W x D): 7.25 x 4.75 x 2.50 in
• Mounting Type: Screw mount (fully enclosed steel base)
• Material: Plastic (chime housing) with steel base
• Application: Residential and commercial chime
• Power Options: Bell-ringing transformers or batteries
• Weight: 2.2 lb (998 g)
• Number of Items: 1
• GTIN/UPC: 786261960542
• Country of Origin: United States
