Nsi Industries T-42CGC Combination Type T Conduit Body (3/4 in)

Product Description

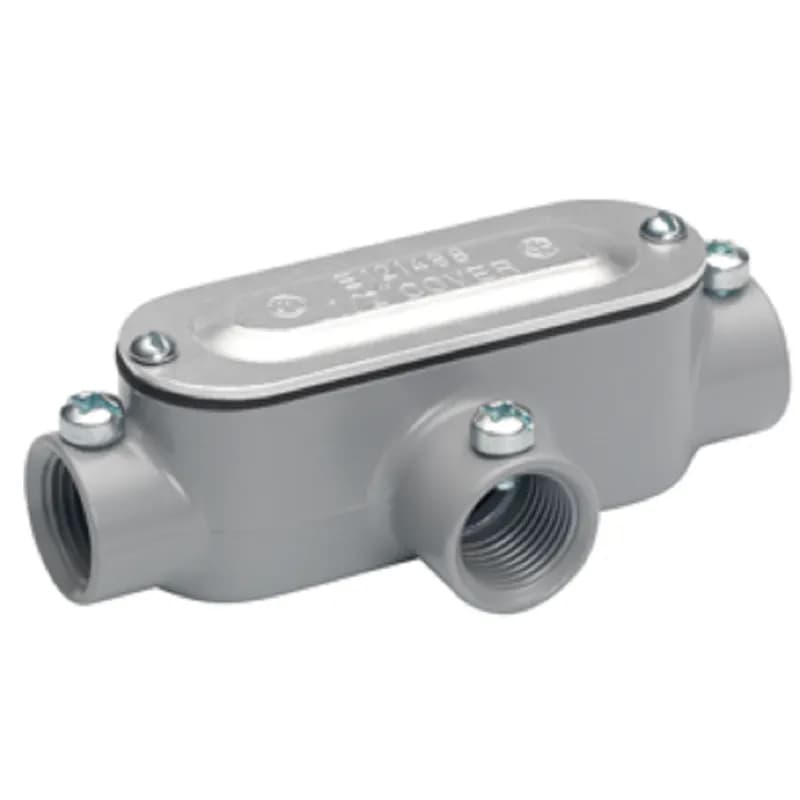

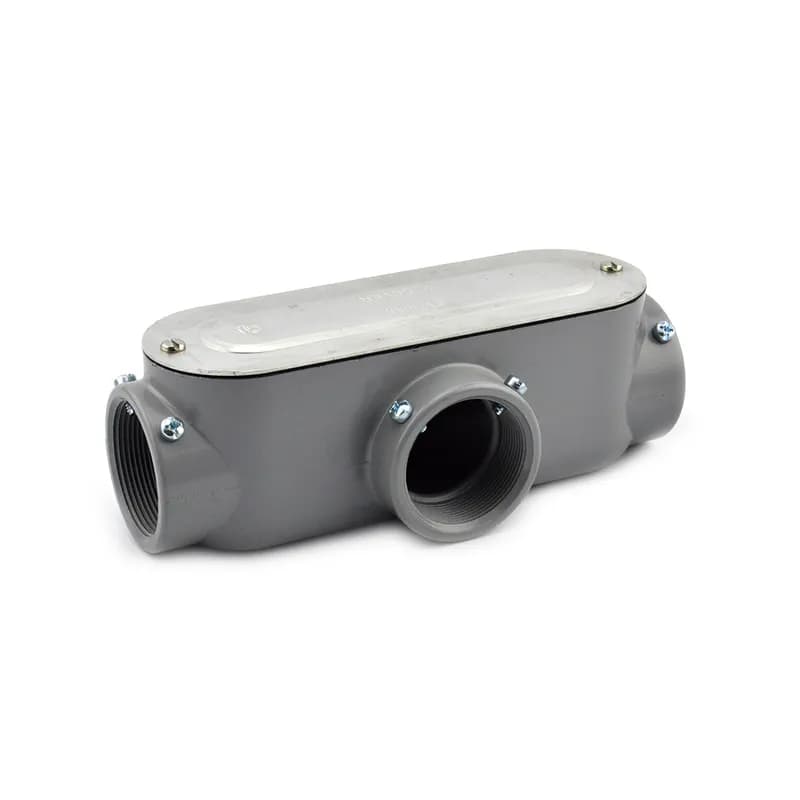

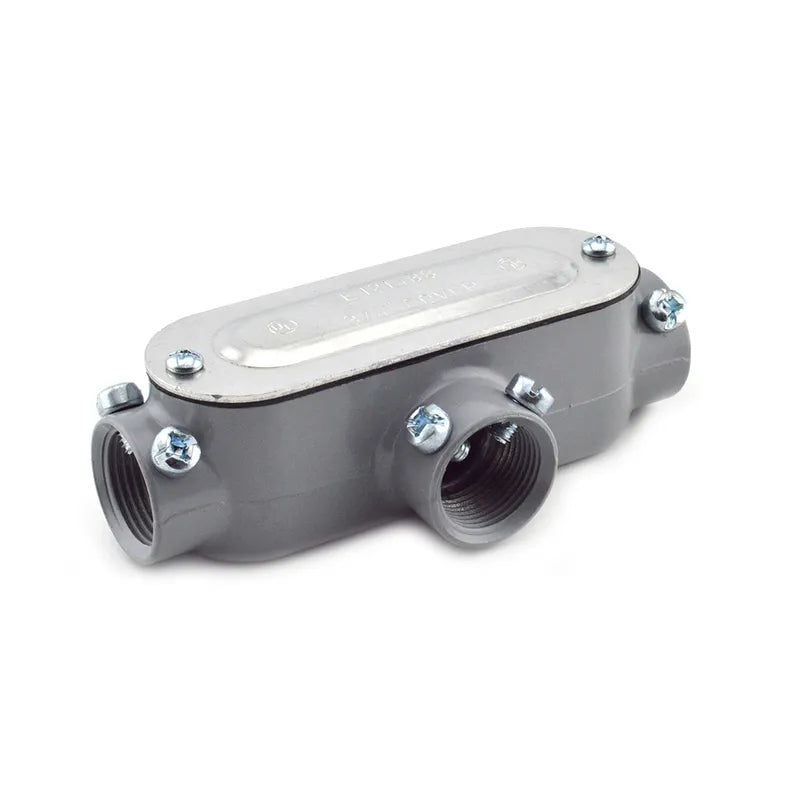

NSI Industries T-42CGC is a copper-free aluminum 3/4 inch Type T combination conduit body designed for EMT and rigid metal conduit systems. It provides a junction point with NPT hub threads, a removable cover and gasket for ordinary indoor locations, and a 9.10 cu. in. wiring volume. Dimensions are approximately 6.20 x 2.00 x 2.60 in and the unit is cULus listed (UL File E11077, UL514A).

• Copper-free aluminum construction for corrosion resistance; compatible with EMT and rigid metal conduit
• NPT hub threads with 3/4 in hub/trade size; includes cover and gasket for ordinary indoor locations
• 9.10 cubic inch wiring volume; dimensions approx. 6.20 x 2.00 x 2.60 in; cULus listed (UL File E11077, UL514A)

Product Highlights

3/4 in Type T combination conduit body with cover and gasket, NPT hubs, 9.10 cu. in. capacity, cULus listed

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: T-42CGC

Technical Specifications

• Brand: NSI Industries
• MPN: T-42CGC
• Model / Series: T-42CGC
• Manufacturer: NSI Industries
• Conduit Body Type: T
• Application: Type T combination EMT/rigid conduit body with cover and gasket
• Connection Type: NPT hub threads
• Hub Size: 3/4 in (0.75 in)
• Trade Size: 3/4 in
• Material: Copper-free aluminum
• Volume Capacity: 9.10 cu. in.
• Dimensions: Approximately 6.20 in x 2.00 in x 2.60 in
• Weight: 0.455 lb (approx)
• Standards / Certifications: cULus (UL File Number E11077, UL Standard UL514A)
• UPC: 781747050427
• Conduit Compatibility: EMT and rigid metal conduit (RMC)
