Nsi Industries SRL240 Rollout Limit Thermostat 120/240 VAC

Product Description

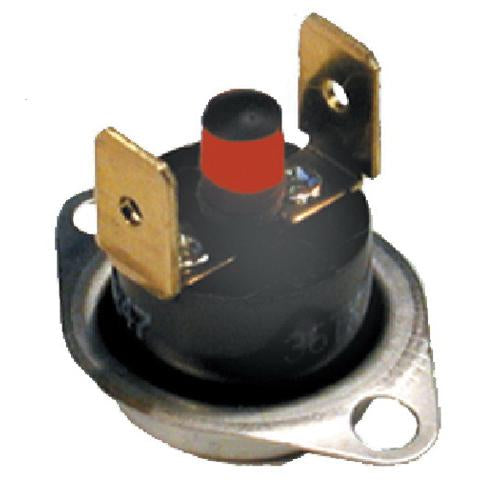

The NSI INDUSTRIES SRL240 Rollout Limit Thermostat is a 1/2 inch bimetal temperature control designed for heating applications. Operating at 120/240 VAC, this SPST switch features a 240 deg F cut-out temperature. It offers reliable temperature regulation with a 3 A full load at 120 VAC and 1.5 A at 240 VAC, and a pilot duty rating of 125 V-A. This thermostat is suitable for various heating systems.

• Proven reliability in a compact, versatile, cost-effective design.
• Broad temperature range suitable for most heating applications.
• Features a 1/4 inch vertical terminal and 350 deg F maximum ambient temperature.

Product Highlights

Reliable bimetal temperature control with SPST switch for heating systems.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SRL240

Technical Specifications

• Amperage Rating: 3 A at 120 VAC and 1.5 A at 240 VAC Full Load, 12 A at 120 VAC and 6 A at 240 VAC Locked Rotor Inductive, 15 A at 120 VAC and 10 A at 240 VAC Resistive
• Material: Bi-Metal
• Pilot Duty Rating: 125 V-A at 120 and 240 VAC
• Series: SRL
• Switch Type: SPST
• Temperature Rating: 240 deg F Cut-Out
• Voltage Rating: 120/240 VAC
