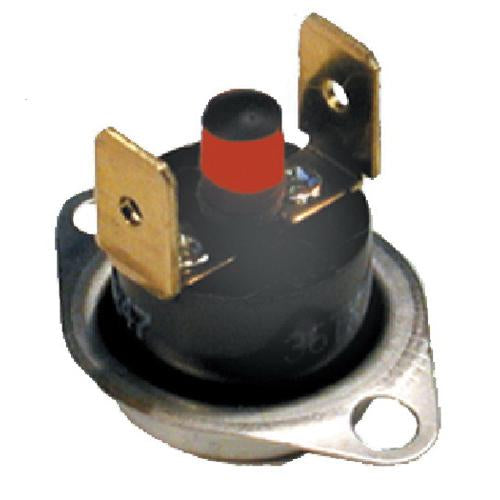

Nsi Industries SRL230 Rollout Limit Thermostat 120/240 VAC

Product Description

The NSI INDUSTRIES SRL230 Rollout Limit Thermostat is a bimetal temperature control designed for heating applications. This SPST switch operates at 120/240 VAC, featuring a 230 deg F cut-out temperature. It handles a resistive amperage of 15 A at 120 VAC and 10 A at 240 VAC, with a pilot duty rating of 125 V-A. Its compact design ensures reliable temperature regulation for various systems.

• Reliable 1/2 inch bimetal temperature control for various heating applications.
• Broad temperature range suitable for diverse heating system requirements.
• Equipped with a 1/4 inch vertical terminal for easy installation.

Product Highlights

Compact and versatile bimetal thermostat with a 230 deg F cut-out for heating systems.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SRL230

Technical Specifications

• Amperage Rating: 3 A at 120 VAC and 1.5 A at 240 VAC Full Load, 12 A at 120 VAC and 6 A at 240 VAC Locked Rotor Inductive, 15 A at 120 VAC and 10 A at 240 VAC Resistive
• Material: Bi-Metal
• Pilot Duty Rating: 125 V-A at 120 and 240 VAC
• Series: SRL
• Switch Type: SPST
• Cut-Out Temperature: 230 deg F
• Voltage Rating: 120/240 VAC
• Maximum Ambient Temperature: 350 deg F
