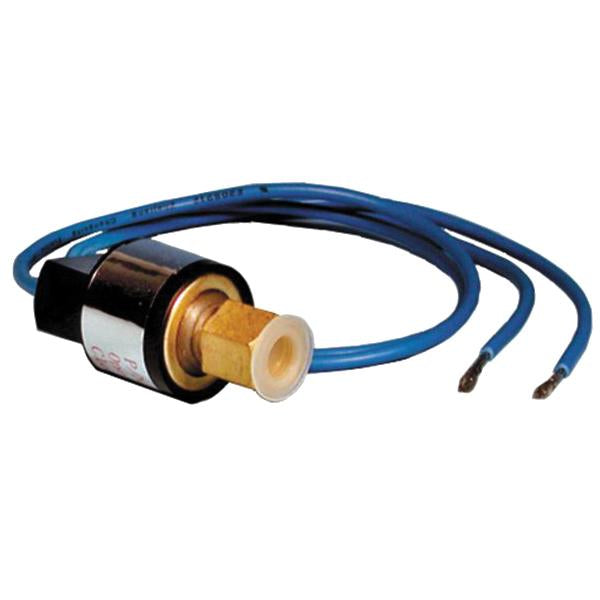

Nsi Industries SLP5090 pressure switch open 50; close 90 +/-5psi

Product Description

The NSI INDUSTRIES SLP5090 is a pressure switch designed to operate within specific pressure thresholds. This SPST switch opens at 50 PSI and closes at 90 PSI, maintaining a tolerance of +/-5 PSI. Constructed from stainless steel, it is suitable for various applications requiring precise pressure control. It supports 24/120/240 VAC voltage and operates at 50/60 Hz.

• Opens at 50 PSI
• Closes at 90 PSI
• Tolerance of +/-5 PSI

Product Highlights

Precisely controls pressure, opening at 50 PSI and closing at 90 PSI with a +/-5 PSI tolerance.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SLP5090

Technical Specifications

• MPN: SLP5090
• Brand: NSI INDUSTRIES
• Amperage Rating: 10 A at 12 to 28 VAC/VDC, 5 A at 48 VAC/VDC, 5.8 A at 110 to 120 VAC/VDC, 2.9 A at 208 to 240 VAC/VDC Rated Load, 36 A Locked Rotor
• Connection Type: 1/4 in SAE Female Flared with Valve Core Depressor, 18 AWG 18 in Lead Wire
• Contact Configuration: SPST
• Frequency Rating: 50/60 Hz
• Material: Stainless Steel
• Mounting Type: Direct
• Pressure Rating: 50 lb/sq-in Open, 90 lb/sq-in Close, 0 to 650 lb/sq-in Working, 5000 lb/sq-in Burst
• Series: SLP Series
• Switching Action: Snap
• Temperature Rating: -31 to 248 deg F Ambient, 60 to 250 deg F Fluid
• Voltage Rating: 24/120/240 VAC
