Nsi Industries SKCB-2 Direct Burial Copper Butt Splice Kit #8 to #2 AWG

Product Description

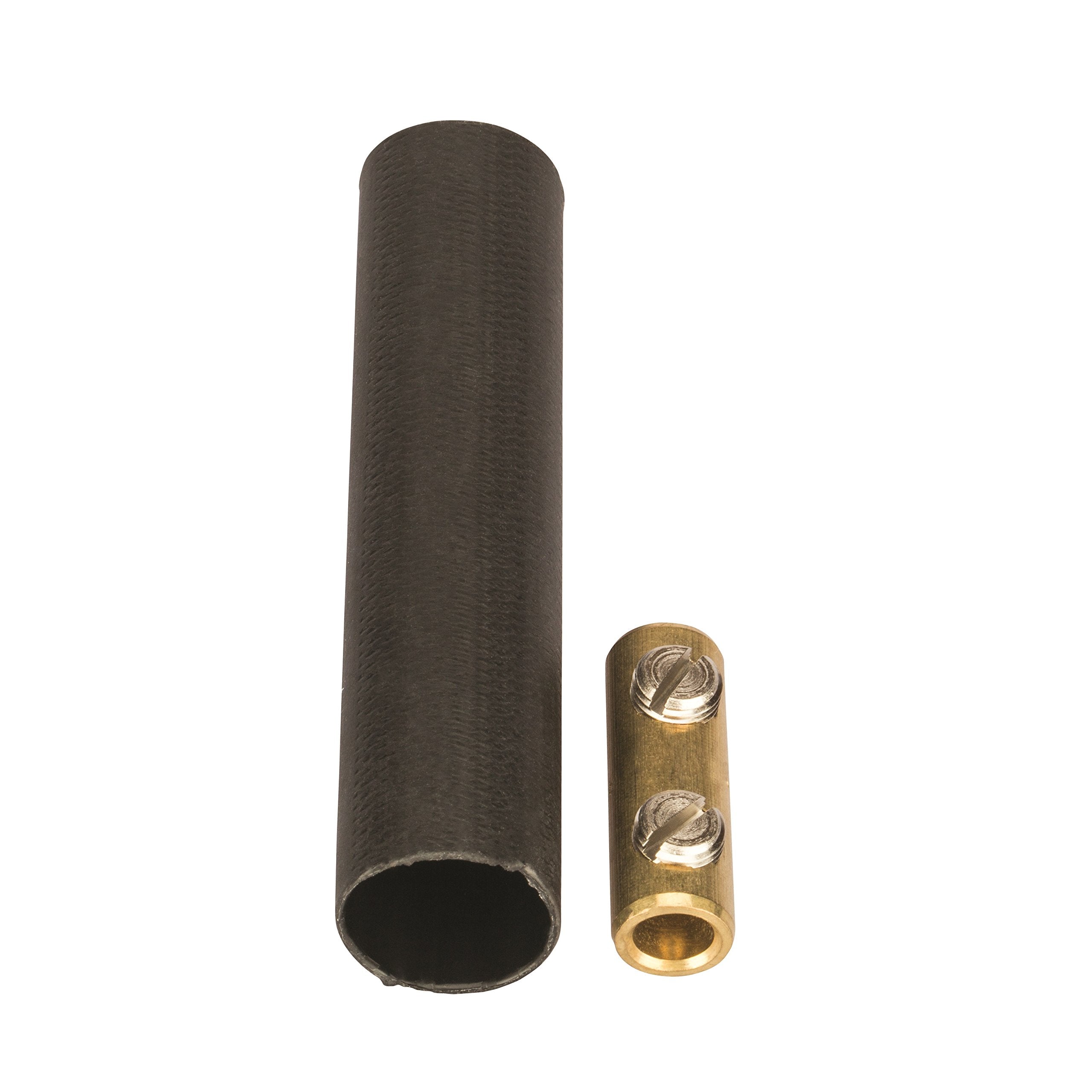

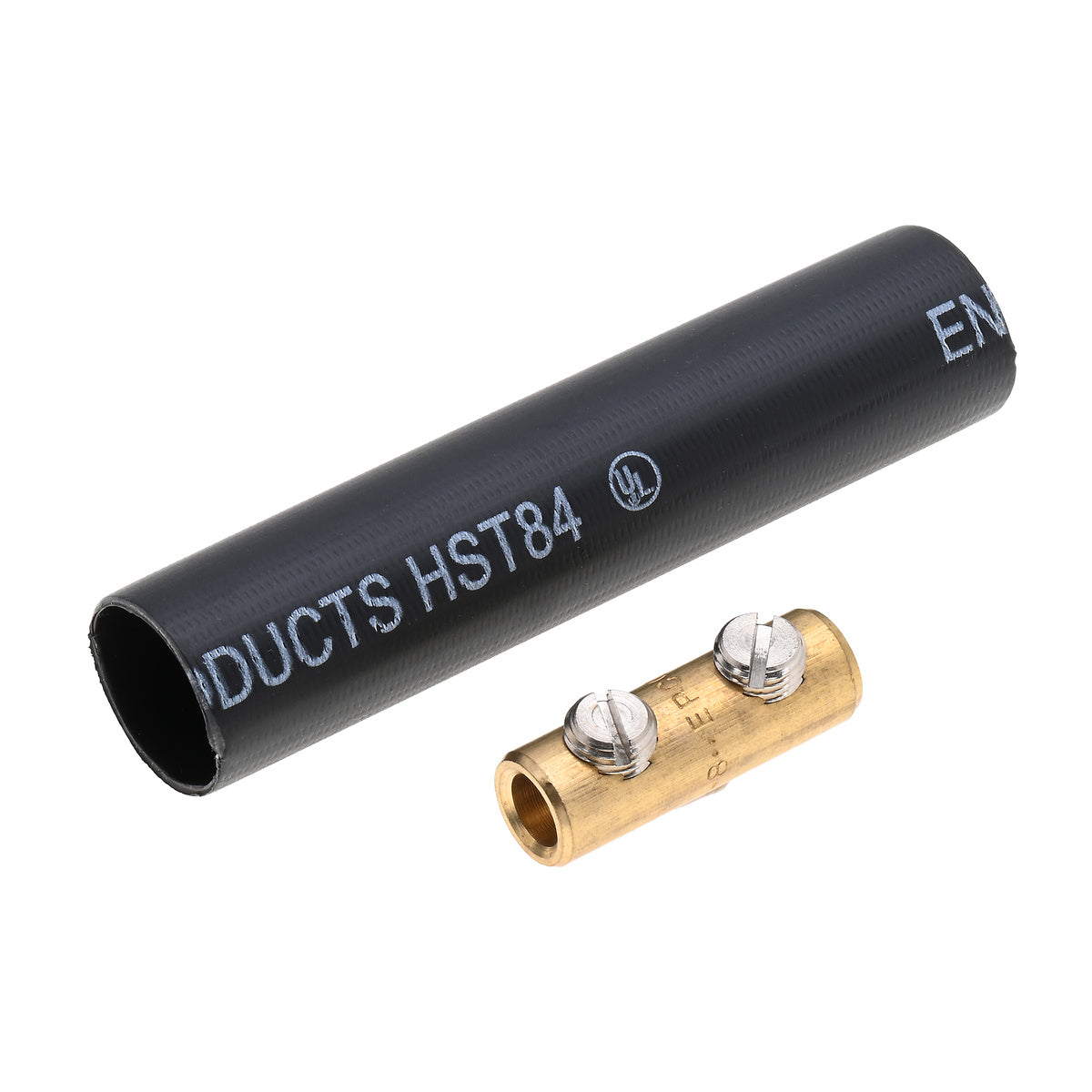

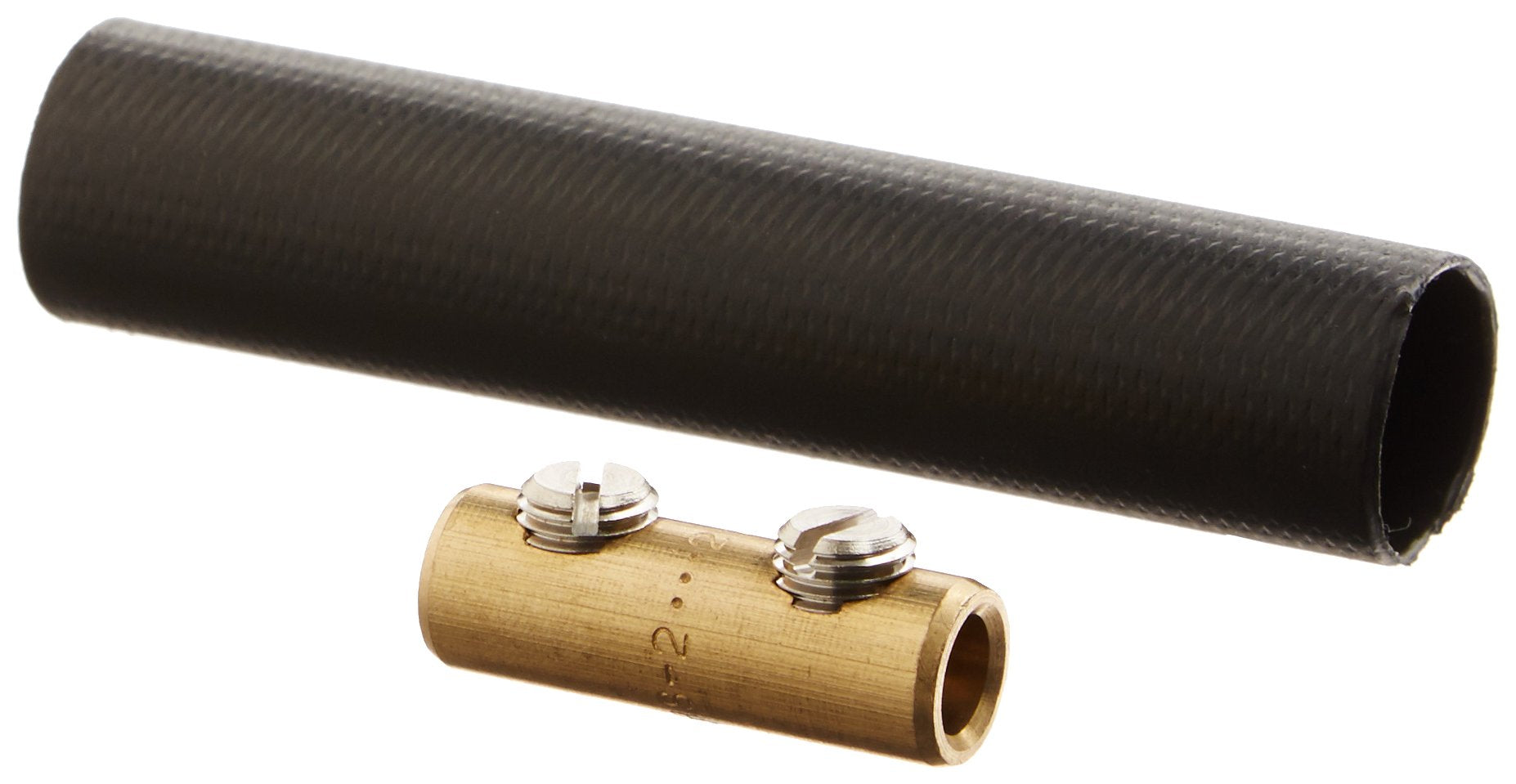

The NSI INDUSTRIES SKCB-2 is a direct burial copper butt splice kit with heat shrink, designed for copper conductors only. It utilizes a mechanical copper butt splice and heavy wall heat shrink tubing to create a fully insulated splice. Rated for a maximum of 600 volts, it is UL listed.

• Utilizing a mechanical copper butt splice and a heavy wall heat shrink tubing to create a fully insulated splice
• For copper conductors only
• 600 Volt maximum

Product Highlights

This copper butt splice kit provides a reliable, insulated connection for direct burial applications, ensuring long-lasting performance and safety.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SKCB-2
• Country of Origin: United States

Technical Specifications

• Brand: NSI
• Manufacturer: NSi Industries
• Model / MPN: SKCB-2
• MPN: SKCB-2
• Size: #8 to #2 AWG
• Number of Items: 1.0
• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Product Group: BISS
• Temperature Rating: 105 degrees C
• Voltage: 600 Volt Maximum
• Wire Size: #8 to #2 AWG
• Material: Copper
• Voltage Rating: 600 V
• Wire Cable Class: Class A, Class B
• Wire Range: #8 to #2 AWG
• Cable Size: 8-2 AWG
• Cable Type: Class A-B
• Conductor Size: 8-2 AWG
• Insulation Material: Heat Shrink
• Number of Wires: 2 Wire
• Operating Temperature: -40 To 90 degrees C
• Type: Copper Butt Splice Kit
• PRODUCT CATEGORY: Gel Splice Kits
• PRODUCT FEATURE 1: Mechanical copper butt splice and a heavy wall heat shrink tubing to create a fully insulated splice for copper conductors only
• PRODUCT FEATURE 2: UL Listed
• PRODUCT FEATURE 3: #8 to #2 AWG Wire Range
• PRODUCT GROUP: Insulating and Splicing
• PRODUCT GROUP SUB-BRAND: Easy-Splice
• PRODUCT NUMBER: SKCB-2
• Product Series: SK Series
• SKU: SKCB-2
