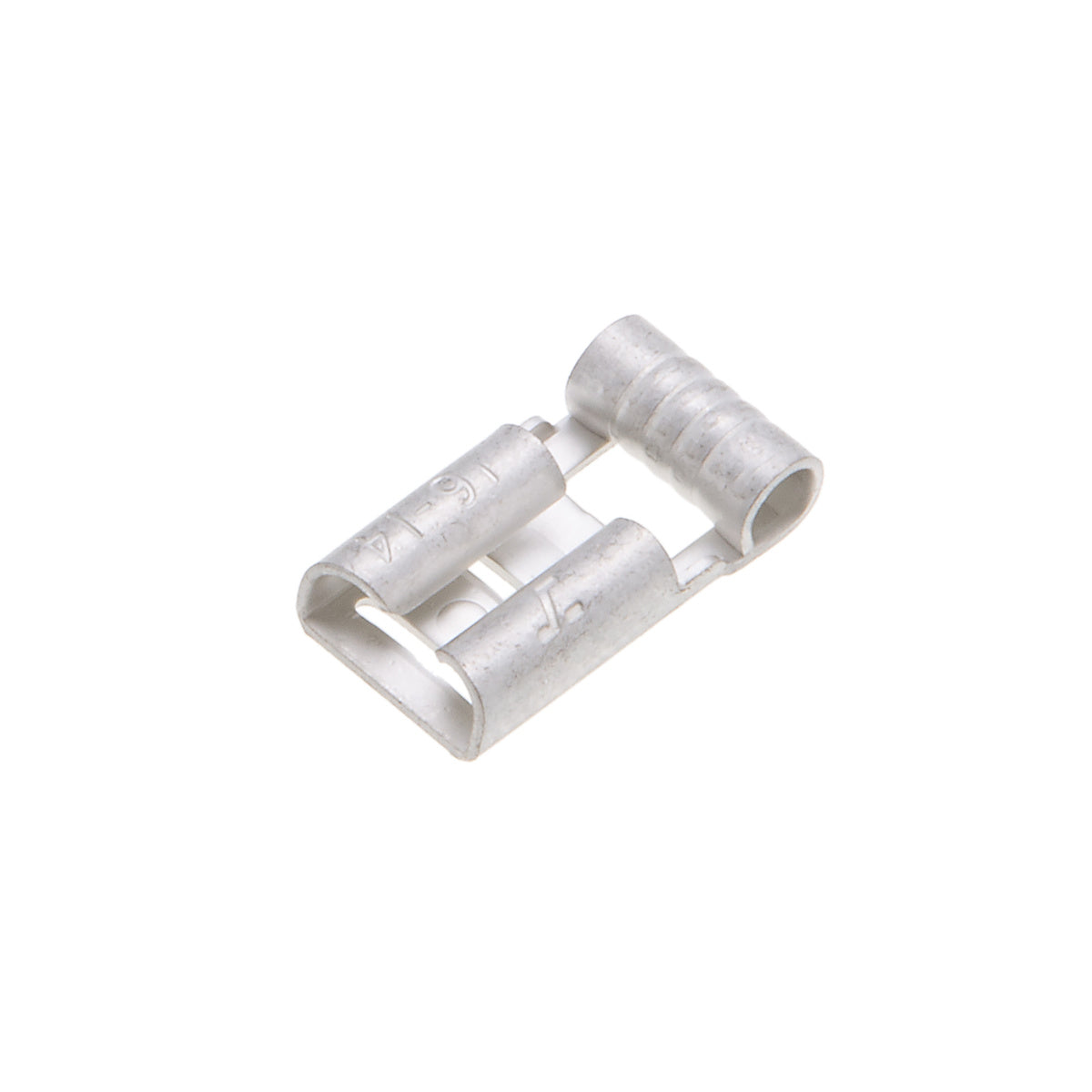

NSI Industries SF16-250-3-S Wire Terminal Female Flag Bare 16-14 Awg .250 X .032

Product Description

NSI Industries offers the MPN SF16-250-3-S, a wire terminal designed for efficient connection and termination of conductors. This female flag terminal is suitable for use with sixteen to fourteen AWG wire, featuring a tab size of zero point twenty-five inches by zero point zero thirty-two inches. It is ideal for various electrical applications that require reliability and safety.

• Non-insulated design with turned-up edges.
• Rated for six hundred volts and temperature up to one hundred five degrees Celsius.
• Manufactured from copper with an electro-plated tin finish for enhanced conductivity.

Product Highlights

This wire terminal is perfect for wire termination applications, ensuring secure connections while maintaining high electrical performance.

Product Information

Standard Information

• Manufacturer: NSI INDUSTRIES INC
• Series: SF Series

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Tab Size: 0.25 x 0.032 in
• Dimensions: 0.539 in L x 0.312 in W
• Finish: Electro-Plated Tin
• Insulated: Non-Insulated
• Voltage Rating: 600 V
• Temperature Rating: 105 deg C
