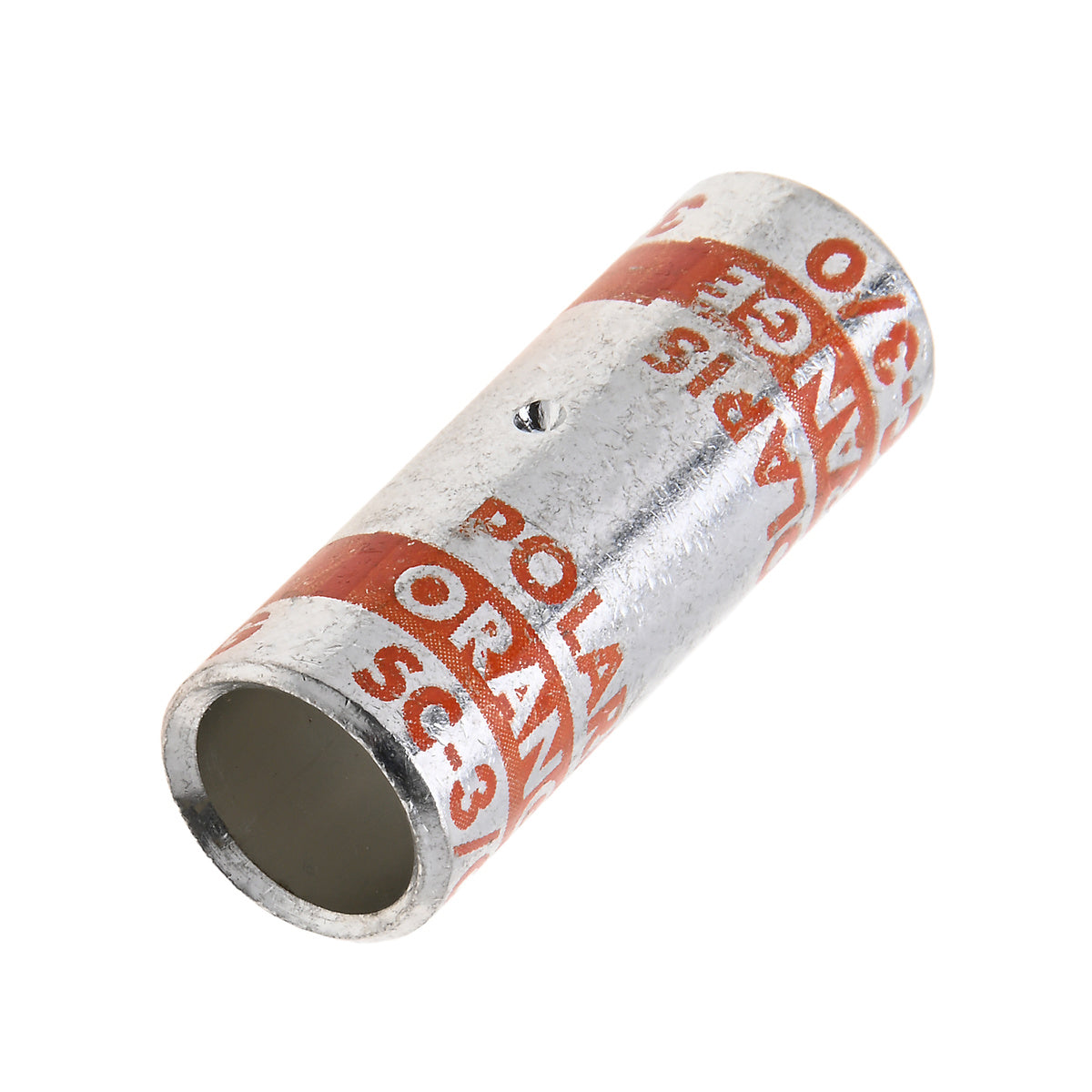

Nsi Industries SC-3/0 3/0 AWG Copper Short Barrel Splice (Pack of 25)

Product Description

The NSI INDUSTRIES SC-3/0 is a 3/0 AWG copper short barrel splice designed for creating permanent, vibration-resistant connections. It is suitable for power distribution, grounding, and data transmission applications. The splice features high conductivity copper tubing with a corrosion-resistant tin-plated finish. Serrations indicate proper crimp locations, and the unit is marked with a die index and color coded.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Serrations indicate proper crimp locations
• Marked with die index and color coded

Product Highlights

This copper compression splice is UL486A Listed and suitable for use up to 35kV when properly installed.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SC-3/0

Technical Specifications

• Voltage Rating: 600V
• Material: Copper
• Finish: Tin Plated
• Pack Qty: 25
• Ul Standard: UL 486A, UL 467
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Wire Range: 3/0 AWG
• Assortment: Copper Compression Splices
• Die Color Code: Orange
• Barrel Length: 1.75
