Nsi Industries SC-250 Cu Cmp Splice Short 250 MCM

Product Description

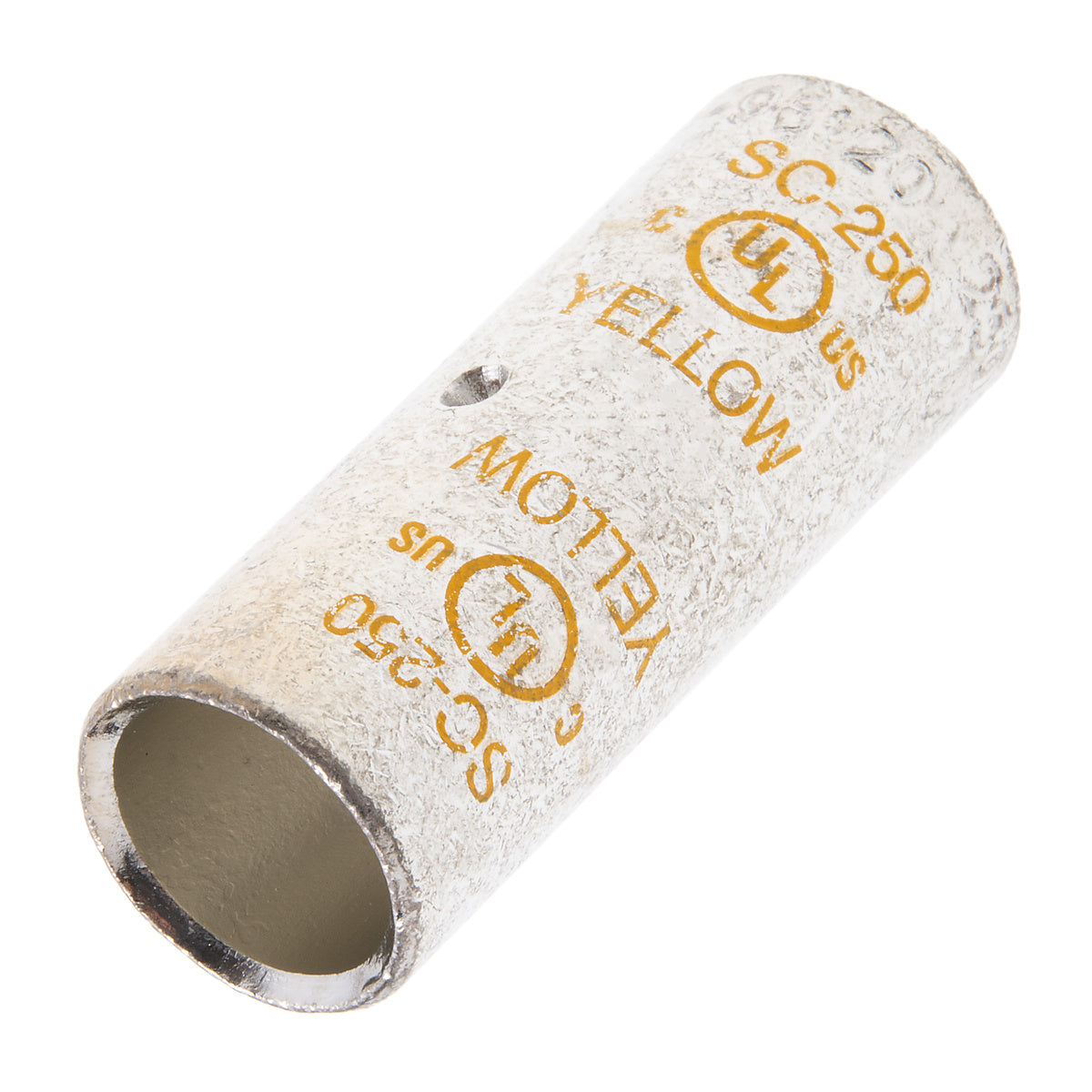

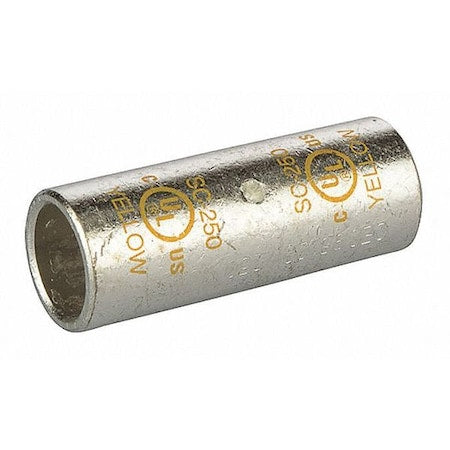

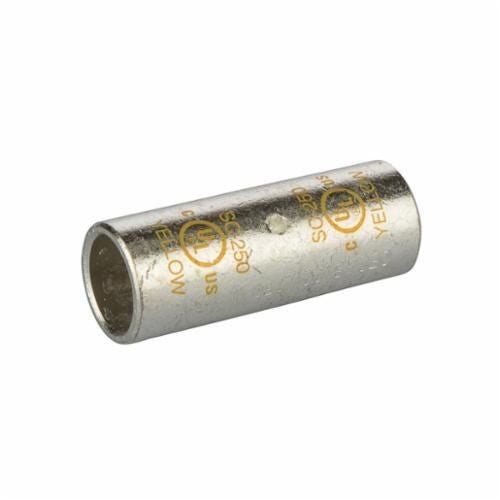

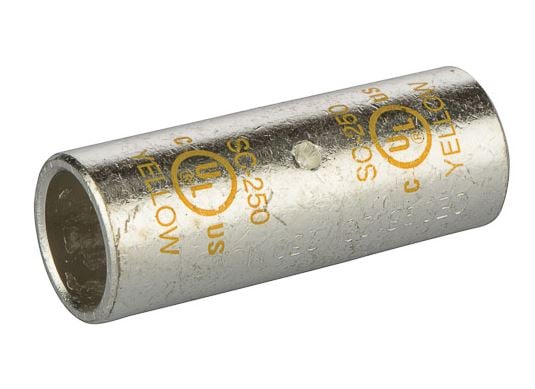

The NSI INDUSTRIES SC-250 is a copper compression splice designed for creating permanent, vibration-resistant connections with low contact resistance. It is suitable for power distribution, grounding, and data transmission applications. The splice is constructed from high conductivity copper tubing with a corrosion-resistant tin-plated finish and marked with a die index and color code.

• Made from high conductivity copper tubing
• Features serrations to indicate proper crimp locations
• Tin-plated for corrosion resistance

Product Highlights

This copper compression splice ensures a reliable connection for various electrical applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SC-250
• Country of Origin: India

Technical Specifications

• Item [Specifications]: Compression Splice Short,Copper,250 MCM
• Voltage Rating: 600 VAC
• Material: Copper
• Finish: Tin Plated
• Pack Qty: 25
• UPC: 662381037107
• Ul Standard: UL 486A
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded Copper
• Wire Range: 250 MCM
• Assortment: Copper Compression Splices
• Expanded Wire Range: 250 MCM ">– 1/0 AWG
• Die Color Code: Yellow
• Barrel Length: 2
• Length: 2 in
• Barrel Type: Short
• Color: Yellow
• Temperature Rating: 90 deg C
• Type: Dual Rated
• Application: For Splice, Terminate, Tap Power Connectors
• Standard & Approvals: UL486 Listed
• Conductor Size: 250 MCM
• Catalog ID: NSISC-250
• Barrel Size: 0.59 in ID x 0.75 in OD
