Product Description

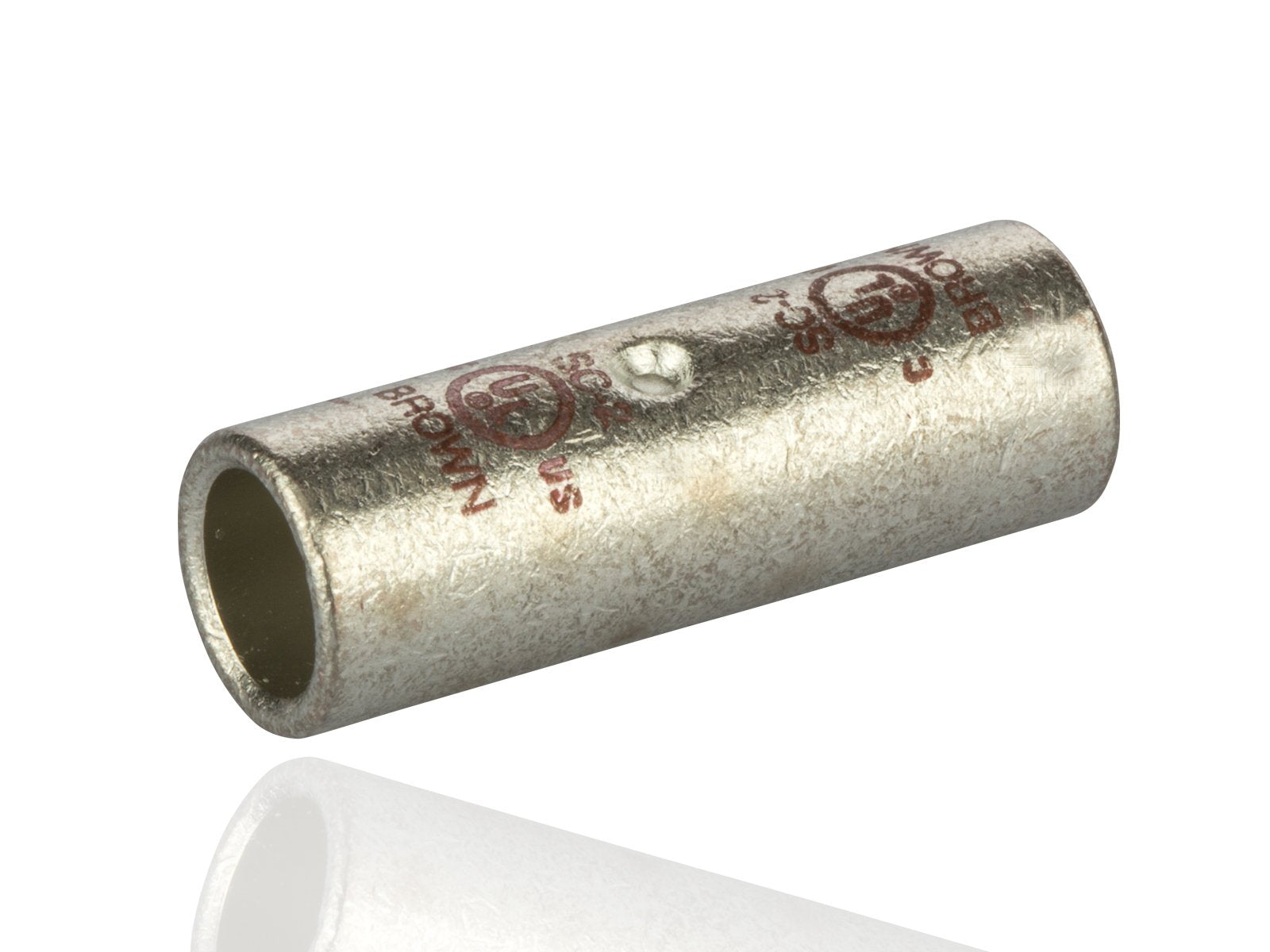

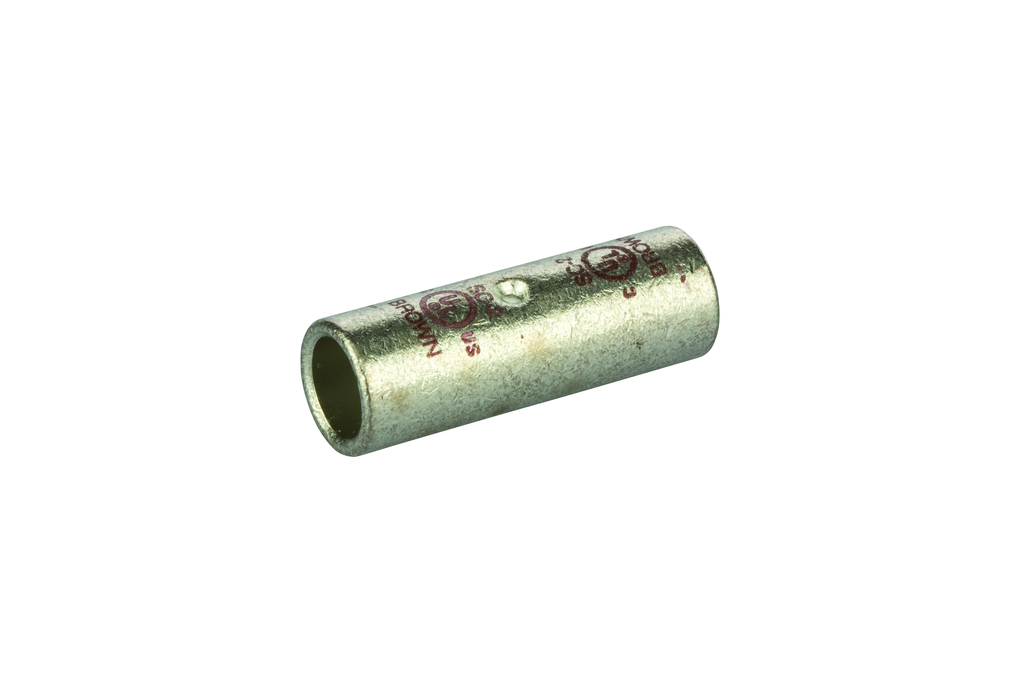

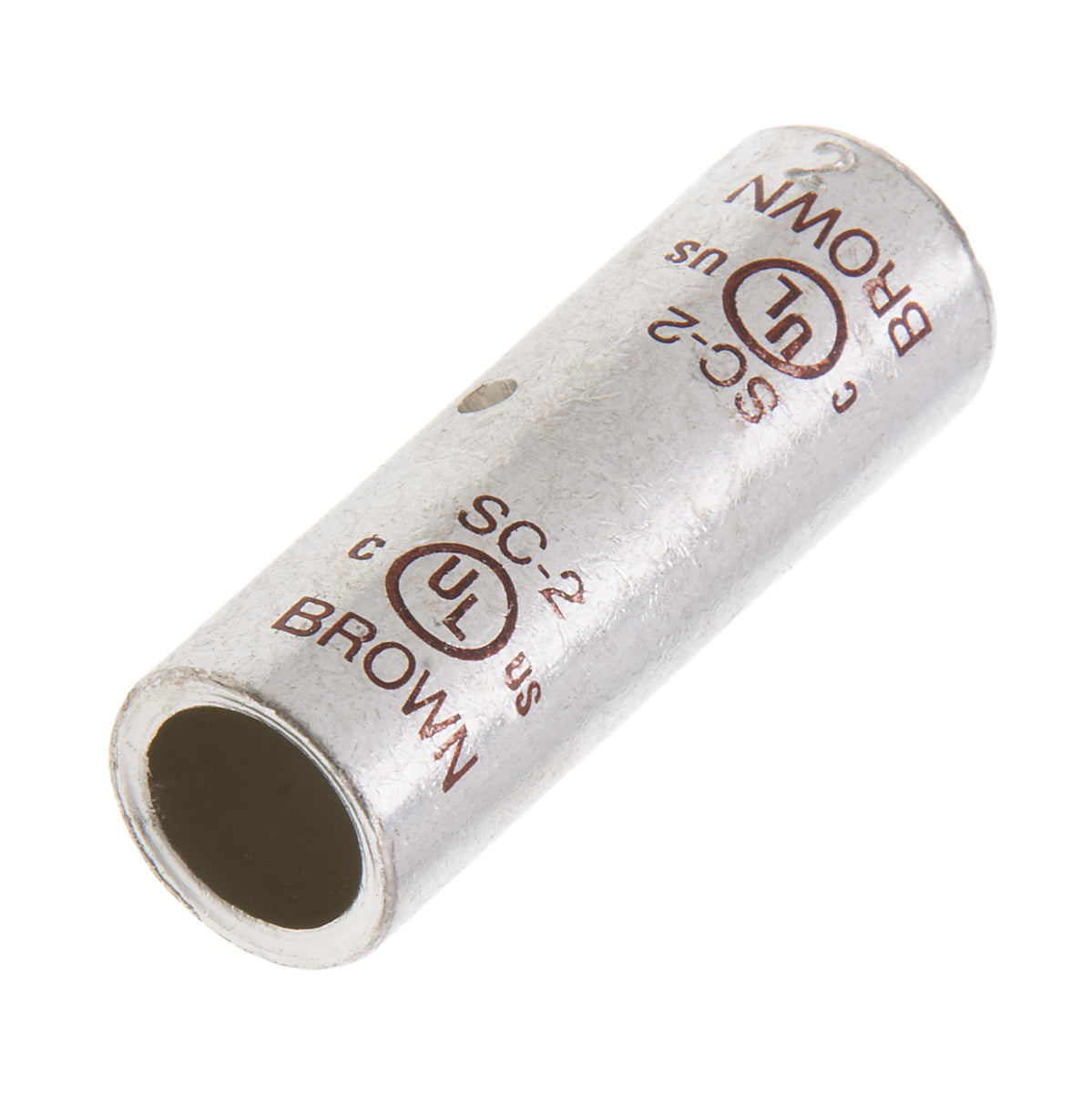

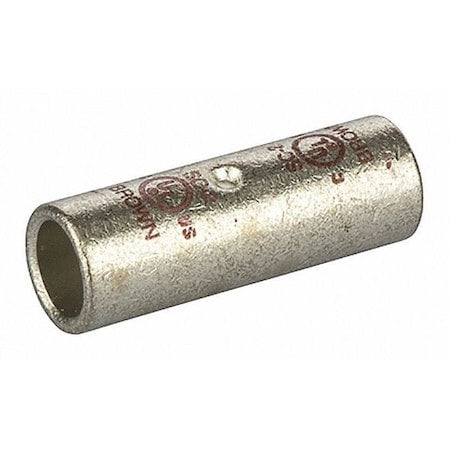

The NSI INDUSTRIES SC-2 is a standard barrel tinned copper splice designed for 2 AWG conductors. It is suitable for indoor and outdoor applications and has a voltage rating of 600V. The splice is made from high conductivity copper tubing and is tin-plated for corrosion resistance. Serrations indicate proper crimp locations, and it is marked with a die index and color code for easy reference.
- Produced from high conductivity copper tubing
- Serrations indicate proper crimp locations
- Tin-plated to provide corrosion resistance
Product Highlights
Ideal for terminating, splicing and tapping power connectors. It is UL486A Listed and cULus Listed 155027.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: SC-2
-
Country of Origin: India
Technical Specifications
-
Conductor Size: 2 AWG
-
Termination/Splice: SPLICE
-
Indoor/Outdoor: INDOOR/OUTDOOR
-
Voltage: 600V
-
UNSPSC Code: 39121400
-
Size: L=1.25 - OD=.420 - ID=.310
-
Type: Short Barrel - CU Splice
-
Brand: NSI Industries
-
Width: 0.42 in
-
Finish: Tin Plated
-
Height: 0.42 Inch
-
Length: 1-1/4 Inch
-
Material: Copper
-
Sub Brand: Copper Compression
-
Product UPC: 66238103704
-
12-Digit UPC: 662381037046
-
Applications: Terminate, Splice, Tap Power Connectors
-
Max Temperature: 194 degrees F
-
Number of Poles: 1 Pole
-
Country of Origin: India
-
Number of Conductors: 2
-
Environmental Conditions: 90 degrees C
-
Model / MPN: SC-2
-
Barrel Size: 0.31 in ID x 0.42 in OD
-
Barrel Type: Short
-
Catalog ID: NSISC-2
-
Conductor Type: Stranded Copper
-
Temperature Rating: 90 deg C
-
Application: For Splice, Terminate, Tap Power Connectors
-
Standard & Approvals: UL486 Listed
-
Wire Cable Class: Class B, Class C
-
Wire Range: 2 AWG
-
Assortment: Copper Compression Splices
-
Expanded Wire Range: 2 AWG-6 AWG
-
Die Color Code: Brown
-
Barrel Length: 1.25
-
Voltage Rating: 600 VAC
