Nsi Industries SB1810-B Crimp Sleeve Wire Connector 18 to 10 AWG

Product Description

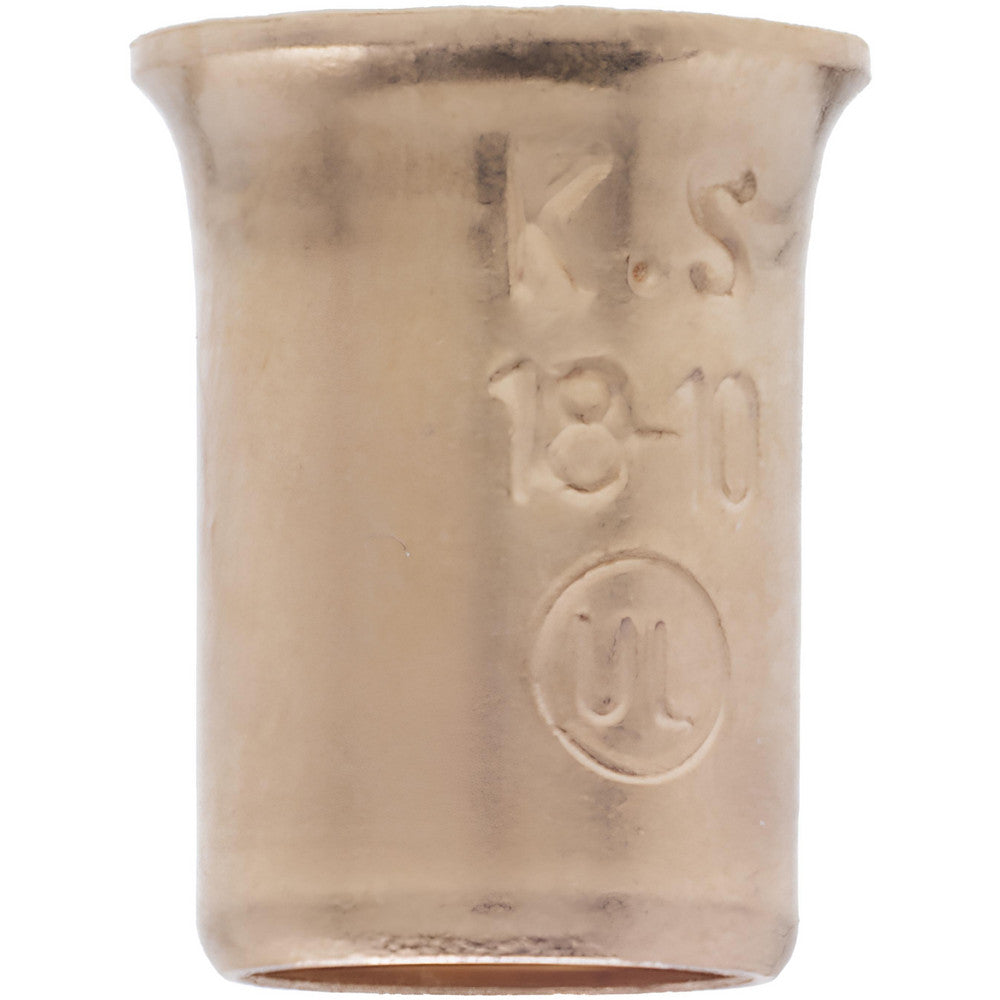

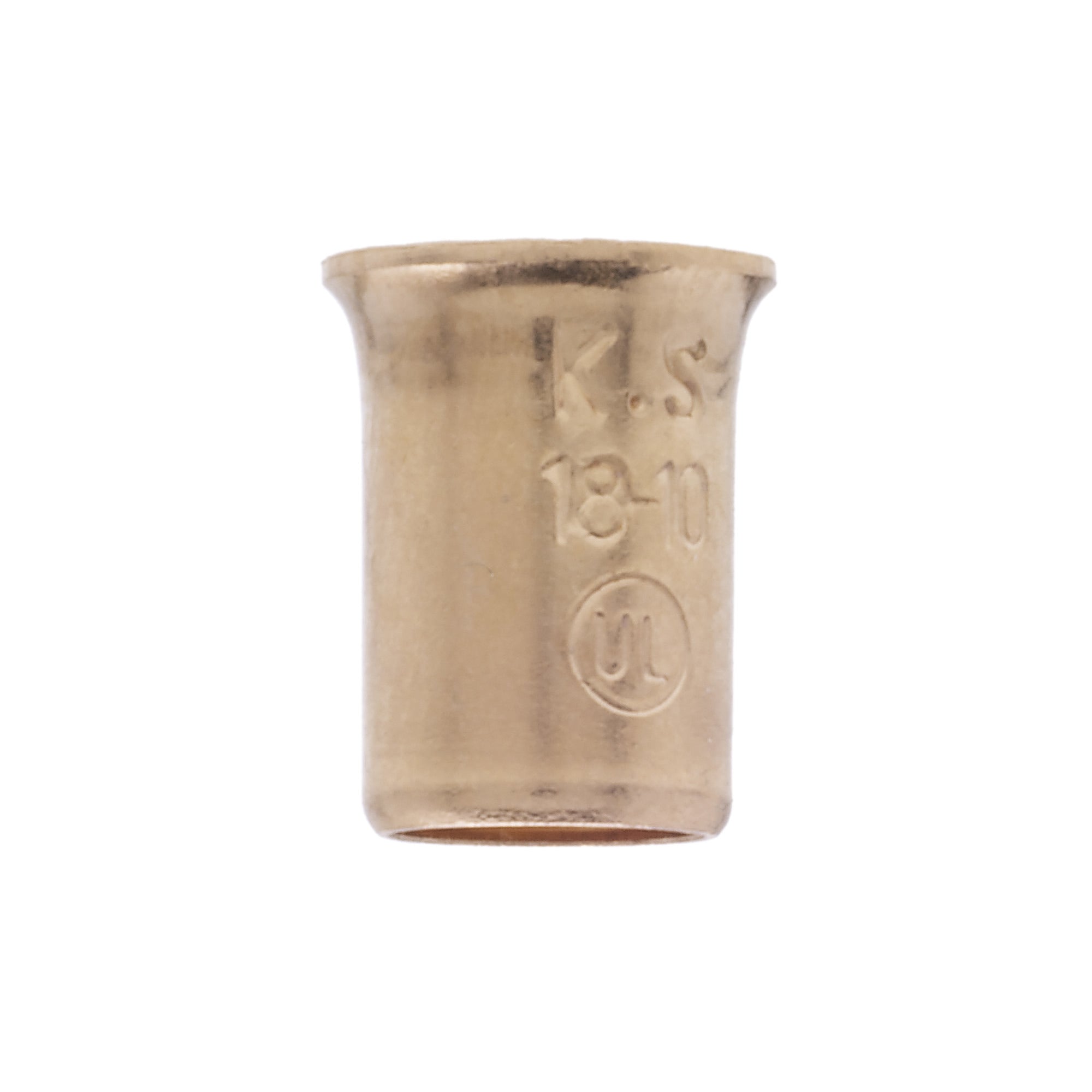

The NSI INDUSTRIES SB1810-B crimp sleeve wire connectors are designed for use on wires in the 18-10 AWG size range. These copper crimp sleeves are suited for branch circuitry and applications subject to vibration. They form low-resistance connections in tight spaces and install using a crimp tool or pliers.

• Designed for easy installation and provide an exceptional connection
• Vibration Resistant Copper crimp sleeves excel in applications that require a permanent vibration-resistant connection
• Low-Resistance Connection Copper crimp sleeves provide an economic and low-resistance way to connect wires

Product Highlights

These copper crimp sleeves provide a low-resistance connection and are ideal for electrical connections from bonding ground wires to branch circuit wiring.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SB1810-B
• Country of Origin: TW

Technical Specifications

• Type: Crimp Sleeve Wire Connectors
• Brand: NSI Industries
• Color: Copper
• Finish: Copper
• Voltage: 600 Volt
• Material: Copper
• Standard: UL486C Listed
• Sub Brand: Easy Twist
• Wire Size: 18-10 AWG
• Wire Type: CU Wire Only
• Applications: Splicing Wire
• Conductor Size: 18-10 AWG
• Number of Poles: 1 Pole
• Temperature Rating: 105 degrees C
• Number of Conductors: 1
• Size: L=.374 - W=.240 - ID=.204
• Insulation Type: Non-Insulated
• Connection Type: Crimp
• Pin Length: 0.374 in
• Pin Diameter: 0.204
• Series: SB Series
• Specifications: 1-Conductor, 1-Pole, 0.295 in Maximum Skirt Entry
• Voltage Rating: 600 VAC
• Conductor Type: Stranded
• Length: 0.374 in
• MPN: SB1810-B
• Product Line: Crimp Sleeves
• Product Group: Wire Connectors and Terminals
• Product Category: Wire Terminals
• UPC: 66238136267
• GTIN: 662381362674
• UNSPSC: 39121409
• Wire Range: 18 AWG - 10 AWG
• UL Standard: UL 486C
• UL File #: E155027

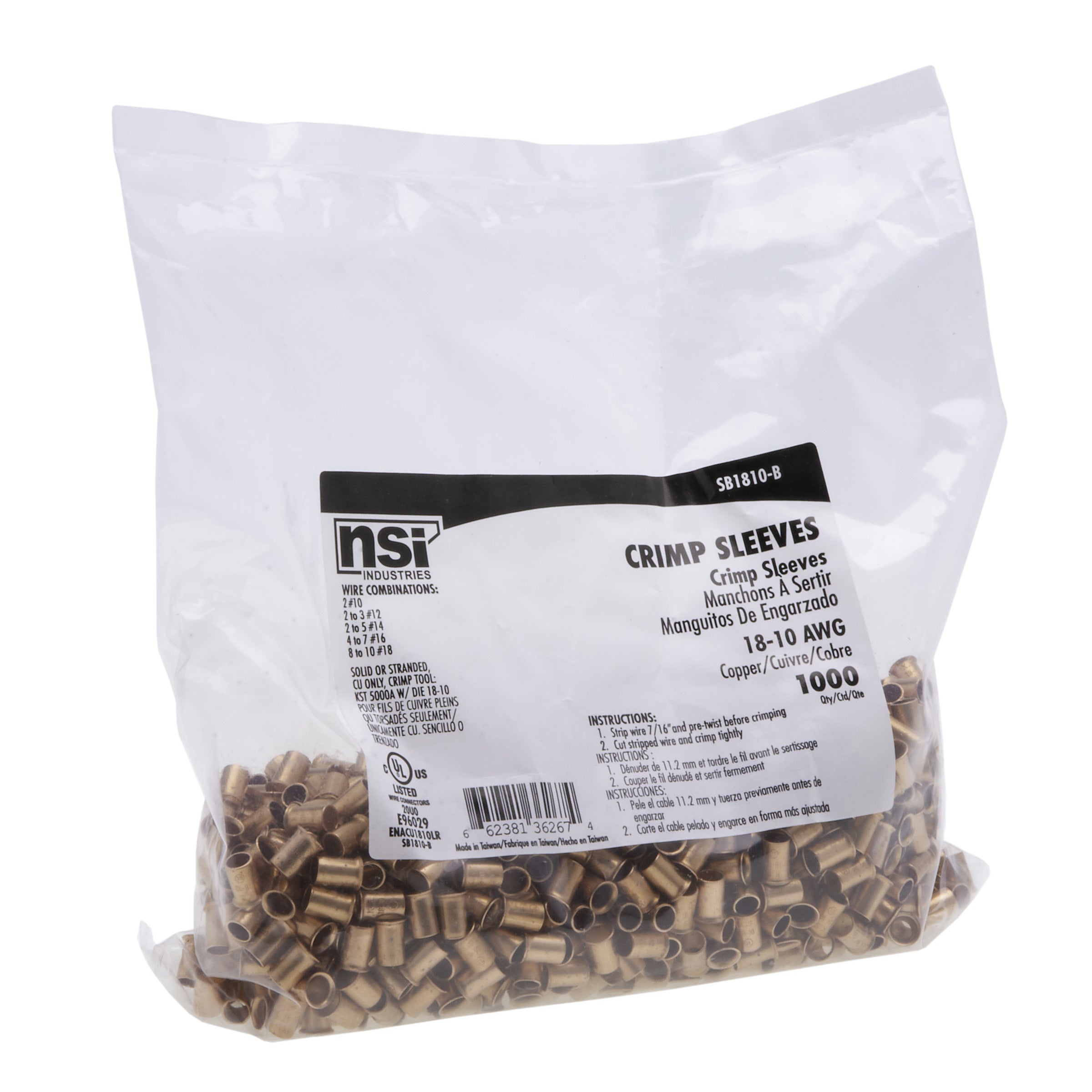

• Pack Quantity: 1000
• Application: Connect wires
• Certifications: CSA; UL Listed; PROP65
• Country of Origin: TW
• Product Width (in): 0.24
